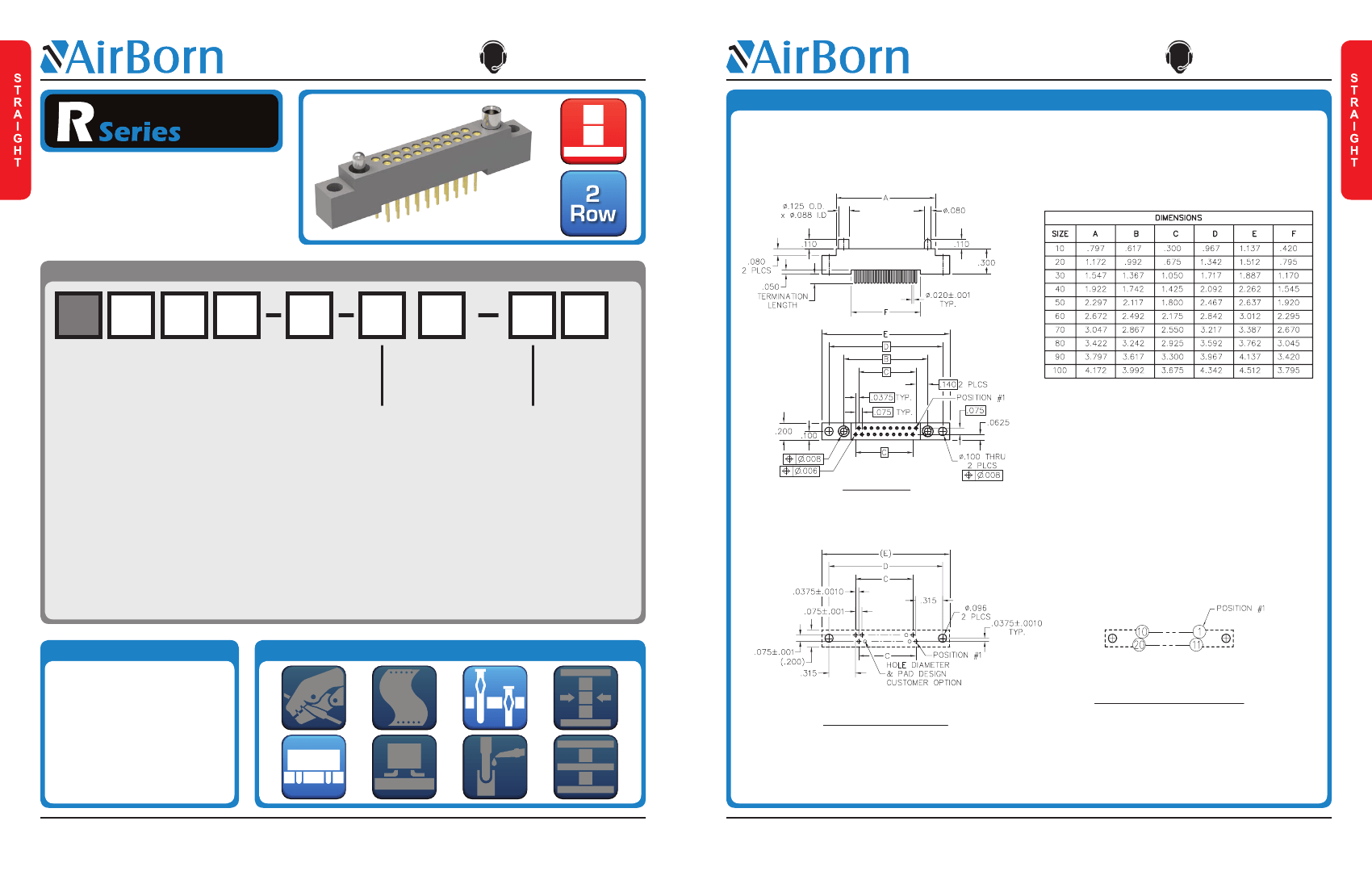

RM – Two-Row, Straight, Board-Mount Receptacle
CONTACT CUSTOMER SERVICE
High-Density
0.075"
(1.905mm)
RM – Two-Row, Straight,
Board-Mount Receptacle
Contact Spacing: 0.075" (1.91 mm)
R-Series products are high-density, plastic
connectors commonly used in board-to-board
applications. Approved to MIL-55302 standard.
Plastic ▪ 2-Row ▪ 10-100 Contacts
Sample Part Number Format: RM222-100-212-5500
RM
SERIES
0.075" Plastic
Rectangular
Connector
(Receptacle)
2
ROWS
2 – 2-Row
(10-100
contacts)
2
STYLE
BODY MATERIAL
2 – Receptacle, 2 – Polyphenylene
straight with
sulfide (PPS)
mounting
ears
4 – Receptacle,
straight
without
mounting
ears
SIZE
010 – 10 contacts
020 – 20 contacts
030 – 30 contacts
040 – 40 contacts
050 – 50 contacts
060 – 60 contacts
070 – 70 contacts
080 – 80 contacts
090 – 90 contacts
100 – 100 contacts
PLATING
1 – Gold
2 – Pre-tinned, SnPb alloy (Plated
thru-hole options, only)‡
3 – Pre-tinned, SAC305 alloy
(Plated thru-hole options, only)
POLARIZATION
00 – None
XX – See page 140
for codes
70 – Same as above,
but without
Loctite®
(customer-
keyed)
TERMINATION
20 – Plated thru-hole, 0.109" x 0.020" Ø
21 – Plated thru-hole, 0.140" x 0.020" Ø
22 – Plated thru-hole, 0.172" x 0.020" Ø
23 – Plated thru-hole, 0.250" x 0.020" Ø
50 – Plated thru-hole, 0.140" x 0.016" Ø
51 – Plated thru-hole, 0.172" x 0.016" Ø
64 – Press-fit, 0.203" (board 0.093 – 0.125” thick)
65 – Press-fit, 0.323" (board 0.156 – 0.200” thick)
66 – Press-fit, 0.403" (board .250” or thicker)
Notes:
‡ Not RoHS-compliant
HARDWARE
0256 – None
55 – Guide set
57 – Two guide pins
58 – Two guide sockets
29 – Fixed jackset
30 – Fixed jackset, reversed
19 – Two fixed jackscrews
20 – Two fixed jacksockets
59 – Hex turning jackset, 0.200"
60 – Hex turning jackset reversed, 0.200"
61 – Two hex turning jackscrews, 0.200"
62 – Two hex turning jacksockets, 0.200"
64 – Turning jackset, 0.490"
RECEPTACLE
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
Mates with
RM212 & RM232 — Two-row, straight plug
RM252 & RM272 — Two-row,
right-angle plug
RM2 — Two-row, I/O plug
Terminations
PCB LAYOUT VIEWED
FROM COMPONENT SIDE
PIN IDENTIFICATION PATTERN
VIEWED FROM TERMINATION SIDE
(EXAMPLE: 20 POSITION CONNECTOR)
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
RM222-PNB-1
(CTR501, REV. 2)
