16_QN-50-3-3/13-_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 16_QN-50-3-3/13-_NE

Preview

16_QN-50-3-3/13-_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size117KB，2 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

16_QN-50-3-3/13-_NE Overview

RF Connector/Coaxial Connector

16_QN-50-3-3/13-_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	VSWR MAX AT 8 GHZ
subject depth	1.094 inch
Body diameter	0.744 inch
Body/casing type	PLUG
Cable type	MULTIFLEX_141
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.26 inch
Termination type	SOLDER
Total number of contacts	1
voltage standing wave ratio	1.67
Base Number Matches	1

Preview

Download Datasheet

View All

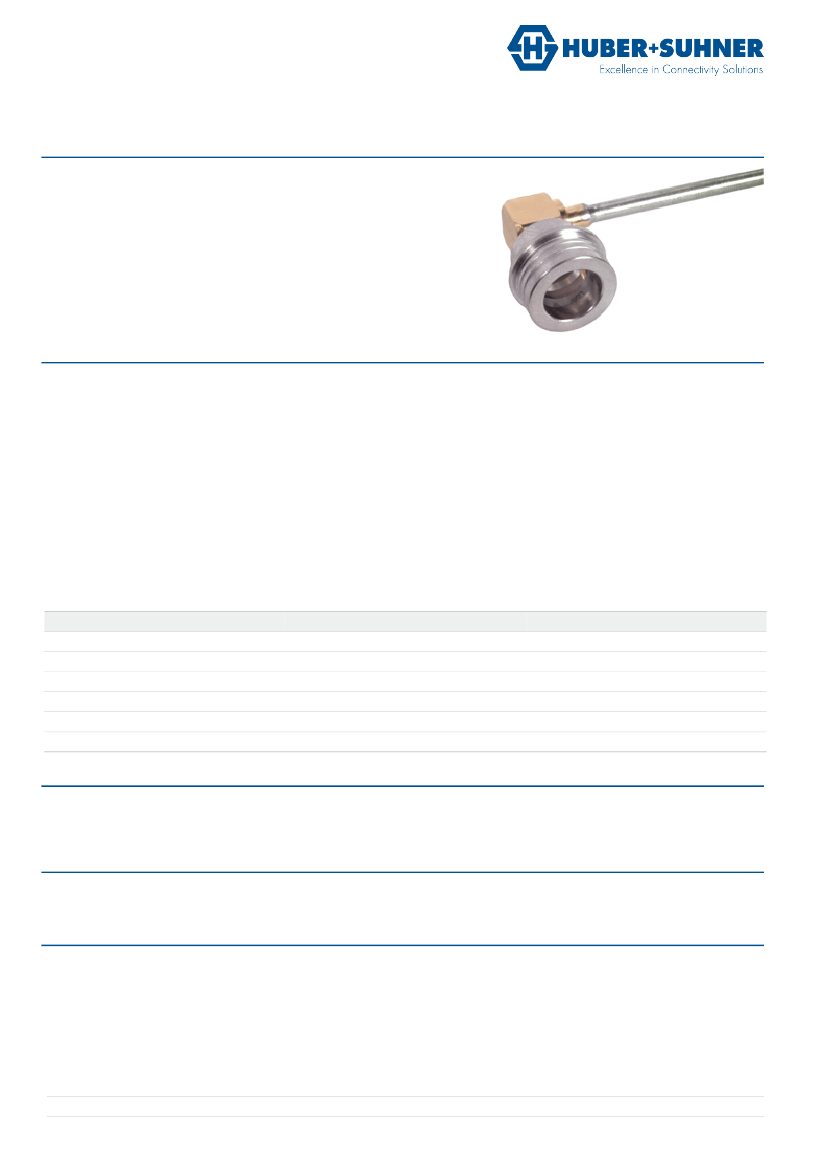

Data Sheet

Coaxial Cable Connector

16_QN-50-3-3/13-_N

Description

Right angle cable plug

Interface standards

QN QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

50 Ω

11 GHz

DC to 1 GHz

24 dB

1 to 6 GHz

20 dB

6 to 8 GHz

12 dB

Mechanical Data

Centre contact

Outer contact

Weight

soldered

0.019 kg

Environmental Data

Operating temperature

2011/65/EU, RoHS

-40 °C to 125 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Brass

PFA / PTFE

Brass

EPDM (Ethylene propylene diene rubber)

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating

SUCOPRO Plating
