25_TNC-50-3-9/133_NE

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size115KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

25_TNC-50-3-9/133_NE Overview

RF Connector/Coaxial Connector

25_TNC-50-3-9/133_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARDS: IEC 60169-17; MIL-STD-348A/313, APPLICABLE CABLES: RG 58C/U; RG 223/U; RG 400/U
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceYES
Installation methodSTRAIGHT
Installation typeCABLE
Maximum operating frequency11 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeCLAMP SOLDER
Base Number Matches1

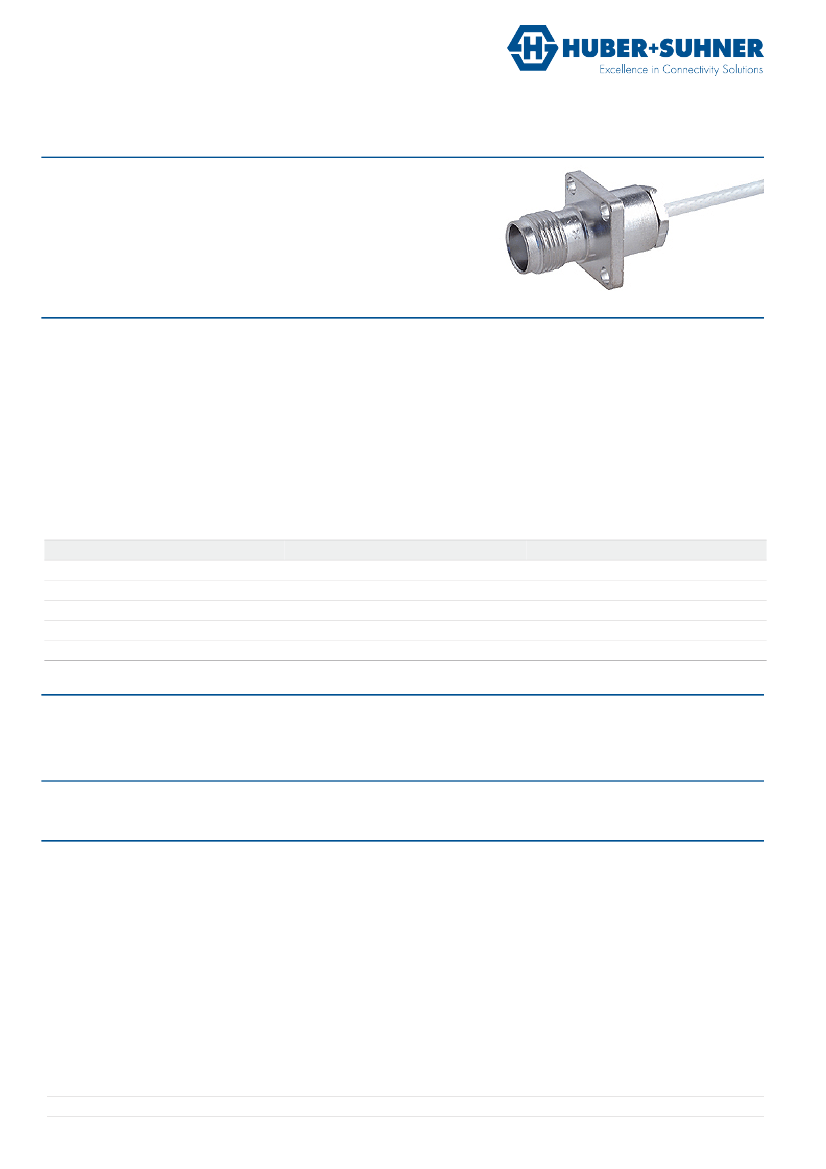

Data Sheet
Coaxial Cable Connector
25_TNC-50-3-9/133_N
Description
Straight panel cable jack, flange mount
Interface standards
IEC 60169-17_MIL-STD-348A/313_CECC 22200
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
11 GHz
Mechanical Data
Centre contact
Outer contact
Weight
soldered
clamped
0.0181 kg
Environmental Data
Operating temperature
2011/65/EU, RoHS
-65 °C to 165 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
Catalogue drawing
Assembly instruction
DOU-00009209
DCA-00009210
DOC-0000179064
Ordering Information
Single package
25_TNC-50-3-9/133_NE
Additional Information
Suitable cables
RG_58_C/U, RG_223_/U, ENVIROFLEX_142, RG_400_/U
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000185575 K / PDO C / date of publication: 10.05.2017 17:52:43 / uncontrolled copy
Page 1/1
