11_UHF-0-3-18/033_-E Overview

RF Connector/Coaxial Connector

11_UHF-0-3-18/033_-E Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product CategoryRF Connector/Coaxial Connector
productConnectors
RF seriesUHF
TypePlug (Male)
minimum frequency-
maximum frequency200 MHz
Termination typeCable - Crimp
directionStraight
polarityStandard
Installation typeCable
Cable typeRG-223-/U, RG-142-B/U
Main materialBrass
Subject typeStraight
Contact terminationCrimp
Contact typePin (Male)
insulationNon-Isolated
seriesUHF
Contact materialBrass
Maximum operating temperature+ 165 C
Minimum operating temperature- 55 C
Factory packaging quantity1
unit weight20.600 g

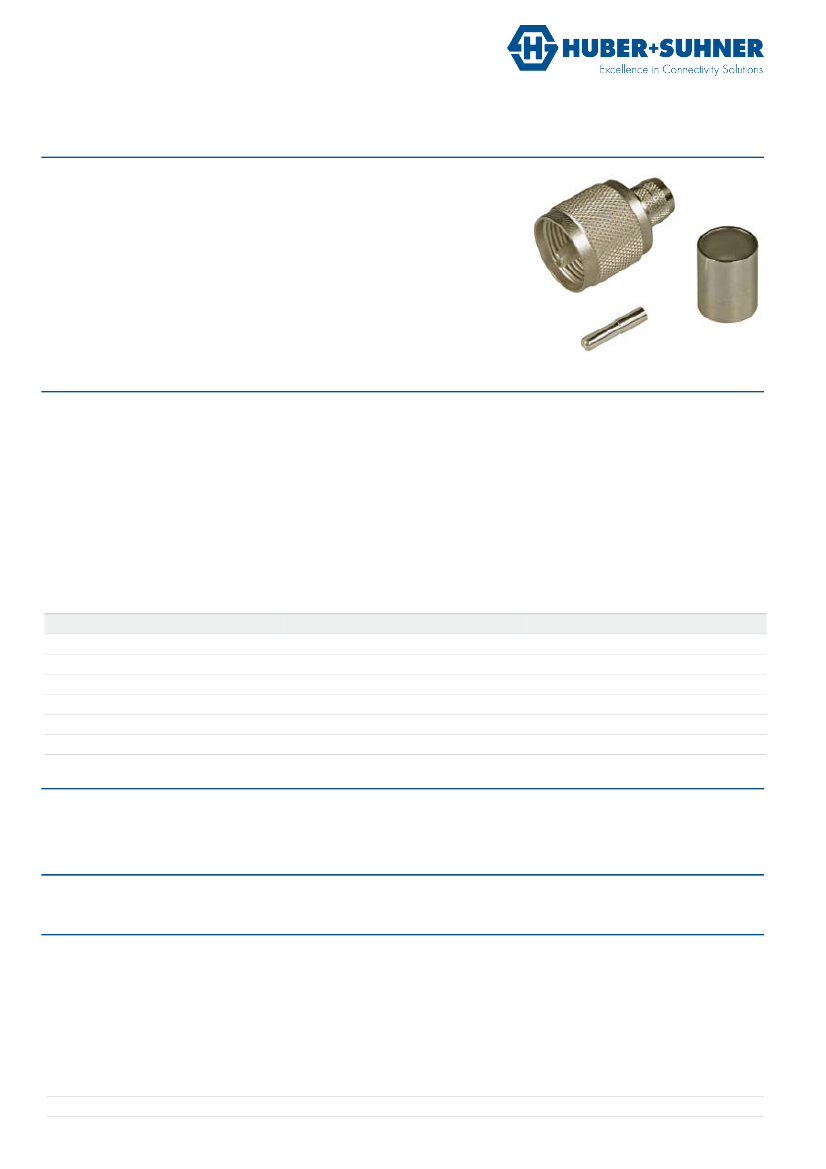

Data Sheet
Coaxial Cable Connector
11_UHF-0-3-18/033_-
Description
Straight cable plug
Interface standards
IEC 60169-12
Technical Data
Electrical Data
Impedance
Interface frequency max.
other Ω
0.2 GHz
Mechanical Data
Centre contact
Outer contact
Weight
crimped
crimped
0.0206 kg
Environmental Data
Operating temperature
2011/65/EU, RoHS
-55 °C to 165 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Crimp ferrule
Material
Brass
Brass
Brass
PSU (Polysulfone)
Brass
Copper
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Surface Plating
Silver Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
Catalogue drawing
Assembly instruction
DOU-00181573
DCA-00045041
DOC-0000201061
Ordering Information
Single package
11_UHF-0-3-18/033_-E
Additional Information
Suitable cables
RG_223_/U, RG_142_B/U
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000184407 Z / PDO J / date of publication: 10.05.2017 18:17:19 / uncontrolled copy
Page 1/1
