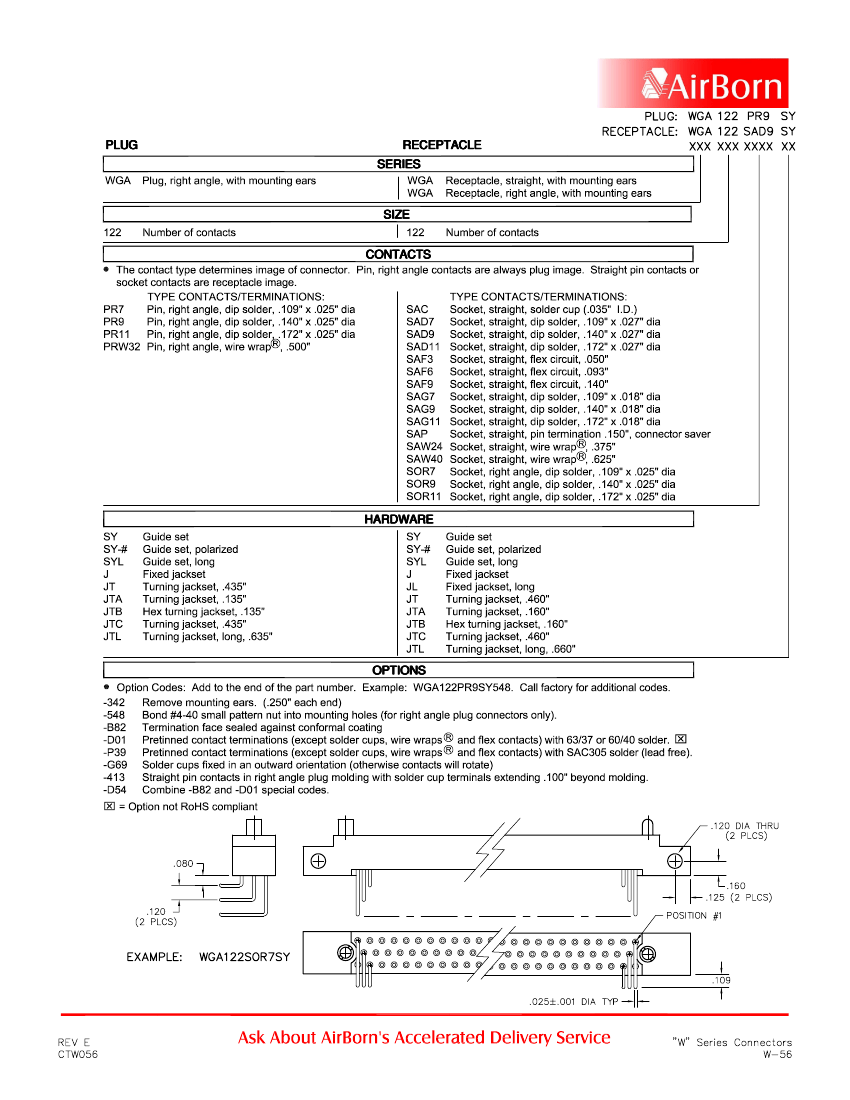

WGA122SAD9SY: DescriptionRectangular Mil-Spec Connector 3Row R Ang Recptl Board Mount; CategoryThe connector The connector; File Size641KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WGA122SAD9SY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WGA122SAD9SY	-	-	View	Buy Now

Rectangular Mil-Spec Connector 3Row R Ang Recptl Board Mount

Parameter Name	Attribute value
Reach Compliance Code	compliant
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD (SN/PB)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	3
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	122
Base Number Matches	1

	WGA122SAD9SY	WGA122PR9SY	WGA122SACJTB	WGA122PR9J
Description	Rectangular Mil-Spec Connector 3Row R Ang Recptl Board Mount	Rectangular Mil-Spec Connector 3Row R Ang Plug Board Mount	Rectangular Mil-Spec Connector 3Row R Ang Recptl I/O	Rectangular Mil-Spec Connector 3Row R Ang Plug Board Mount
Reach Compliance Code	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD (SN/PB)	TIN LEAD	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	MALE	FEMALE	MALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	3	3	3	3
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	122	122	122	122
Base Number Matches	1	1	1	1
