22_BNC-50-0-5/133_NE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 22_BNC-50-0-5/133_NE

22_BNC-50-0-5/133_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

22_BNC-50-0-5/133_NE Overview

RF Connector/Coaxial Connector

22_BNC-50-0-5/133_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301
subject depth	0.809 inch
Body diameter	0.571 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
Shell surface	GOLD OVER NICKEL
Shell material	BRASS
Terminal length	0.255 inch
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

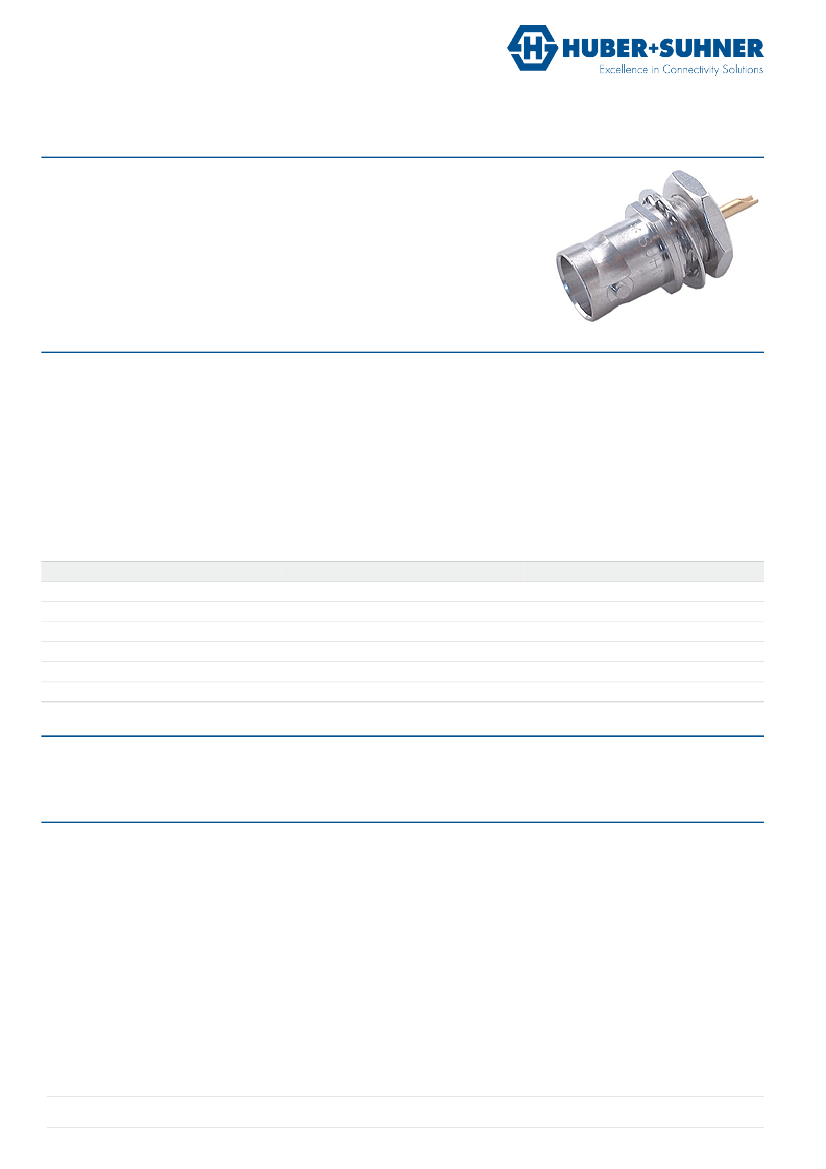

Data Sheet

Coaxial Panel Connector

22_BNC-50-0-5/133_N

Description

Straight bulkhead receptacle jack

Interface standards

IEC 60169-8_MIL-STD-348A/301_CECC 22120

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

4 GHz

Mechanical Data

Number of matings

Weight

500

0.0074 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Fastening nut

Washer

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

Bronze

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

22_BNC-50-0-5/133_NE Related Products

	22_BNC-50-0-5/133_NE	22_BNC-50-0-5/133_NH
Description	RF Connector/Coaxial Connector	RF Connector/Coaxial Connector
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301	STANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	GOLD OVER NICKEL
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	YES	YES
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	YES	YES
Installation method	STRAIGHT	STRAIGHT
Maximum operating frequency	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
