82_MCX-75-0-5/111_NH

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size121KB,2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

82_MCX-75-0-5/111_NH Overview

RF Connector/Coaxial Connector

82_MCX-75-0-5/111_NH Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.236 inch
Body diameter0.196 inch
Body/casing typeJACK
Characteristic impedance75 Ω
Connector typeRF MCX CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell surfaceGOLD OVER NICKEL
Shell materialBRASS
Terminal length0.142 inch
Termination typeSOLDER
Total number of contacts1
Data Sheet

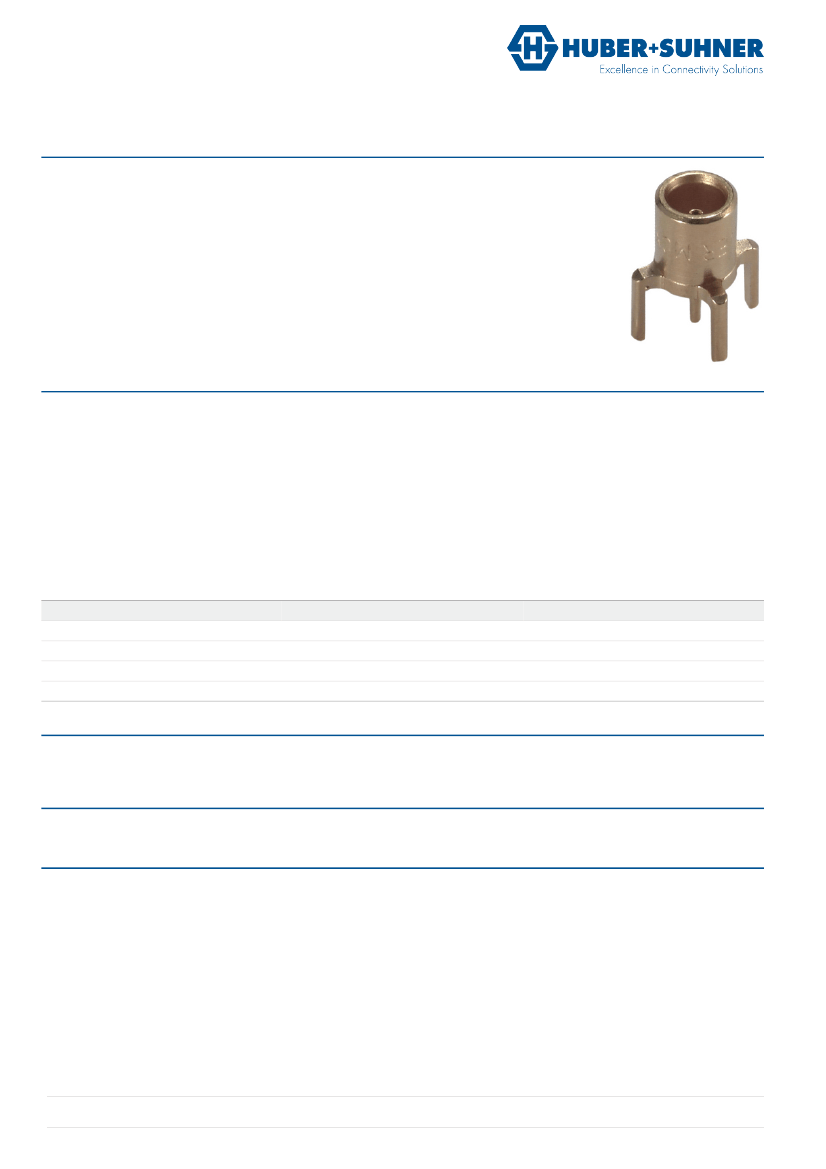

Coaxial PCB Connector
82_MCX-75-0-5/111_N
Description
Straight PCB jack
Interface Standards
SUHNER-MCX75
Technical Data
Electrical Data
Impedance
Interface frequency max.
75 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
through holes
0.0007 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
Catalogue drawing
DOU-00012964
DCA-00012966
Ordering Information
Bulk 100 pcs package
82_MCX-75-0-5/111_NH
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000193157 L / PDO C / date of publication: 12/5/2014 12:22:37 PM / uncontrolled copy
Page 1/1
