25_BMA-N50-3-8/119_NE

Description
RF Connector/Coaxial Connector
CategoryThe connector    Rf interconnection    RF connector/coaxial connector
File Size123KB，2 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

25_BMA-N50-3-8/119_NE Overview

RF Connector/Coaxial Connector

25_BMA-N50-3-8/119_NE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product CategoryRF Connector/Coaxial Connector
productConnectors
RF seriesBMA
TypeJack (Female)
impedance50 Ohms
minimum frequency-
maximum frequency18 GHz
Termination typeCable - Crimp
directionStraight
polarityStandard
Installation typeFlange Mount, 2-Hole
Cable typeRG-400-/U, RG-223-/U, ENVIROFLEX-142, RADOX-RF-400
Main materialStainless Steel
Subject typeStraight
Contact platingGold
Contact terminationSolder
Contact typeSocket (Female)
insulationNon-Isolated
seriesBMA
Contact materialBeryllium Copper, Copper Alloy
Maximum operating temperature+ 125 C
Minimum operating temperature- 65 C
Factory packaging quantity1
unit weight6.222 g

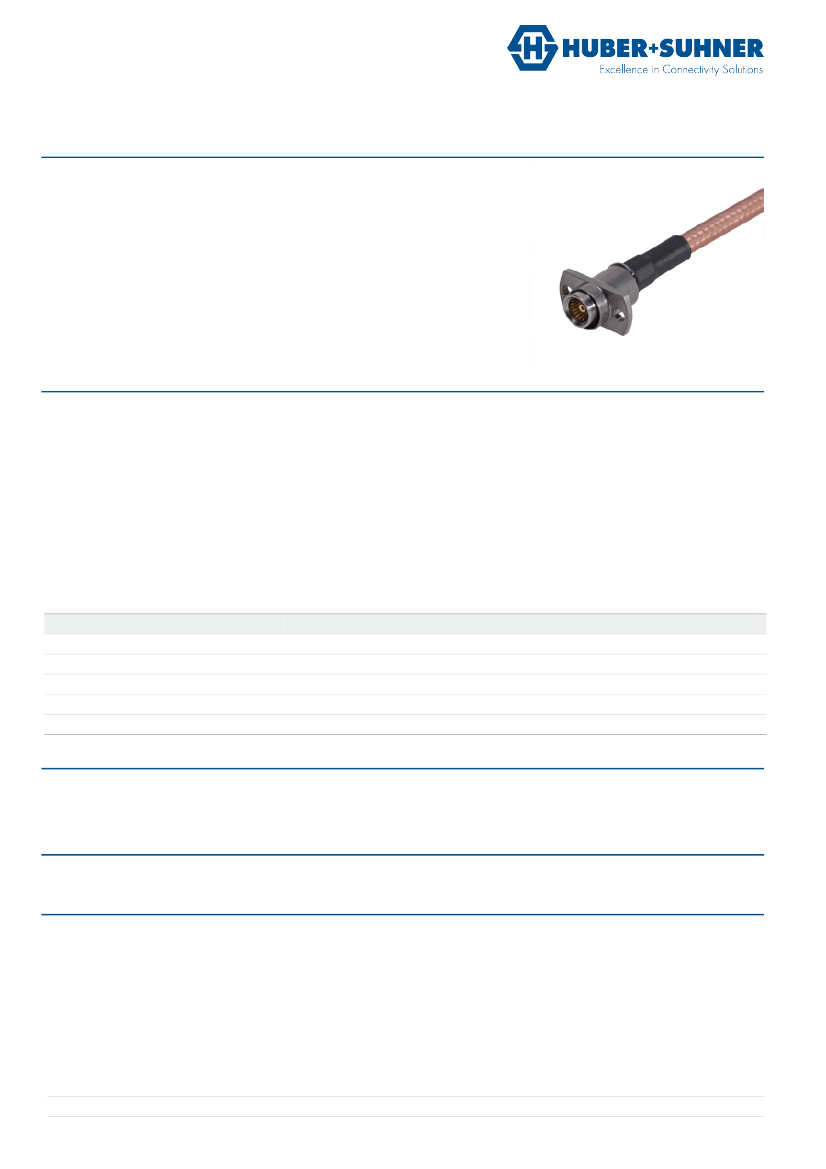

Preview

Download Datasheet
Data Sheet
Coaxial Cable Connector
25_BMA-N50-3-8/119_N
Description
Straight panel cable jack, flange mount
Interface standards
IEC 60169-33_MIL-STD-348A/321
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
18 GHz
Mechanical Data
Centre contact
Outer contact
Weight
soldered
crimped
0.006222 kg
Environmental Data
Operating temperature
2011/65/EU, RoHS
-65 °C to 125 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Crimp ferrule
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Stainless Steel
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
Assembly instruction
Mounting hole
DOU-00130652
DOC-0000185322
DOU-00008816
Ordering Information
Single package
25_BMA-N50-3-8/119_NE
Additional Information
Suitable cables
RG_400_/U, RG_223_/U, ENVIROFLEX_142, RADOX_RF_400
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000675179 E / PDO D / date of publication: 10.05.2017 18:23:40 / uncontrolled copy
