24_QN-50-7-3/133_NE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 24_QN-50-7-3/133_NE

Preview

24_QN-50-7-3/133_NE: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

24_QN-50-7-3/133_NE Overview

RF Connector/Coaxial Connector

24_QN-50-7-3/133_NE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	APPLICABLE CABLE: RG 213/U
Body/casing type	JACK
Cable type	RG-213
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	1
voltage standing wave ratio	1.58
Base Number Matches	1

Preview

Download Datasheet

View All

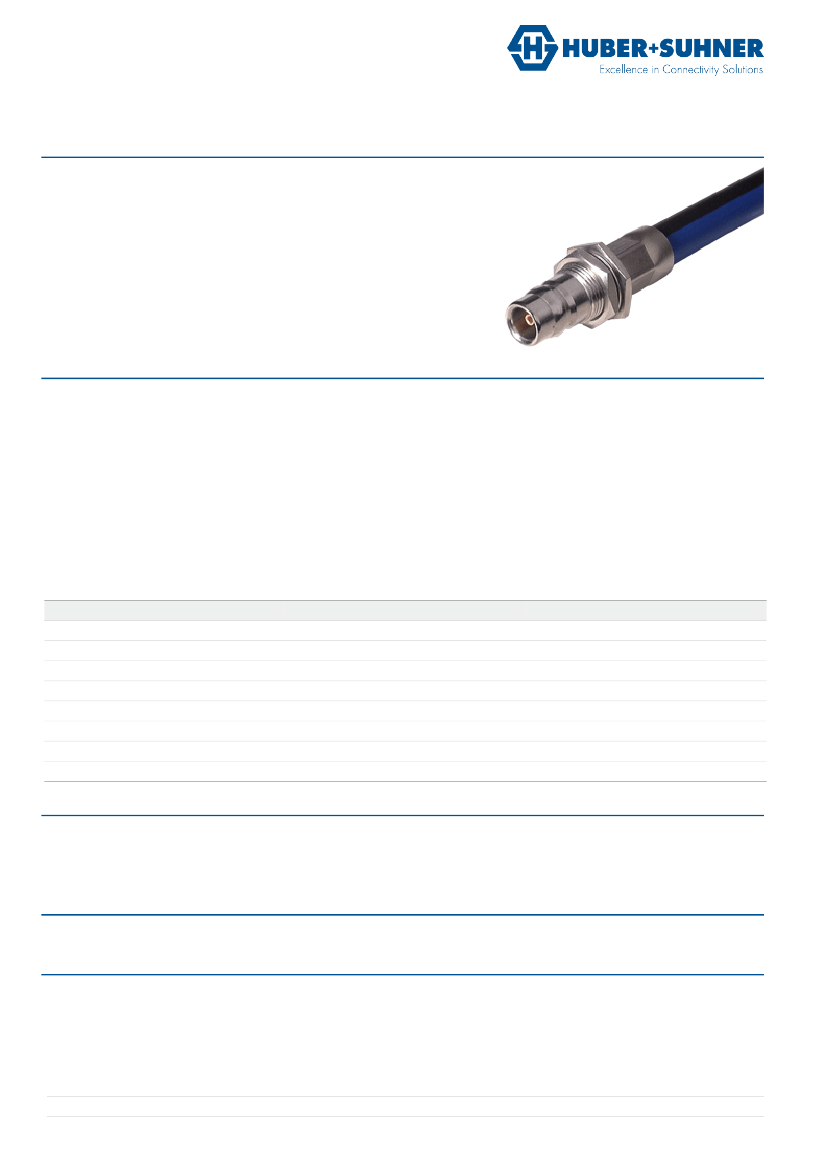

Data Sheet

Coaxial Cable Connector

24_QN-50-7-3/133_N

Description

Straight bulkhead cable feed through

Interface standards

QN QLF compliant

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

11 GHz

Mechanical Data

Centre contact

Outer contact

Weight

crimped

0.022 kg

Environmental Data

Operating temperature

2011/65/EU, RoHS

-40 °C to 125 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Gasket

Fastening nut

Washer

Crimp ferrule

Material

Bronze

Brass

PFA / PTFE

VMQ (Silicone rubber)

Brass

Bronze

Copper

SUCOPLATE (R) Plating

Surface Plating

SUCOPRO Plating

SUCOPLATE (R) Plating
