16_716-50-7-10/003_-E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 16_716-50-7-10/003_-E

Preview

16_716-50-7-10/003_-E: DescriptionRF Connector/Coaxial Connector; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

16_716-50-7-10/003_-E Overview

RF Connector/Coaxial Connector

16_716-50-7-10/003_-E Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 214/U, RG 393/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
JESD-609 code	e4
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	7.5 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

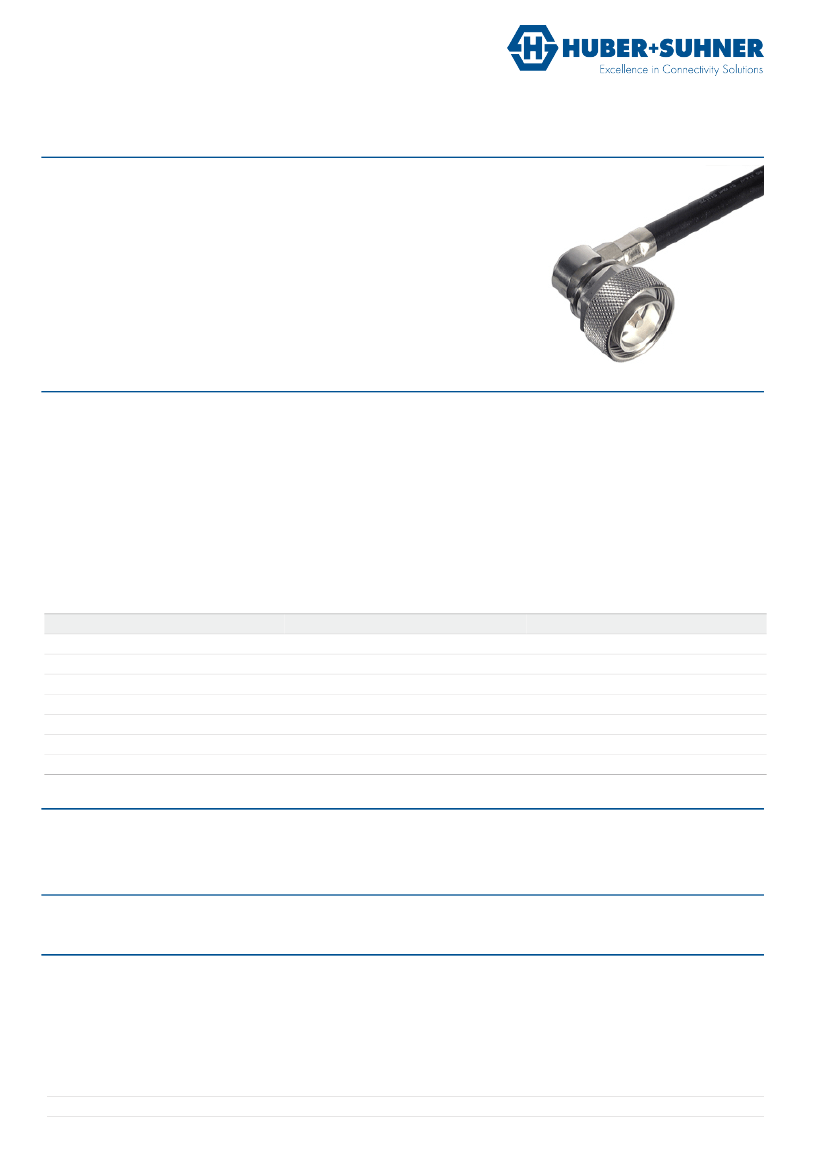

Data Sheet

Coaxial Cable Connector

16_716-50-7-10/003_-

Description

Right angle cable plug

Interface standards

IEC 61169-4_CECC 22190_DIN 47223_VG 95250

Technical Data

Electrical Data

Impedance

Interface frequency max.

50 Ω

7.5 GHz

Mechanical Data

Centre contact

Outer contact

Weight

soldered

crimped

0.1026 kg

Environmental Data

Operating temperature

2011/65/EU, RoHS

-65 °C to 165 °C

compliant

Material Data

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Crimp ferrule

Material

Brass

PFA / PTFE

Brass

VMQ (Silicone rubber)

Brass

Silver Plating

SUCOPLATE (R) Plating

Surface Plating

Silver Plating
