82_MBX-S50-0-1/111_NH

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size105KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric Compare View All

82_MBX-S50-0-1/111_NH Overview

RF Connector/Coaxial Connector

82_MBX-S50-0-1/111_NH Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.236 inch
subject depth0.197 inch
body length0.236 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
MIL complianceNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeSURFACE MOUNT
Total number of contacts1
Base Number Matches1

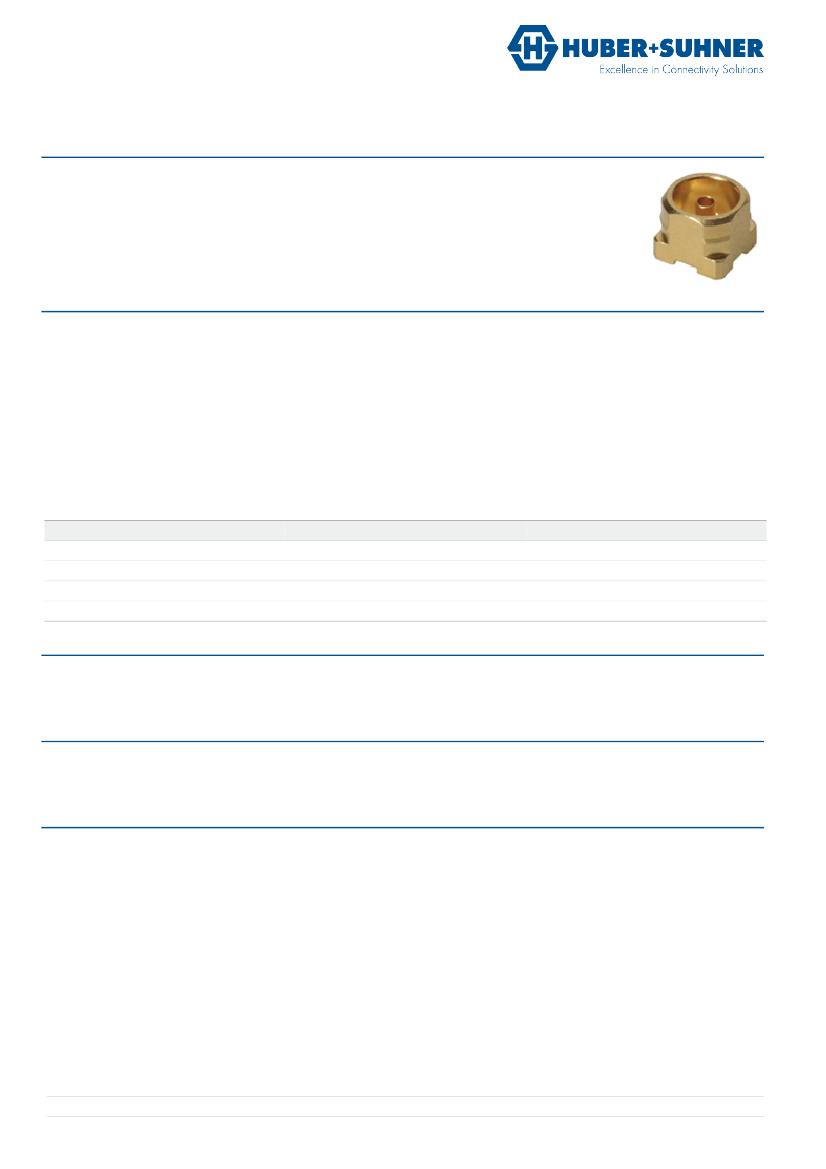

Data Sheet
Coaxial PCB Connector
82_MBX-S50-0-1/111_N
Description
Straight PCB jack
Interface Standards
HUBER+SUHNER MBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
surface mount
0.000636 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Brass
Brass
LCP (Liquid crystal polymer)
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00144599
DCA-00161372
DOU-00142408
Ordering Information
Tape and Reel package
Bulk 100 pcs package
Single package
82_MBX-S50-0-1/111_NM
82_MBX-S50-0-1/111_NH
82_MBX-S50-0-1/111_NE
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000329775 J / PDO E / date of publication: 26.10.2016 18:47:52 / uncontrolled copy
Page 1/1
