TECHNICAL DATA SHEET
SMA
Standard

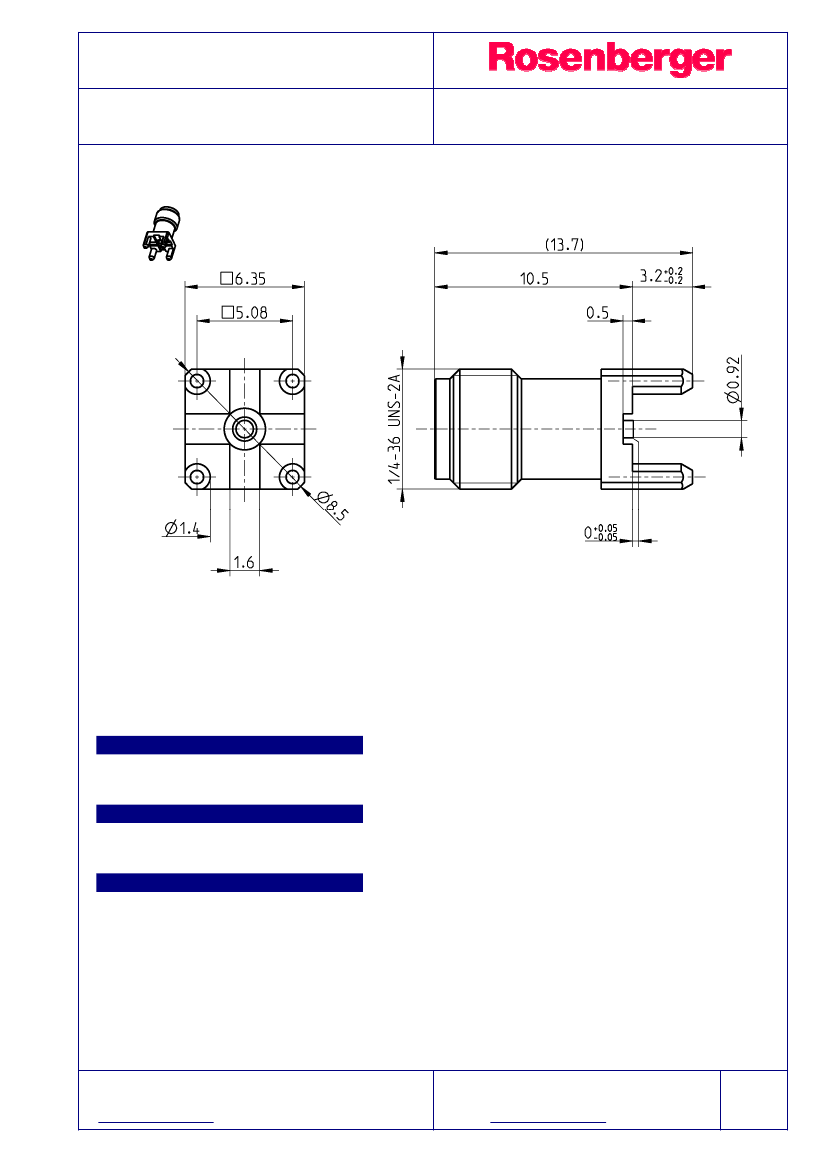

STRAIGHT JACK PCB
32K10L-400L5
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-15; EN 122110; MIL-STD-348
Documents
PCB layout
B 115A
Material and plating
Connector parts
Center contact
Outer contact
Dielectric
Material
Beryllium copper
Beryllium copper or equivalent
PTFE
Plating
AuroDur, gold plated
AuroDur, gold plated
RF_35/08.06/4.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
SMA
Standard
Impedance
Frequency
VSWR
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
STRAIGHT JACK PCB
32K10L-400L5
50
Ω
DC to 18 GHz
≤
1.06, DC to 10 GHz
≤
1.20, 10 to 15 GHz
≤
0.1 x
f(GHz)
dB
3
≥
5 x10 MΩ
≤
3 mΩ
≤
2 mΩ
1000 V rms
480 V rms
≤
200 W @ 2 GHz
≥
100 dB up to 1 GHz
Electrical data
- Connector only, VSWR in application depends decisive on PCB layout
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
≥
20 N
max. 1.7 Nm
0.8 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Max. soldering temperature
RoHS
-65°C to +165°C
MIL-STD-202, Meth. 107, Cond. B
MIL-STD-202, Meth. 101, Cond. B
MIL-STD-202, Meth. 204, Cond. D
MIL-STD-202, Meth. 213, Cond. I
MIL-STD-202, Meth. 106
IEC 61760-1, +260°C for 10 sec.
compliant
Weight
Weight
1.5 g/pce
