85_QMA-50-0-4/111_NH

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size114KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

85_QMA-50-0-4/111_NH Overview

RF Connector/Coaxial Connector

85_QMA-50-0-4/111_NH Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSOLDER
Base Number Matches1

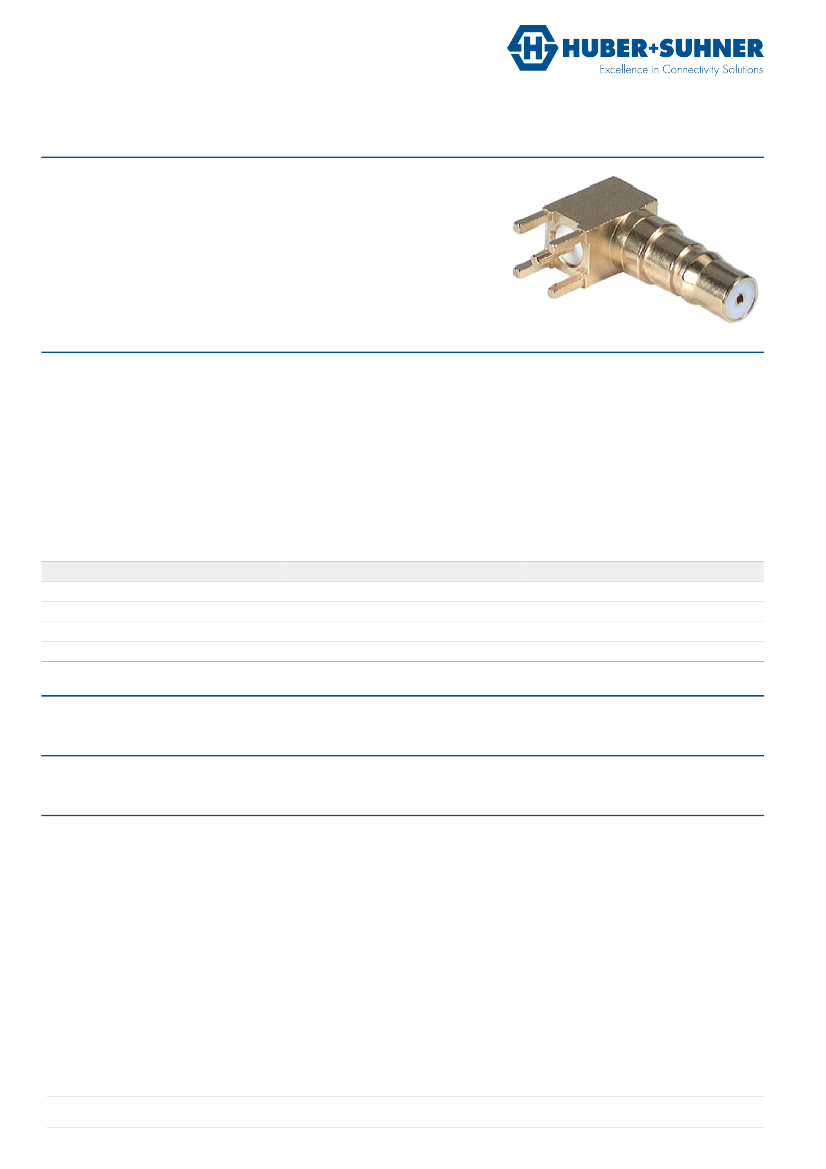

Data Sheet
Coaxial PCB Connector
85_QMA-50-0-4/111_N
Description
Right angle PCB jack
Interface Standards
QMA QLF compliant
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
through holes
0.0047 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 85 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium / Bronze
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00013254
Ordering Information
Bulk 100 pcs package
85_QMA-50-0-4/111_NH
Remarks
PCB connector with stand-offs
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000193666 O / PDO G / date of publication: 12/5/2014 12:21:17 PM / uncontrolled copy
Page 1/1
