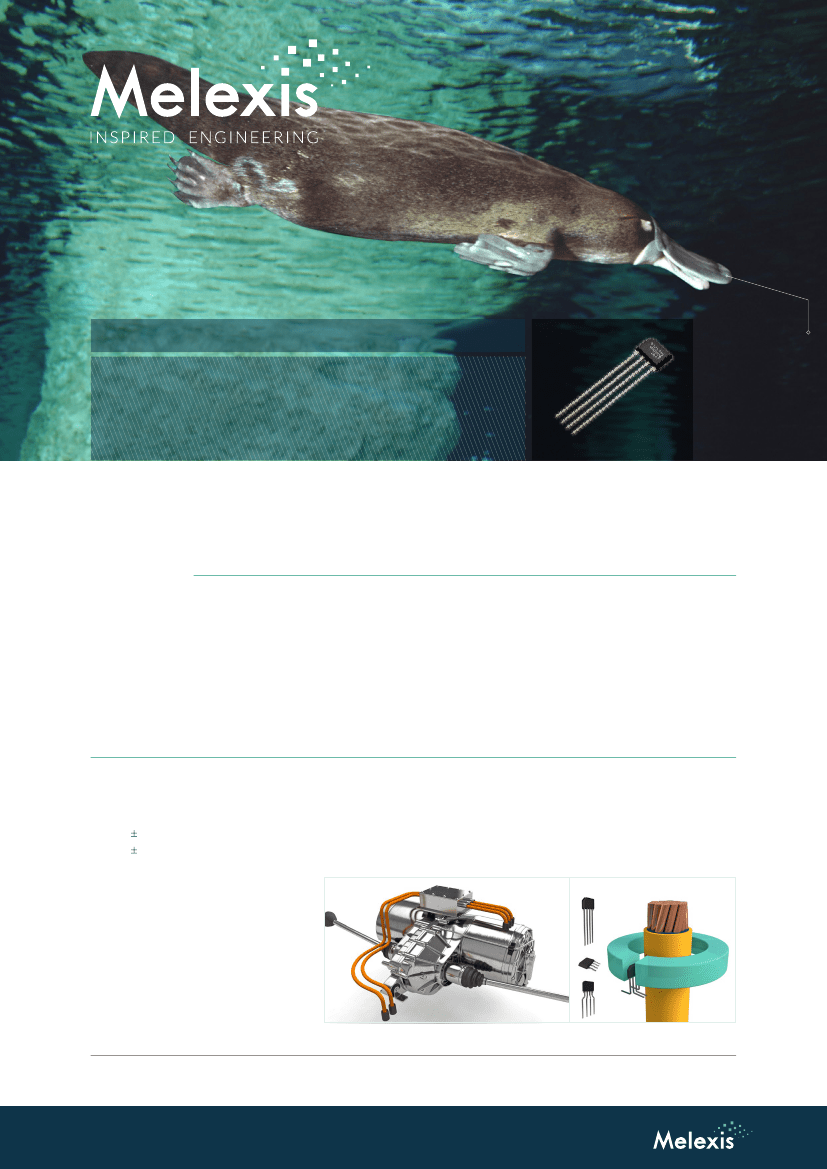

MLX91217
CONVENTIONAL HALL
HIGH-SPEED CURRENT SENSOR
BOOSTING ACCURACY AND DIAGNOSTICS FOR
INVERTER AND CONVERTER APPLICATIONS
MLX91217
The MLX91217 is the Conventional Hall variant of the Melexis Gen 2.5 high-speed current sensor portfolio. It introduces
three main changes over the Gen 2 MLX91209. To serve the ever more demanding automotive application requirements,
our open-loop Hall-effect sensors are now increasing the accuracy of sensitivity and offset over temperature resulting in
market-leading sensor accuracy. Next to this improvement, the diagnostic coverage was increased with the introduction
of clamping and broken wire detection, in order to address applications with higher ASILs and/or connectors from e.g.
sensor module to control board with ECU. Finally, on-chip filtering allows for an accurate trade-off between bandwidth/
response time and higher resolution. The MLX91217 in SIP4-VA package is introduced with several Trim&Form options
to facilitate sensor integration in the air gap of the ferromagnetic core. These provide greater flexibility to designers in
the mechanical integration challenges that through-hole packages represent.
KEY FEATURES
k
Higher accuracy
• Sensitivity Thermal Drift < 1% (33% improvement)
• Offset Thermal Drift < 5 mV (50% improvement)
k
Custom factory trim options available
k
Trim&Form options available
k
Increased diagnostic capability
• Programmable Output Clamping
• Broken Wire Detection
k
Extended On-chip filtering options
k
Automotive AEC-Q100 Grade 0
k
High Speed
• 250 kHz bandwidth
• 2.5 μs response time
v1/05-11-2018
The above information is “as is” and believed to be correct and accurate. Melexis disclaims any and all liability in connection with or arising out of the furnishing, application or use of the information or products; any and all liability, including without limitation, special, consequential or incidental
damages; and any and all warranties, express, statutory, implied, or by description, including warranties of fitness for particular purpose, non-infringement and merchantability. Melexis reserves the right to change it at any time and without notice. Users should obtain the latest version of the
information to verify it is current. Users must further determine the suitability of a product for its application, including the level of reliability required and determine whether it is fit for a particular purpose. Export control regulations may apply and export might require a prior authorization from
competent authorities. Melexis’ products are intended for use in normal commercial applications. Unless otherwise agreed upon in writing, the products are not designed, authorized or warranted to be suitable in applications requiring extended temperature range and/or unusual environmental
requirements. High reliability applications, such as medical life-support or life-sustaining equipment are specifically not recommended by Melexis. Melexis’ products are sold under the Melexis’ Terms of Sale, which can be found at https://www.melexis.com/en/legal/terms-and-conditions.
FOR MORE INFORMATION: WWW.MELEXIS.COM/MLX91217
