Technical Data Sheet - Draft
Adaptor
NEX10 plug – NEX10 plug
89S101-S00N1
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG

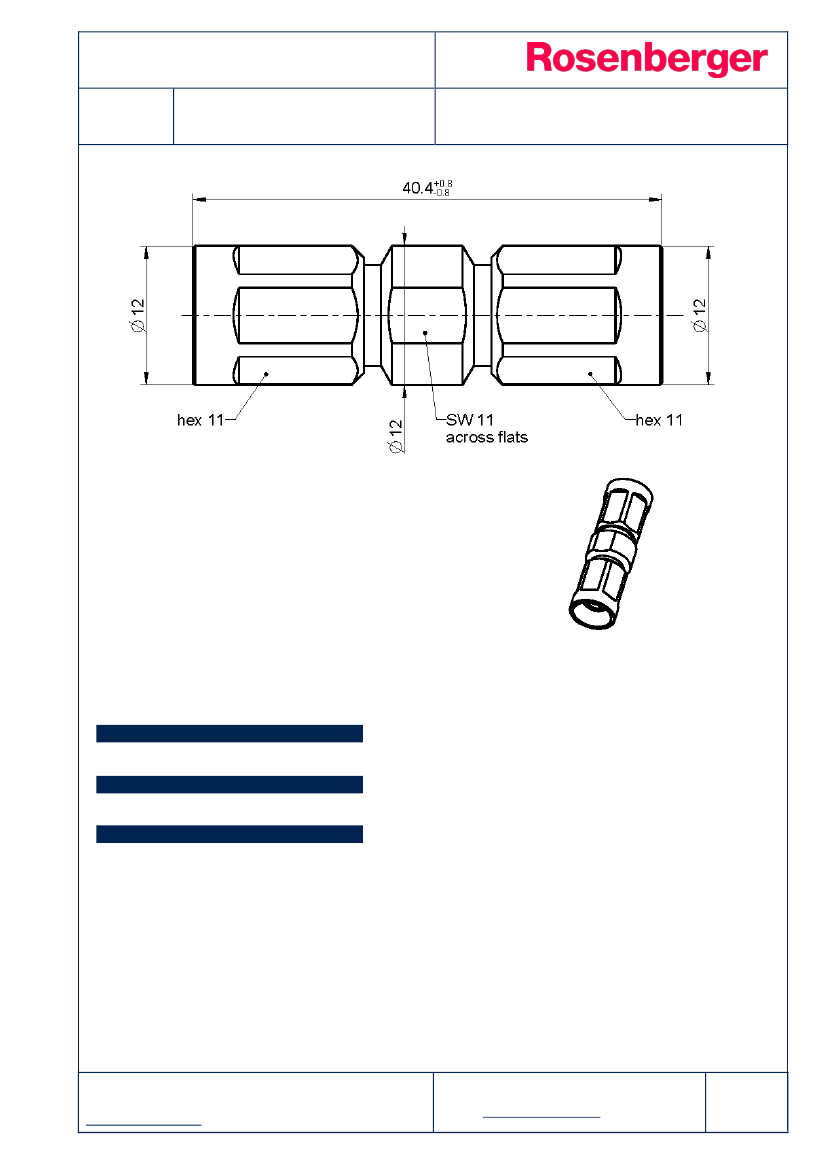

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
NEX10 side:
NEX10™
Documents
Assembly instruction
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Brass
Spring bronze
Brass
PTFE
Silicone
Plating
Silver, 3-6 µm
Silver, 3-6 µm
White bronze(e.g. Optalloy®)
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet - Draft
Adaptor
NEX10 plug – NEX10 plug
Electrical data
Impedance
Frequency
Return loss
50
DC to 20 GHz
30 dB @ DC to 4 GHz
28 dB @ 4 GHz to 6 GHz
25 dB @ 6 GHz to 10 GHz
0.05 x
f [GHz]
dB
89S101-S00N1
Dieses Dokument ist urheberrechtlich geschützt ● This document is protected by copyright ● Rosenberger Hochfrequenztechnik GmbH & Co. KG
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
RF-leakage
Power handling
5 G
2.0 m, NEX10 side
1.0 m, NEX10 side
500 V rms
≥ 110 dB @ DC to 6 GHz
100 W @ 2.0 GHz and 85°C ambient temperature
100
1.5 Nm
Mechanical data
Mating cycles
Recommended torque
Environmental data
Temperature range
Thermal shock
Vibration
Shock
Degree of protection (mated pair)
RoHS
-55 °C to +125 °C operating temperature
IEC 61169-1 9.4.4
IEC 61169-1 9.3.3 and IEC 60068-2-64
IEC 61169-1 9.3.14
IEC 60529, IP68 24h / 1m
compliant
Tooling
N/A
Suitable cables
N/A
Weight
Weight
20.8 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
Draft
F. Fraunhofer
Date
18.12.17
Approved
F. Fraunhofer
Date
04.06.2018
Rev.
300
Engineering change number
18-v359
Name
S. Huber-Siegl
Date
04.06.2018
RF_35/05.10/6.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
