33_QMA-PC35-50-1/1--_NE

Description
RF Adapters - Between Series
CategoryThe connector    The connector
File Size101KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

33_QMA-PC35-50-1/1--_NE Overview

RF Adapters - Between Series

33_QMA-PC35-50-1/1--_NE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeQMA-PC3.5
Body/casing typePLUG-JACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-FEMALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPOLYSTYROL
MIL complianceNO
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
voltage standing wave ratio1.11
Base Number Matches1

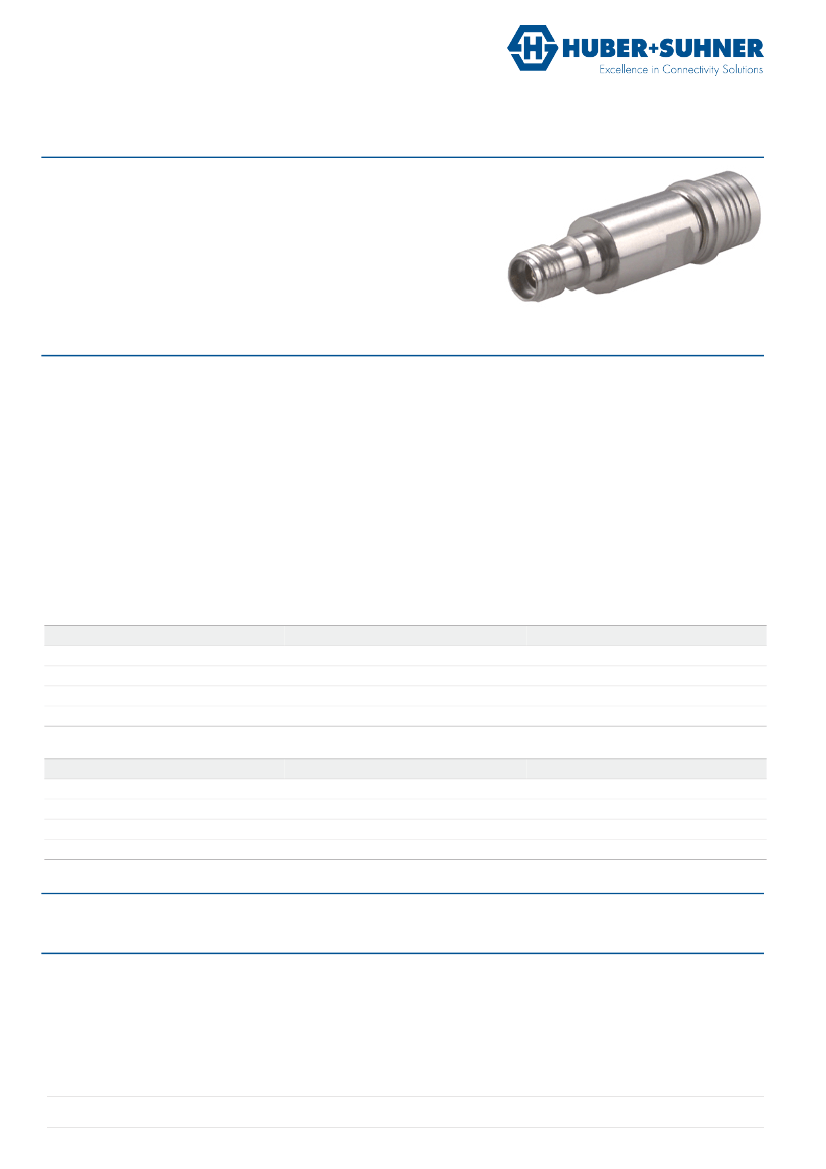

Data Sheet
Between Series Adaptor
33_QMA-PC35-50-1/1--_N
Description
Adaptor plug/jack
QMA plug (male) / PC 3.5 jack (female)
QuickLock Interface
For Test & Measurement applications
Interface standards
Series QMA - QMA QLF compliant
Series PC 3.5 - IEC 60169-23
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
18 GHz
DC to 1.5 GHz
≥ 35 dB
25.5 mm
1.5 to 6 GHz
≥ 30 dB
6 to 18 GHz
≥ 20 dB
Mechanical Data
Number of matings
Weight
500
0.0122 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-60 °C to 100 °C
compliant
Material Data
Interface - QMA plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Copper Beryllium Alloy
Stainless Steel
Air Dielectric - Bead - PS
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
Interface - PC 3.5 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Air Dielectric - Bead - PS
Surface Plating
SUCOPRO Plating
Related Documents
Outline drawing
DOU-00014031
Ordering Information
Single package
33_QMA-PC35-50-1/1--_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194820 U / PDO G / date of publication: 23.03.2016 13:42:32 / uncontrolled copy
Page 1/1
