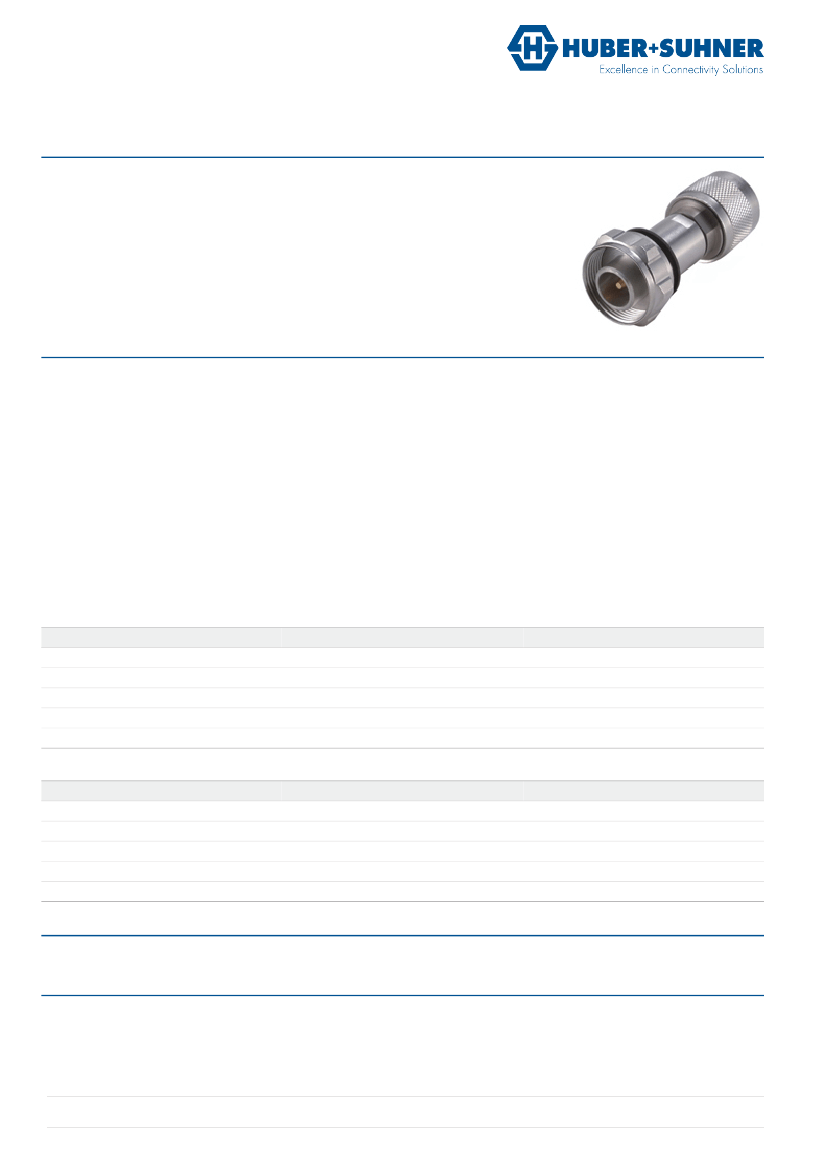

Data Sheet
Between Series Adaptor
32_4195-N-50-1/1--_U
Description
Adaptor plug/plug
4.1/9.5 plug (male) / N-precision plug (male)
Precision adaptor
Interface standards
Series 4.1/9.5 - IEC 60169-11_DIN 47231_VG 95277
Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Electrical length
50 Ω
14 GHz
DC to 14 GHz
≥ 30 dB
52.68 mm
Mechanical Data
Number of matings
Weight
500
0.0649 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 85 °C
compliant
Material Data
Interface - 4.1/9.5 plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Brass
Brass
Brass
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - N-precision plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Brass
SUCOPLATE (R) Plating
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
Surface Plating
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
DOU-00014543
Ordering Information
Single package
32_4195-N-50-1/1--_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195530 S / PDO E / date of publication: 12/4/2014 4:39:14 PM / uncontrolled copy
Page 1/1
