33_BNC-MMCX-50-1/1--_UE datasheet, PDF

Datasheet> All Categories > The connector> The connector> 33_BNC-MMCX-50-1/1--_UE

33_BNC-MMCX-50-1/1--_UE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size125KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_BNC-MMCX-50-1/1--_UE Overview

RF Adapters - Between Series

33_BNC-MMCX-50-1/1--_UE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	BNC-MMCX
Other features	STANDARDS: IEC 60169-8; MIL-STD-348A/301, VSWR MAX AT 4 GHZ
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	AU,AU ON NI
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER, BERYLLIUM COPPER
Contact style	COAX
Coupling type	BAYONET-SNAP
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Manufacturer's serial number	BETWEEN
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.15
Base Number Matches	1

Preview

Download Datasheet

View All

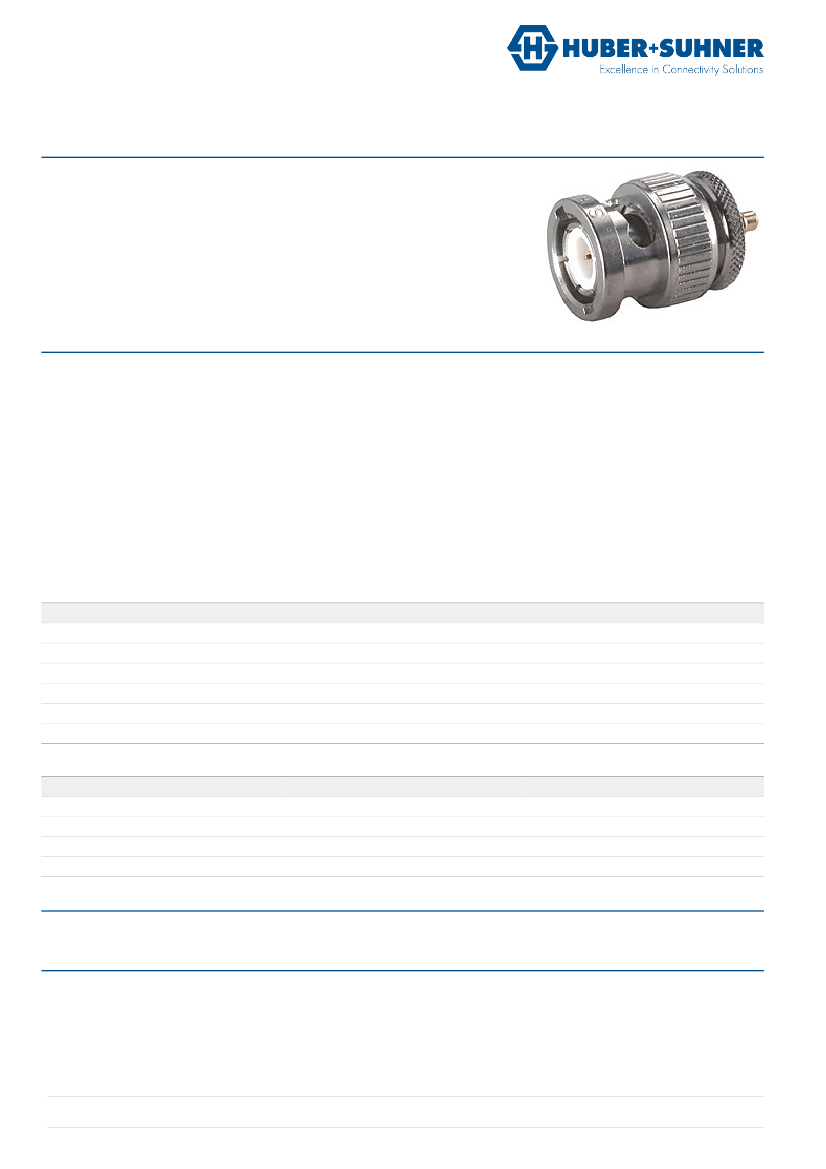

Data Sheet

Between Series Adaptor

33_BNC-MMCX-50-1/1--_U

Description

Adaptor plug/jack

BNC plug (male) / MMCX jack (female)

Interface standards

Series BNC - IEC 61169-8_MIL-STD-348A/301_CECC 22120

Series MMCX - SUHNER-MMCX

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

4 GHz

DC - 4 GHz

≤ 1.05 + 0.025 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.0111 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

°C to °C

compliant

Material Data

Interface - BNC plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Brass

VMQ (Silicone rubber)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (without Nickel underplating)

SUCOPLATE (R) Plating

Interface - MMCX jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

Gold Plating (without Nickel underplating)

SUCOPLATE (R) Plating
