33_SMA-SMB-50-1/111_NE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size120KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_SMA-SMB-50-1/111_NE Overview

RF Adapters - Between Series

33_SMA-SMB-50-1/111_NE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	SMA-SMB
Other features	STANDARDS: IEC 60169-15; MIL-STD-348A/310
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.21
Base Number Matches	1

Preview

Download Datasheet

View All

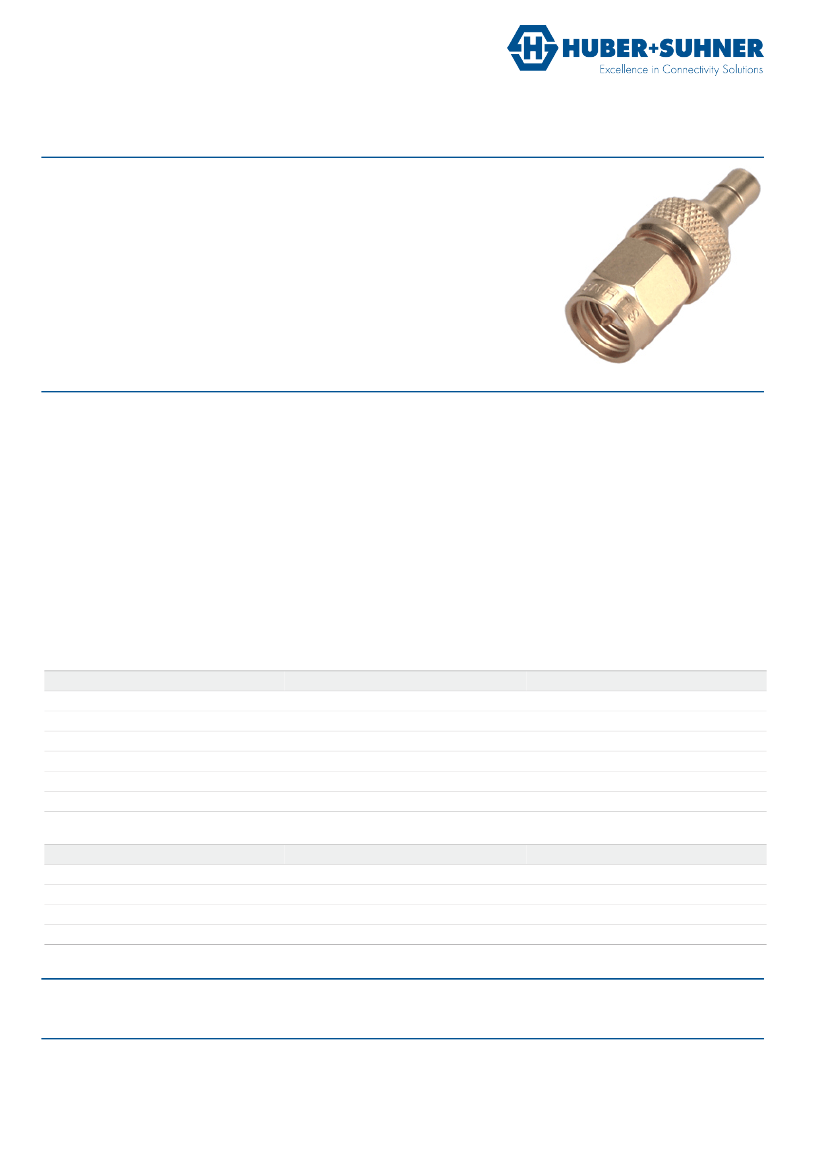

Data Sheet

Between Series Adaptor

33_SMA-SMB-50-1/111_N

Description

Adaptor plug/jack

SMA plug (male) / SMB jack (female)

Interface standards

Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110

Series SMB - IEC 60169-10_MIL-STD-348A/311_CECC 22130

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

Frequency range

Return loss

50 Ω

4 GHz

DC - 4 GHz

≤ 1.05 + 0.04 f (GHz)

4 to 7 GHz

≥ 20 dB

Mechanical Data

Number of matings

Weight

500

0.0064 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 125 °C

compliant

Material Data

Interface - SMA plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Bronze

VMQ (Silicone rubber)

Gold Plating (Nickel underplated)

Surface Plating

Gold Plating (without Nickel underplating)

Gold Plating (Nickel underplated)

Interface - SMB jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)
