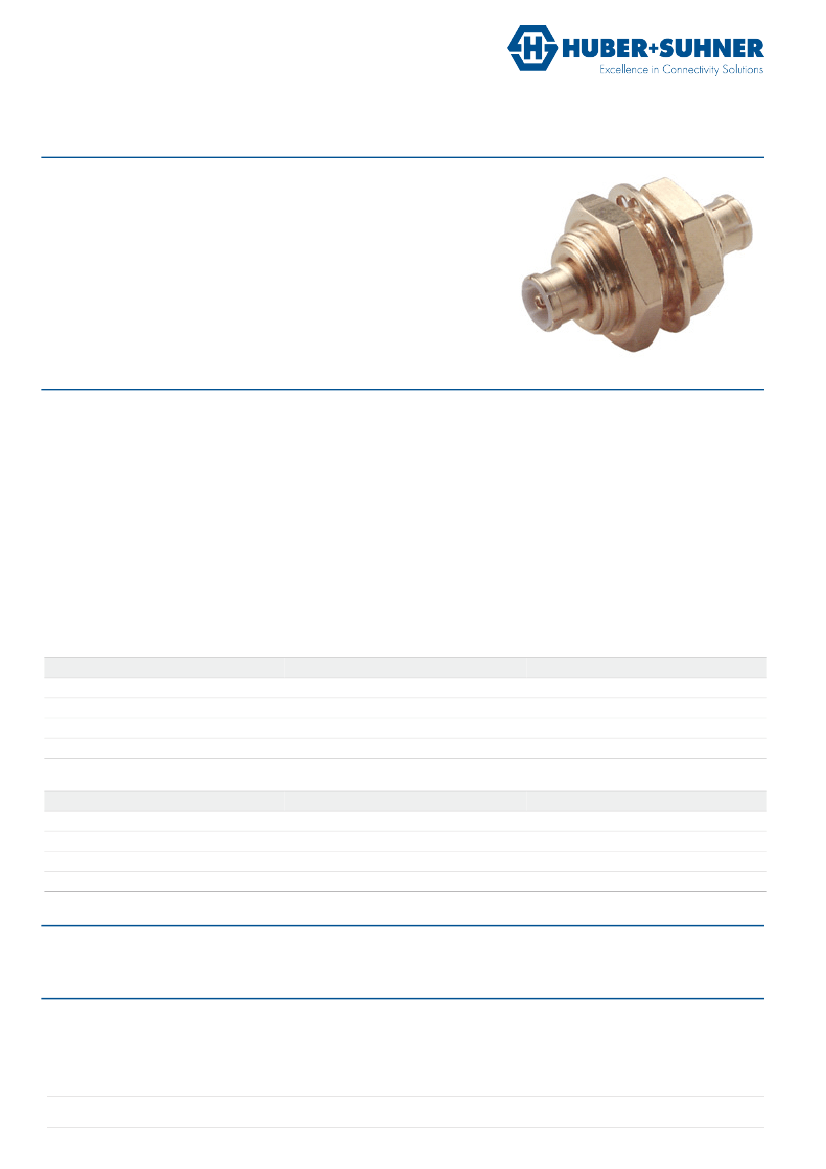

Data Sheet
Within Series Adaptor
35_MMBX-50-0-1/111_N
Description
Bulkhead adaptor plug/plug
MMBX plug (male) / MMBX plug (male)
Slide - slide interface
Interface standard
Series MMBX - SUHNER-MMBX
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
12.4 GHz
DC to 2.5 GHz
≥ 22 dB
2.5 to 6 GHz
≥ 18 dB
6 to 12.4 GHz
≥ 16 dB
Mechanical Data
Chassis torque
Number of matings
Weight
2 Nm
100
0.0032 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium / Brass
Bronze
Brass
PFA / LCP
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Interface - MMBX plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium / Brass
Bronze
Brass
PFA / LCP
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Mounting hole
DOU-00013580
DOU-00013583
Ordering Information
Single package
35_MMBX-50-0-1/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194157 X / PDO I / date of publication: 23.03.2016 13:28:42 / uncontrolled copy
Page 1/1
