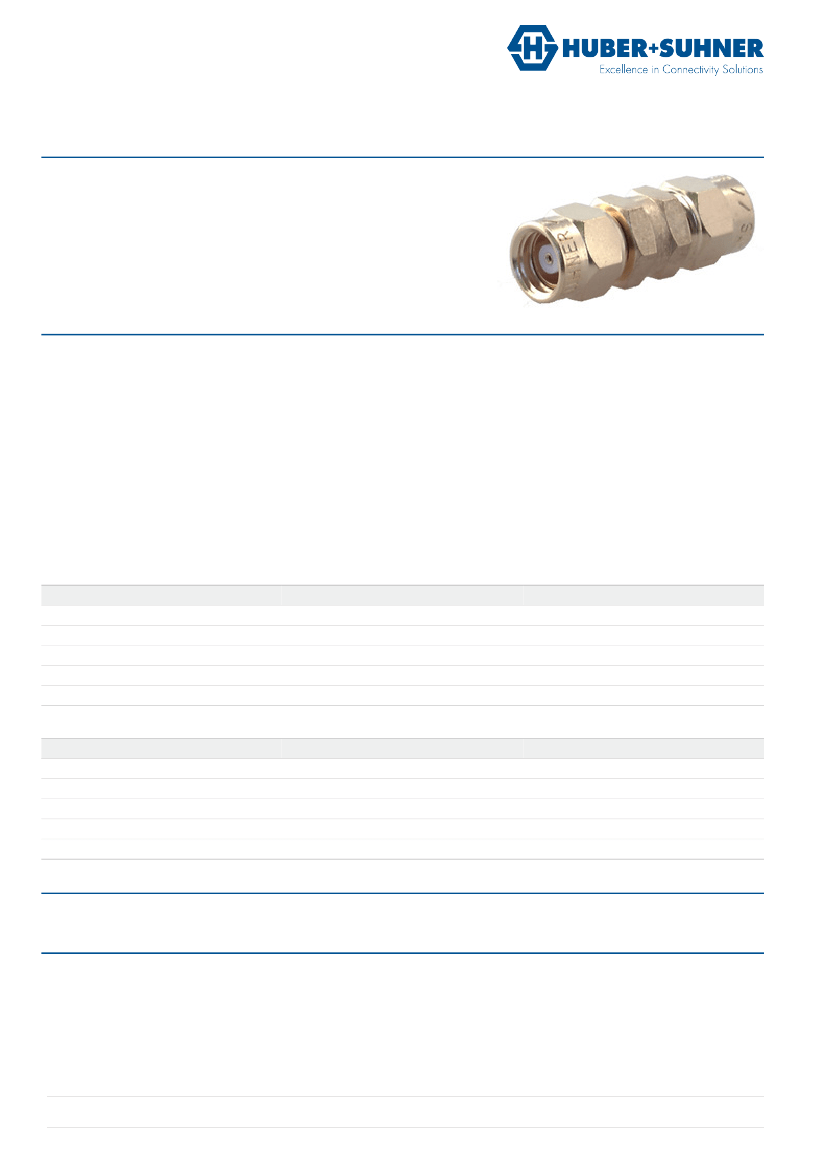

Data Sheet
Within Series Adaptor
32_SMC-50-0-1/111_N
Description
Adaptor plug/plug
SMC plug (male) / SMC plug (male)
Interface standard
Series SMC - IEC 60169-9_MIL-STD-348A/312_CECC 22140
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
10 GHz
DC - 10 GHz
≤ 1.08 + 0.1 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0031 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - SMC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
Gold Plating (Nickel underplated)
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Interface - SMC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Brass
Gold Plating (Nickel underplated)
Surface Plating
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Gold Plating (Nickel underplated)
Related Documents
Catalogue drawing
DCA-00013696
Ordering Information
Single package
32_SMC-50-0-1/111_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194284 Q / PDO D / date of publication: 12/4/2014 4:38:14 PM / uncontrolled copy
Page 1/1
