33012-2022 (Mouser Reel): DescriptionAutomotive connector MX150 F TERM 18/20G B WIND REEL OF 1000; CategoryThe connector Automobile connector; File Size32KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

33012-2022 (Mouser Reel) Overview

Automotive connector MX150 F TERM 18/20G B WIND REEL OF 1000

33012-2022 (Mouser Reel) Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	automotive connector
product	Terminals
Number of locations	-
Type	Female
Installation style	Wire
Termination type	Crimp
Contact plating	Tin
Wire gauge range	20 AWG to 18 AWG
series	33012
Encapsulation	Reel
Contact type	Receptacle
Current rating	22 A
Voltage rating	250 V
Contact material	High Performance Alloy (HPA)
Factory packaging quantity	1000
unit weight	434 mg

Preview

Download Datasheet

View All

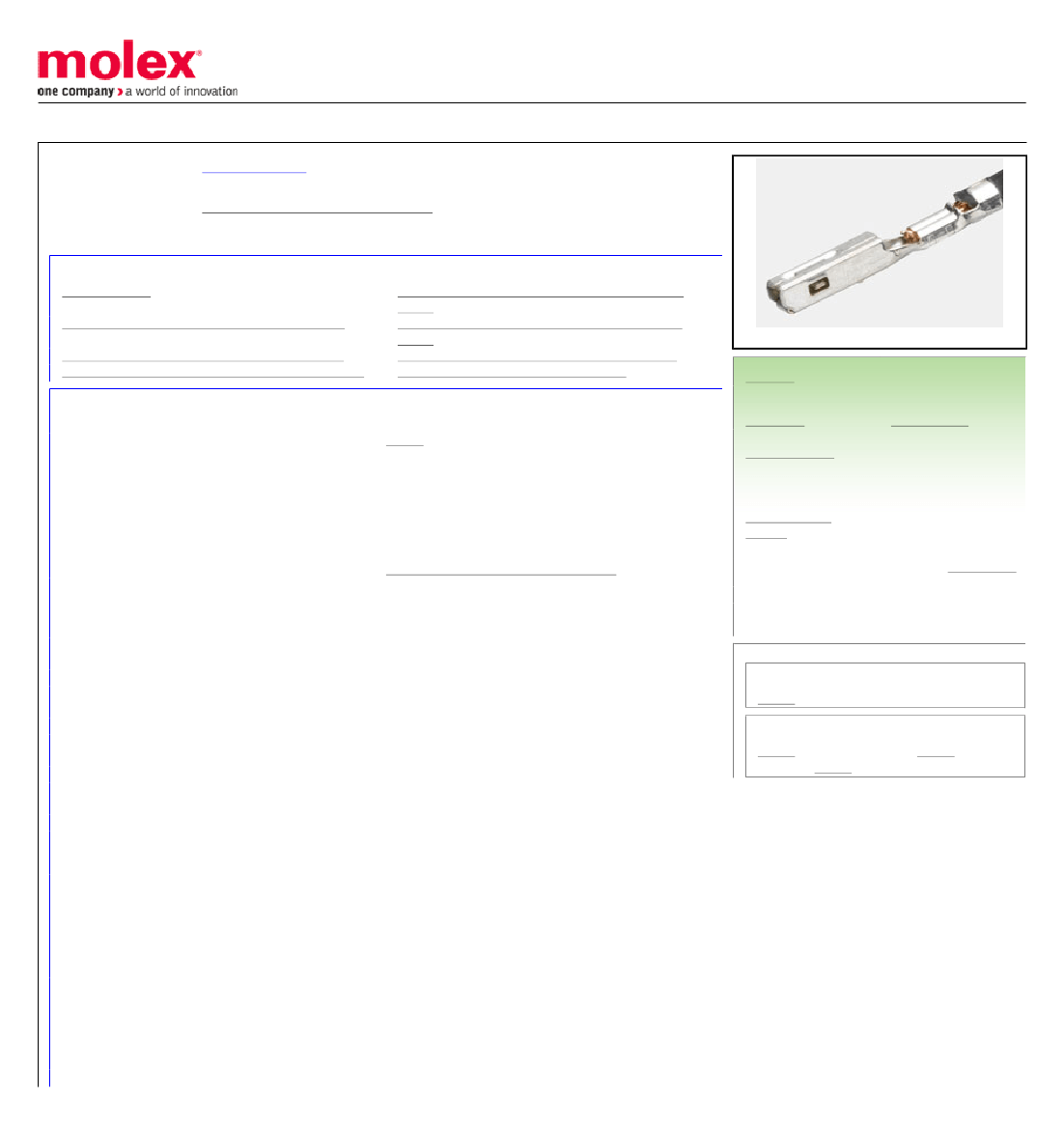

This document was generated on 10/25/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0330122022

Active

MX150™ Unsealed Connector System

MX150 Female Terminal, Tin Plating, 18 and 20 AWG, Right Reel Payoff, Use with

MX150 Unsealed Connectors. Not suitable for MX150 Sealed Connectors.

Documents:

Drawing (PDF)

Product Specification PS-33012-002-001 (PDF)

Product Specification TS-33012-002-001 (PDF)

Application Specification AS-33012-002-001 (PDF)

General

Product Family

Series

Application

Comments

Application Specification AS-33012-002-CH-001

(PDF)

Application Specification AS-33012-002-FR-001

(PDF)

Packaging Specification 313025040-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)

Halogen-Free

Status

Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Compliant

Not Contained

Crimp Quality Equipment

Overview

Product Name

UPC

Physical

Gender

Grip Code

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Reference - Drawing Numbers

Application Specification

Packaging Specification

Product Specification

Sales Drawing

Crimp Terminals

33012

Power, Wire-to-Board, Wire-to-Wire

Right Reel Payoff, Large Polarization Rib <br><br>For

automatic and semi-automatic crimping, use Left Reel

Payoff terminals. See Sales Drawing for Left Reel

Payoff Part Numbers. . <br>Not to be used with MX150

Sealed Connectors

Yes

MX150™ Unsealed Connector System

MX150

822350084260

Female

High Performance Alloy (HPA)

Tin

0.434/g

Reel

0.508µm

Crimp or Compression

2.54mm max.

18, 20

0.75-1.00

Contact Molex

14V DC

N/A

Search Parts in this Series

33012 Series

Use With

33472 Dual Row Housing, 33476 Hybrid

Housing, 33471 Single Row Housing

AS-33012-002-001, AS-33012-002-CH-001,

AS-33012-002-FR-001

313025040-000

PS-33012-002-001, TS-33012-002-001

SD-33012-002

33012-2022 (Mouser Reel) Related Products

	33012-2022 (Mouser Reel)	33012-2022 (Cut Strip)
Description	Automotive connector MX150 F TERM 18/20G B WIND REEL OF 1000	Automotive Connector MX150 F TERM 18/20G B WIND Cut Strip-100
Maker	Molex	Molex
Product Category	automotive connector	automotive connector
product	Terminals	Terminals
Type	Female	Female
Installation style	Wire	Wire
Termination type	Crimp	Crimp
Contact plating	Tin	Tin
Wire gauge range	20 AWG to 18 AWG	20 AWG to 18 AWG
series	33012	33012
Encapsulation	Reel	Cut Tape
Contact type	Receptacle	Receptacle
Current rating	22 A	22 A
Voltage rating	250 V	250 V
Contact material	High Performance Alloy (HPA)	High Performance Alloy (HPA)
Factory packaging quantity	1000	100
unit weight	434 mg	434 mg
