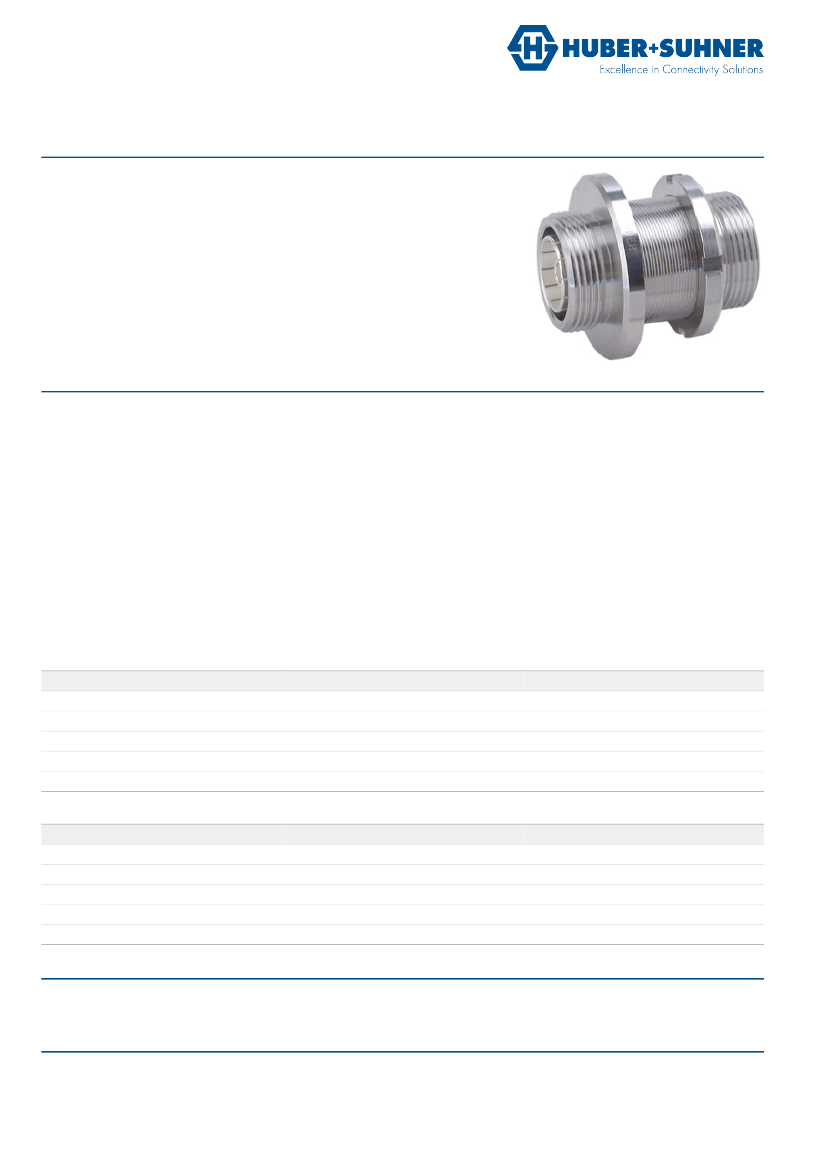

Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Frequency range
Return loss
50 Ω
7.5 GHz
DC - 4 GHz
≤ 1.02 + 0.05 f (GHz)
4 to 7.5 GHz
≥ 20 dB
Mechanical Data
Number of matings
Weight
500
0.2212 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - 7/16 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Bronze
Bronze
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Silver Plating
Silver Plating
SUCOPLATE (R) Plating
Interface - 7/16 jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Gasket
Material
Bronze
Bronze
Brass
PFA / PTFE
VMQ (Silicone rubber)
Surface Plating
Silver Plating
Silver Plating
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
Mounting hole
DCA-00013664
DOU-00008958
Ordering Information
Single package
34_716-50-0-1/003_-E
Document: DOC-0000194244 P / PDO I / date of publication: 12/4/2014 4:40:17 PM / uncontrolled copy
Page 1/2
Data Sheet
Within Series Adaptor
34_716-50-0-1/003_-
Remarks
IP rating unmated: IP 65
IP rating mated: IP 68
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194244 P / PDO I / date of publication: 12/4/2014 4:40:17 PM / uncontrolled copy
Page 2/2
