33_N-PC24-50-1/199_UE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size122KB，3 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric View All

33_N-PC24-50-1/199_UE Overview

RF Adapters - Between Series

33_N-PC24-50-1/199_UE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-PC2.4
Other features	STANDARD: IEC 60169-16, MIL-STD-348A/402
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE-FEMALE
Contact material	BERYLLIUM COPPER
Coupling type	THREADED-THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PPH
JESD-609 code	e4
MIL compliance	NO
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.08
Base Number Matches	1

Preview

Download Datasheet

View All

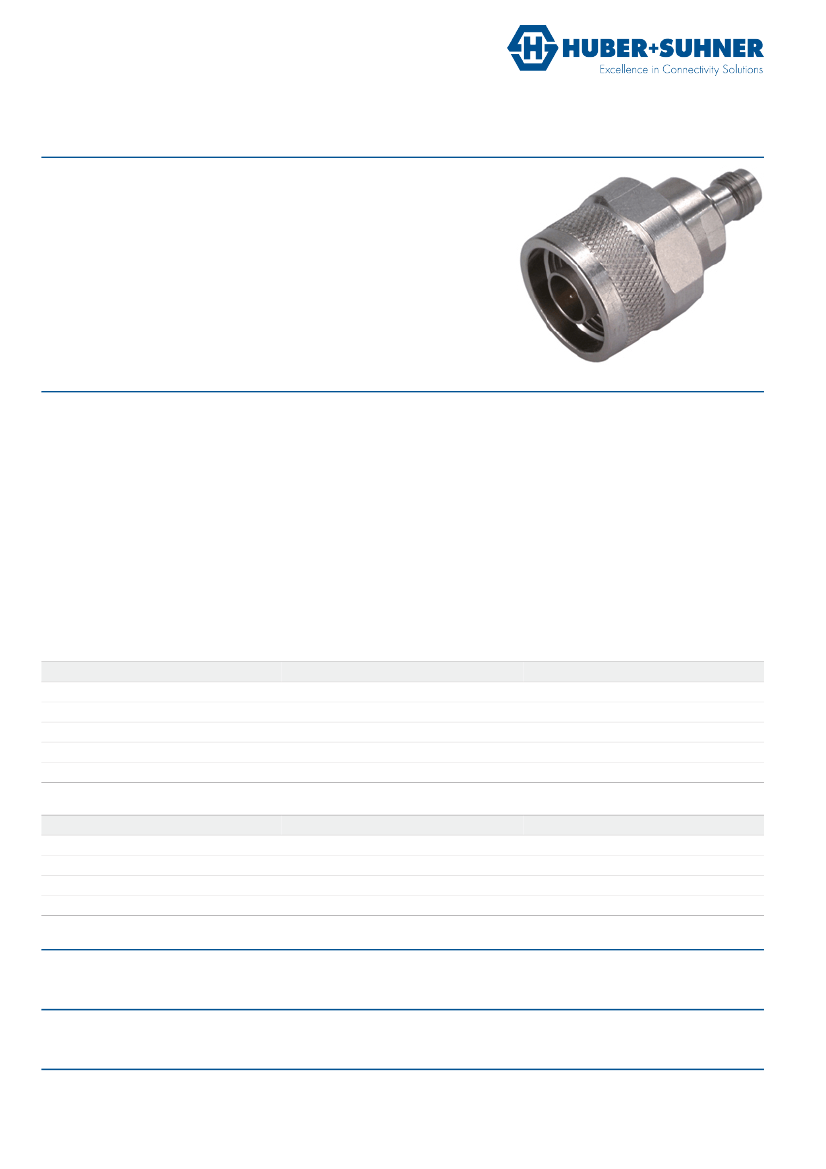

Data Sheet

Between Series Adaptor

33_N-PC24-50-1/199_U

Description

Adaptor plug/jack

N-precision plug (male) / PC 2.4 jack (female)

For Test & Measurement applications

Precision adaptor

Interface standards

Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210

Series PC 2.4 - IEC 60169-38

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Electrical length

50 Ω

18 GHz

DC to 10 GHz

≥ 32 dB

33.63 mm

10 to 18 GHz

≥ 28 dB

Mechanical Data

Number of matings

Weight

500

0.0353 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 70 °C

compliant

Material Data

Interface - N-precision plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Brass

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (without Nickel underplating)

Interface - PC 2.4 jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Surface Plating

Gold Plating (without Nickel underplating)
