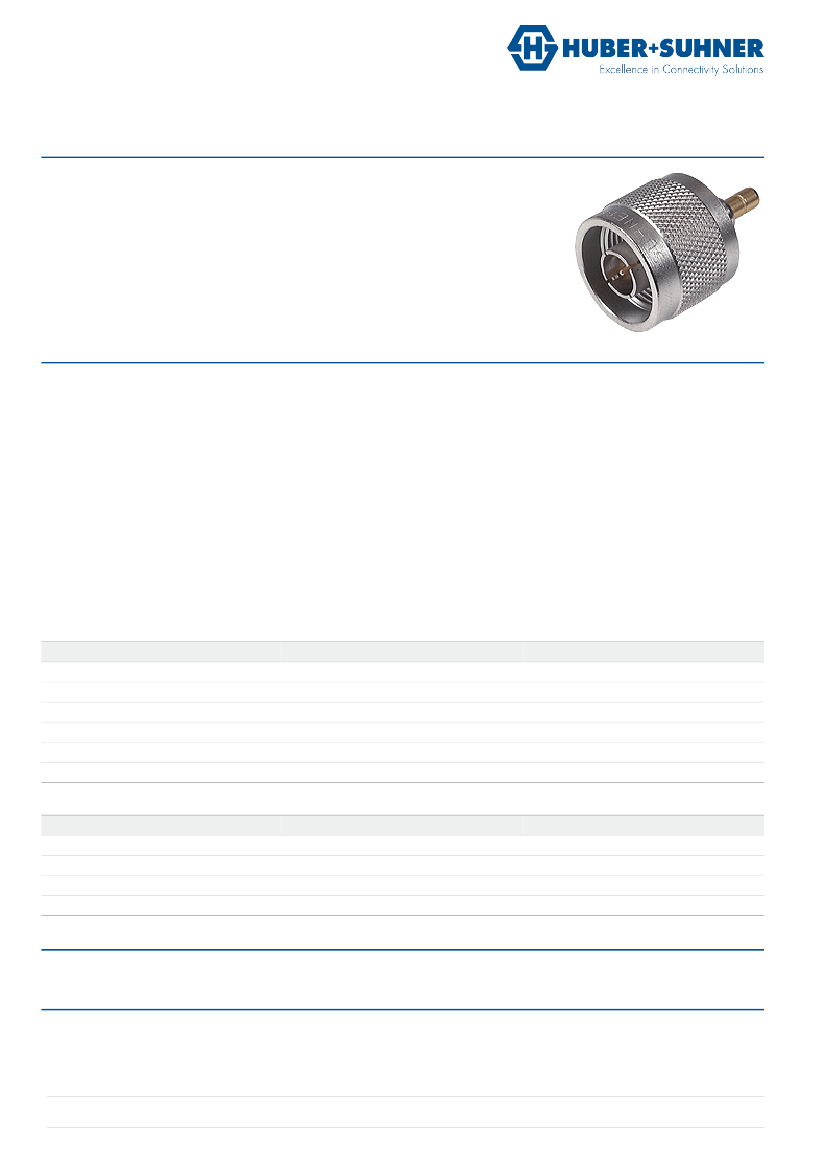

Data Sheet
Between Series Adaptor
33_N-SMB-50-1/1--_U
Description
Adaptor plug/jack
N plug (male) / SMB jack (female)
Interface standards
Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210
Series SMB - IEC 60169-10_MIL-STD-348A/311_CECC 22130
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
Frequency range
Return loss
50 Ω
4 GHz
DC - 3 GHz
≤ 1.03 + 0.08 f (GHz)
3 to 4 GHz
≥ 18 dB
Mechanical Data
Number of matings
Weight
500
0.0287 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - N plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Brass
Brass
Brass
PFA / PTFE
Brass
VMQ (Silicone rubber)
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - SMB jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Brass
Brass
Brass
PFA / PTFE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
DCA-00014303
Ordering Information
Single package
33_N-SMB-50-1/1--_UE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000195307 M / PDO D / date of publication: 12/4/2014 4:37:01 PM / uncontrolled copy
Page 1/1
