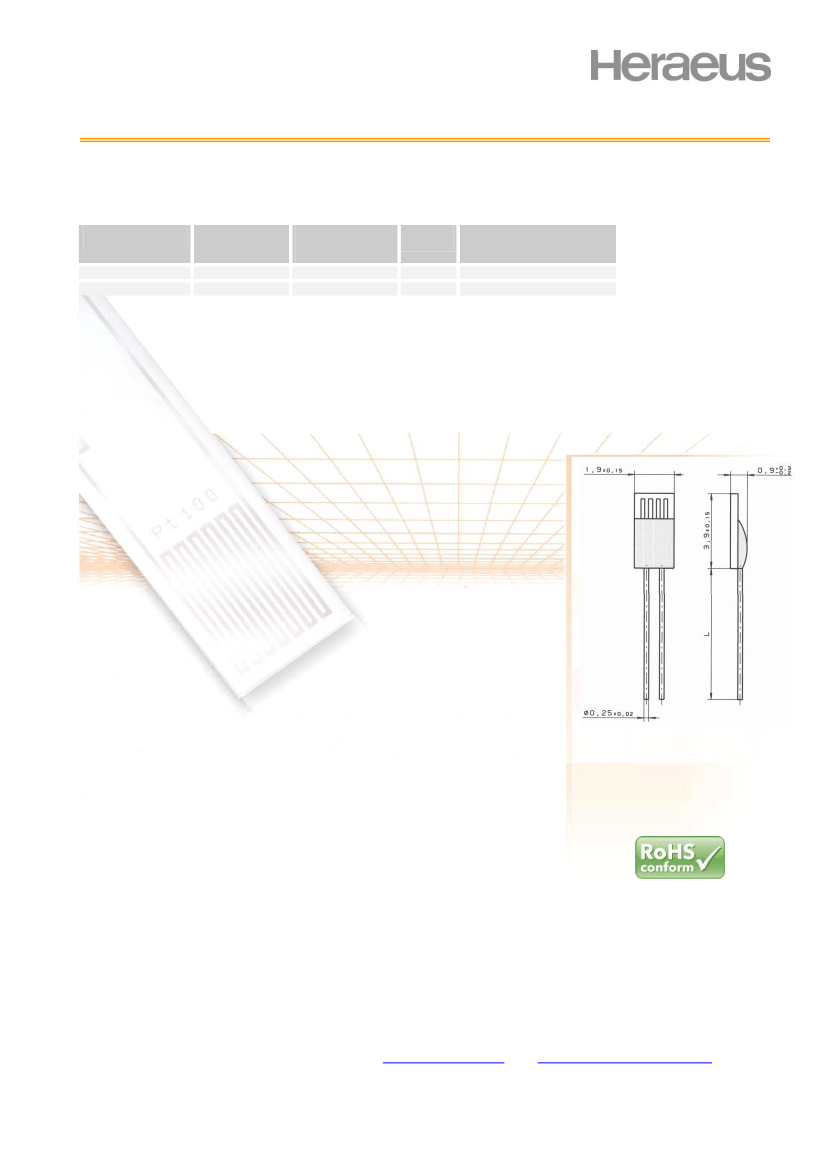

Platinum Temperature Sensor in Thin Film Technology
MN 420
M series platinum temperature sensors are characterized by long-term stability, precision over a broad temperature range
and compatibility. They are used in particular for applications with high consumption volumes, typically in the automotive,
white goods, ventilation, heating and energy generation sectors as well as in medical and industrial equipment. The type of
connection technology facilitates the construction of elements with leads up to 200 mm in length.
Nominal
Resistance R0
100 Ohm at 0°C
1000 Ohm at 0°C
Tolerance
DIN EN 60751
1996-07
Class 2B
Class B
Tolerance
DIN EN 60751
2009-05
F 0.6
F 0.3
L
1mm
150 mm
75 mm
Order Number
Plastic Bag
32 207 620
32 207 635
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Specification
Temperature range
DIN EN 60751
-70°C to +500°C (continuous operation)
(temporary use to 550°C possible)
Tolerance Class B: -70°C up to +500°C
TC = 3850 ppm/K
Ni- leads
Recommend connection technology:
Welding, Crimping and Brazing
10mm ±1mm
Unhoused for dry environments only
> 100 M at 20°C; > 2 M at 500°C
1.3 m/mm
0.3 K/mW at 0°C
Moving water (v= 0.4m/s):
Air flow (v= 2m/s)
t
0.5
= 0.07s
t
0.9
= 0.20s
t
0.5
= 3.2s
t
0.9
= 11s
Temperature coefficient
Leads
Lead lengths (L)
Ambient conditions
Insulation resistance
Connection resistance
Self heating
Response time
Measuring current
100: 0.3 to 1.0mA
1000: 0.1 to 0.3mA
(self heating has to be considered)
1. To avoid shear forces on the connection area,
the connection wires may be neither split or bent.
The bending may only take place 3 mm after the
element, using a bending or splitting tool.
2. Other nominal values, lengths and temperature
coefficients on request.
3. Due to a production-caused oxide layer coating
the leads, soft-soldering is restricted.
Other tolerances, values of resistance are available
on request.
Application advice
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
Heraeus Sensor Technology GmbH, Reinhard- Heraeus- Ring 23, 63801 Kleinostheim, Germany
Phone: +49 (0) 6181/35-8098, Fax: +49 (0)6181/35-8101, E-Mail:
info.HSND@Heraeus.com
Web:
www.heraeus-sensor-technology.com
Dokumentname: 30910020 Index D
Stand: 06/2010
