32_BNC-75-0-1/133_NE Overview

RF Adapters - Within Series

32_BNC-75-0-1/133_NE Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Adapter typeBNC-BNC
Other featuresSTANDARDS: IEC 60169-8; MIL-STD-348A/301
Body/casing typePLUG-PLUG
Characteristic impedance75 Ω
Connector typeRF CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE-MALE
Contact materialNOT SPECIFIED
Contact styleCOAX
Coupling typeBAYONET
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceYES
insulator materialPFA/PTFE
MIL complianceYES
Installation methodSTRAIGHT
Maximum operating frequency1 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Base Number Matches1

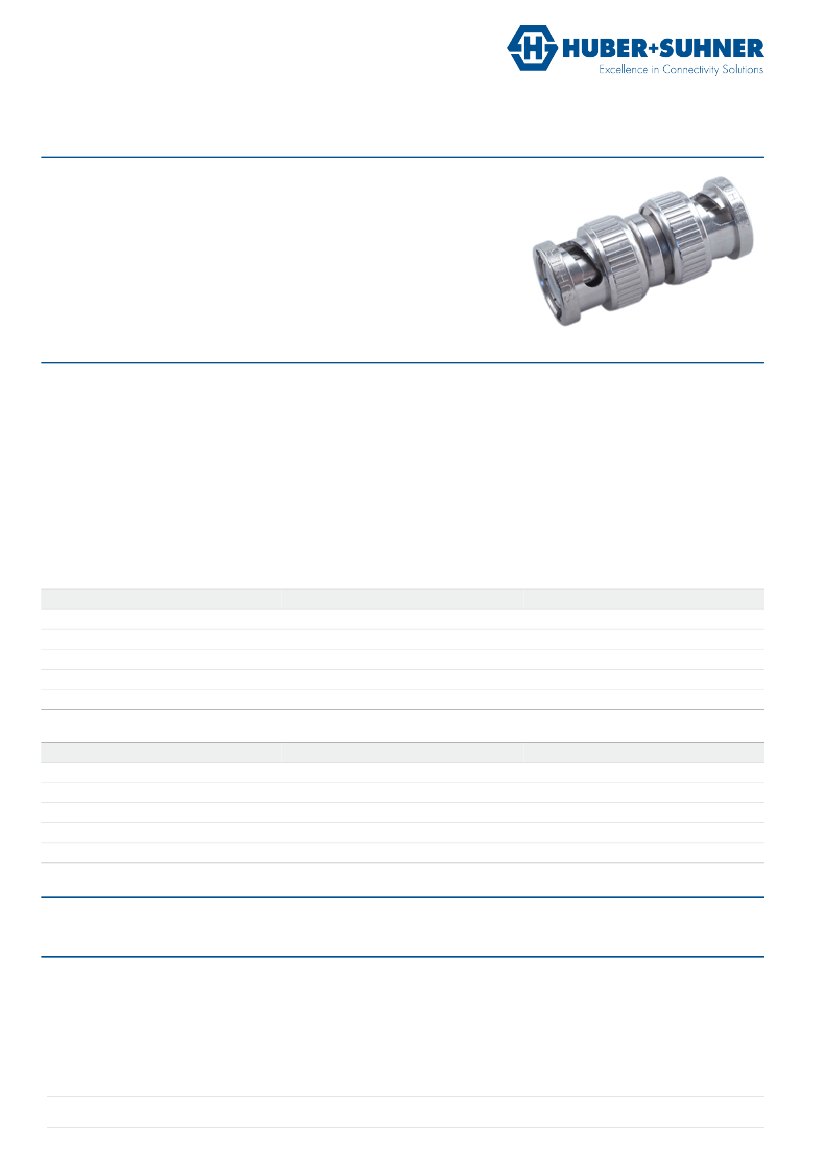

Data Sheet
Within Series Adaptor
32_BNC-75-0-1/133_N
Description
Adaptor plug/plug
BNC plug (male) / BNC plug (male)
Interface standard
Series BNC - Compatible with IEC 61169-8_MIL-STD-348A/301_CECC 22120
Technical Data
Electrical Data
Impedance
Interface frequency max.
75 Ω
1 GHz
Mechanical Data
Number of matings
Weight
500
0.0188 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 165 °C
compliant
Material Data
Interface - BNC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Brass
Brass
Brass
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - BNC plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Brass
Brass
Brass
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Surface Plating
Gold Plating (Nickel underplated)
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Catalogue drawing
DCA-00013766
Ordering Information
Single package
32_BNC-75-0-1/133_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194342 R / PDO D / date of publication: 12/4/2014 4:41:38 PM / uncontrolled copy
Page 1/1
