32_N-PC35-50-1/1--_UE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 32_N-PC35-50-1/1--_UE

Preview

32_N-PC35-50-1/1--_UE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size114KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

32_N-PC35-50-1/1--_UE Overview

RF Adapters - Between Series

32_N-PC35-50-1/1--_UE Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	N-PC3.5
Other features	STANDARDS: IEC 60169-16; MIL-STD-348A/402
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PPH
MIL compliance	YES
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.53
Base Number Matches	1

Preview

Download Datasheet

View All

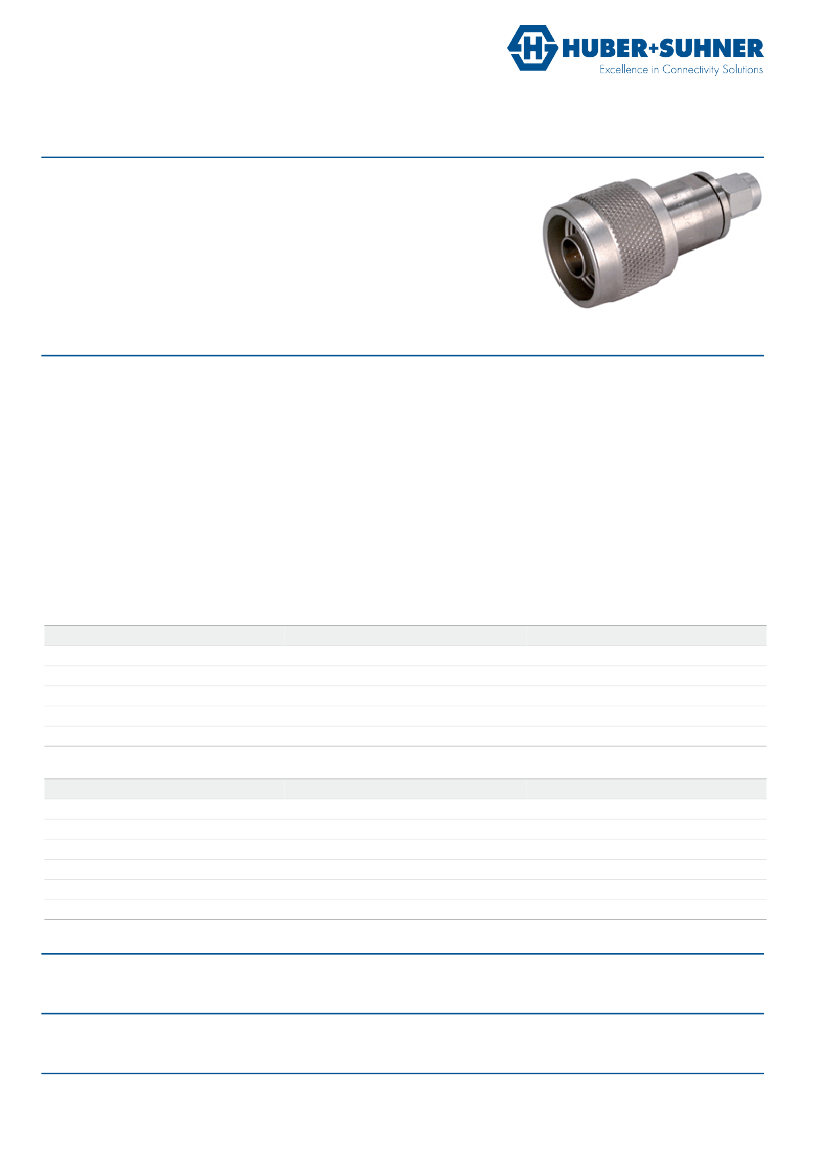

Data Sheet

Between Series Adaptor

32_N-PC35-50-1/1--_U

Description

Adaptor plug/plug

N-precision plug (male) / PC 3.5 plug (male)

For Test & Measurement applications

Precision adaptor

Interface standards

Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210

Series PC 3.5 - IEC 60169-23

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Electrical length

50 Ω

18 GHz

DC to 12.4 GHz

≥ 26 dB

41.5 mm

12.4 to 18 GHz

≥ 23 dB

Mechanical Data

Number of matings

Weight

500

0.0523 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-55 °C to 70 °C

compliant

Material Data

Interface - N-precision plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Brass

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (without Nickel underplating)

Interface - PC 3.5 plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Gasket

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Bronze

VMQ (Silicone rubber)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (without Nickel underplating)
