33_PC24-N-50-1/199_UE datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 33_PC24-N-50-1/199_UE

Preview

33_PC24-N-50-1/199_UE: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size111KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

33_PC24-N-50-1/199_UE Overview

RF Adapters - Between Series

33_PC24-N-50-1/199_UE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	PC2.4-N
Other features	STANDARDS: IEC 60169-38
Body/casing type	PLUG-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
insulator material	PPH
MIL compliance	NO
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	13.14
Base Number Matches	1

Preview

Download Datasheet

View All

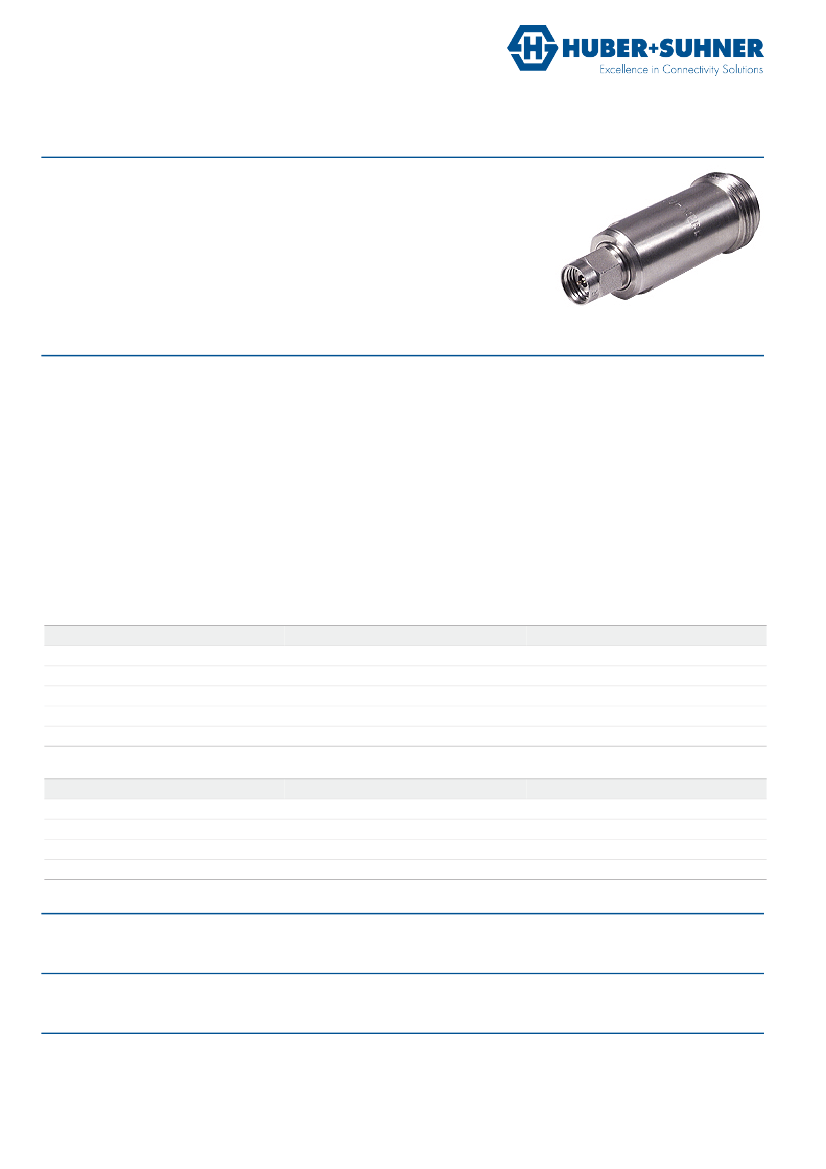

Data Sheet

Between Series Adaptor

33_PC24-N-50-1/199_U

Description

Adaptor plug/jack

PC 2.4 plug (male) / N-precision jack (female)

For Test & Measurement applications

Precision adaptor

Interface standards

Series PC 2.4 - IEC 60169-38

Series N-precision - IEC 60169-16_MIL-STD-348A/402_CECC 22210

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

Electrical length

50 Ω

18 GHz

DC to 10 GHz

≥ 32 dB

33.67 mm

10 to 18 GHz

≥ 28 dB

Mechanical Data

Number of matings

Weight

500

0.0345 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-55 °C to 70 °C

compliant

Material Data

Interface - PC 2.4 plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Stainless Steel

Surface Plating

Gold Plating (without Nickel underplating)

Interface - N-precision jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Stainless Steel

Air Dielectric - Bead - PPH

Surface Plating

Gold Plating (without Nickel underplating)
