32_4310-716-50-X1/133_WE: DescriptionRF Adapter - Series between 4.3-10 plug(m) to 7/16 plug(m), low PIM; CategoryThe connector Rf interconnection Rf adapter Rf adapter - series2; File Size1MB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

32_4310-716-50-X1/133_WE Overview

RF Adapter - Series between 4.3-10 plug(m) to 7/16 plug(m), low PIM

32_4310-716-50-X1/133_WE Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	RF Adapters - Between Series
Side 1 RF Series	4.3-10
side 1 sex	Plug (Male)
Side 1 body type	Standard
Side 1 polarity	Normal
Side 2 RF Series	7/16
side 2 sex	Plug (Male)
Side 2 body type	Bulkhead
Side 2 polarity	Normal
impedance	50 Ohms
maximum frequency	6 GHz
Main material	Brass
Contact plating	Gold
Adapter type	Straight
direction	Straight
Contact material	Brass
Installation style	Free Hanging
unit weight	117 g

Preview

Download Datasheet

View All

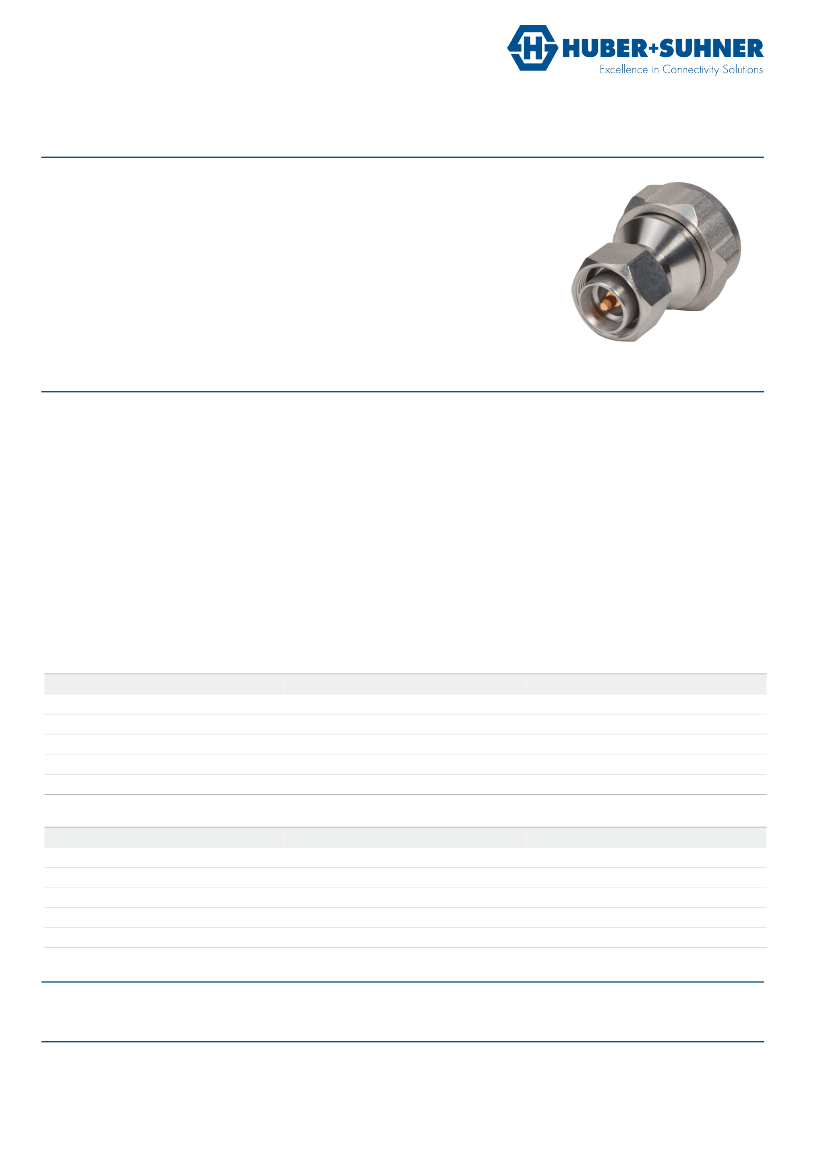

Data Sheet

Between Series Adaptor

32_4310-716-50-X1/133_W

Description

PIM Adaptor plug/plug

4.3-10 plug (male) / 7/16 plug (male)

Interface standards

Series 4.3-10 - IEC 61169-54

Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250

Benefits

Low passive intermodulation (PIM) adaptor

For Test & Measurement applications

Technical Data

Electrical Data

Impedance

Interface frequency max.

Frequency range

Return loss

PIM, 3rd order intermodulation distortion (IMD) max.

50 Ω

7.5 GHz

0 to 4 GHz

27 dB

4 to 6 GHz

25 dB

Static -166 dBc at 2x 43 dBm / 20 W carrier

Mechanical Data

Number of matings

Weight

500

0.117 kg

Environmental Data

Operating temperature

2011/65/EC (RoHS)

-55 °C to 90 °C

compliant

Material Data

Interface - 4.3-10 plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Brass

PFA / PTFE

Brass

SUCOPLATE (R) Plating

Surface Plating

Gold Plating

SUCOPLATE (R) Plating

Interface - 7/16 plug (male)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Coupling nut

Material

Brass

PFA / PTFE

Brass

SUCOPLATE (R) Plating

Surface Plating

Gold Plating

SUCOPLATE (R) Plating
