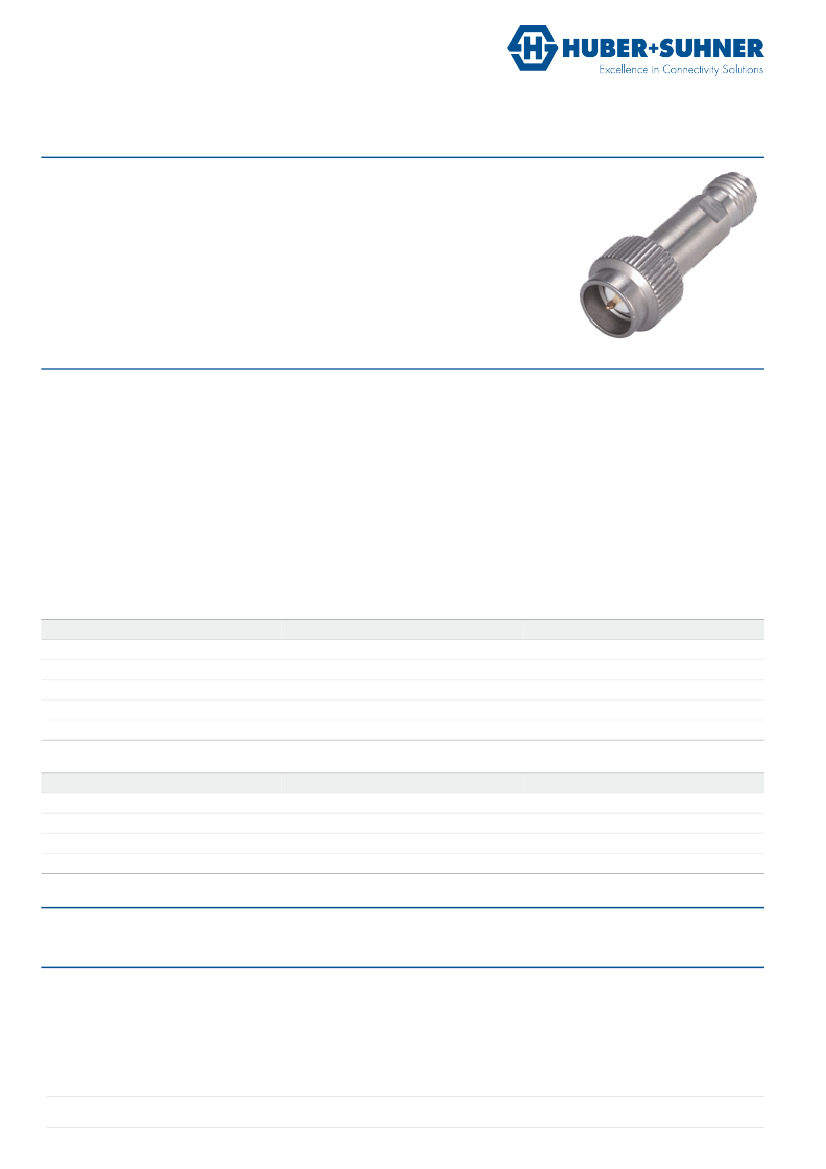

Data Sheet
Within Series Adaptor
33_SMA-50-0-52/199_N
Description
Adaptor plug/jack
SMA plug (male) / SMA jack (female)
For Test & Measurement applications
Quick-screw coupling mechanism, with reduced number of turns
Interface standard
Series SMA - IEC 60169-15_MIL-STD-348A/310_CECC 22110
Technical Data
Electrical Data
Impedance
Interface frequency max.
VSWR
50 Ω
18 GHz
DC - 18 GHz
≤ 1.05 + 0.008 f (GHz)
Mechanical Data
Number of matings
Weight
500
0.0059 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-65 °C to 125 °C
compliant
Material Data
Interface - SMA plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PFA / PTFE
Stainless Steel
Surface Plating
Gold Plating (Nickel underplated)
Interface - SMA jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Stainless Steel
Stainless Steel
PFA / PTFE
Surface Plating
Gold Plating (Nickel underplated)
Related Documents
Outline drawing
DOU-00013739
Ordering Information
Single package
33_SMA-50-0-52/199_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194319 V / PDO H / date of publication: 12/4/2014 4:33:13 PM / uncontrolled copy
