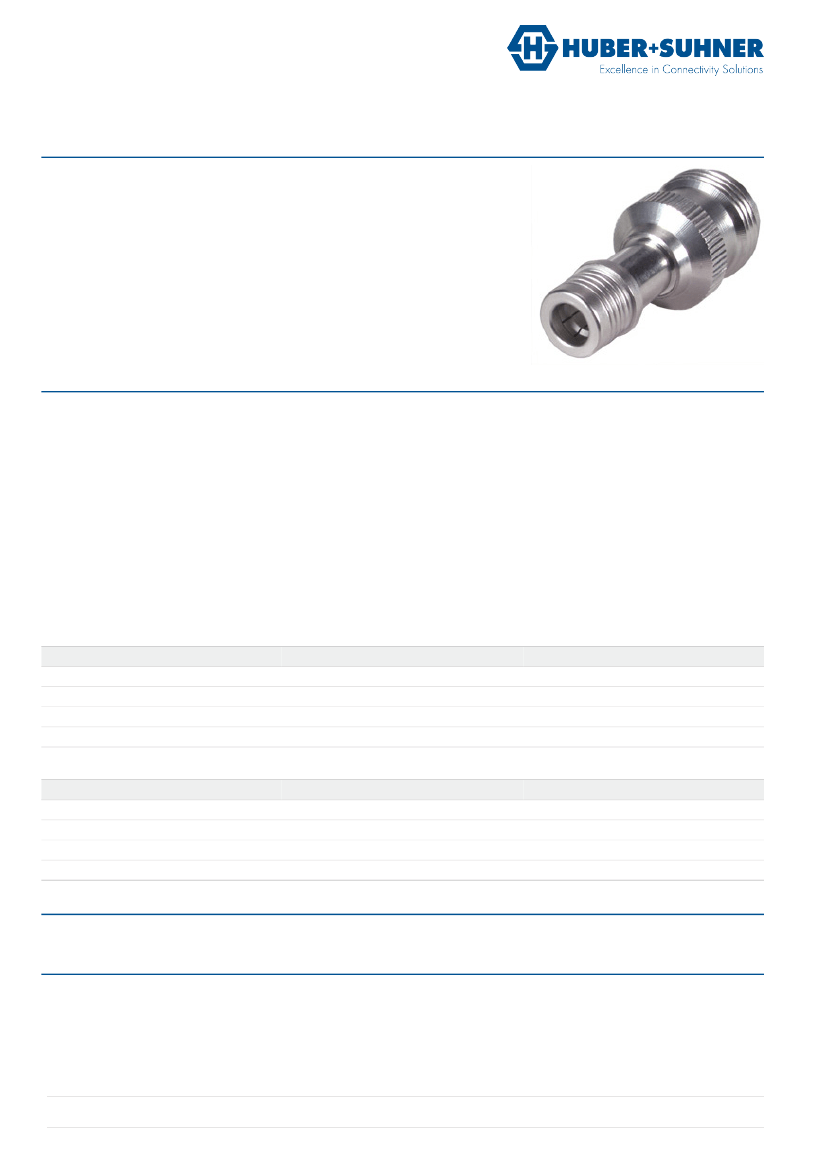

Data Sheet
Between Series Adaptor
33_QMA-N-50-1/133_N
Description
Adaptor plug/jack
QMA plug (male) / N jack (female)
QuickLock Interface
Interface standards
Series QMA - QMA QLF compliant
Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
50 Ω
18 GHz
DC to 6 GHz
≥ 34 dB
Mechanical Data
Number of matings
Weight
100
0.0249 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 85 °C
compliant
Material Data
Interface - QMA plug (male)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Bronze
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Interface - N jack (female)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Related Documents
Outline drawing
DOU-00013987
Ordering Information
Single package
33_QMA-N-50-1/133_NE
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000194784 R / PDO H / date of publication: 12/4/2014 4:38:34 PM / uncontrolled copy
Page 1/1
