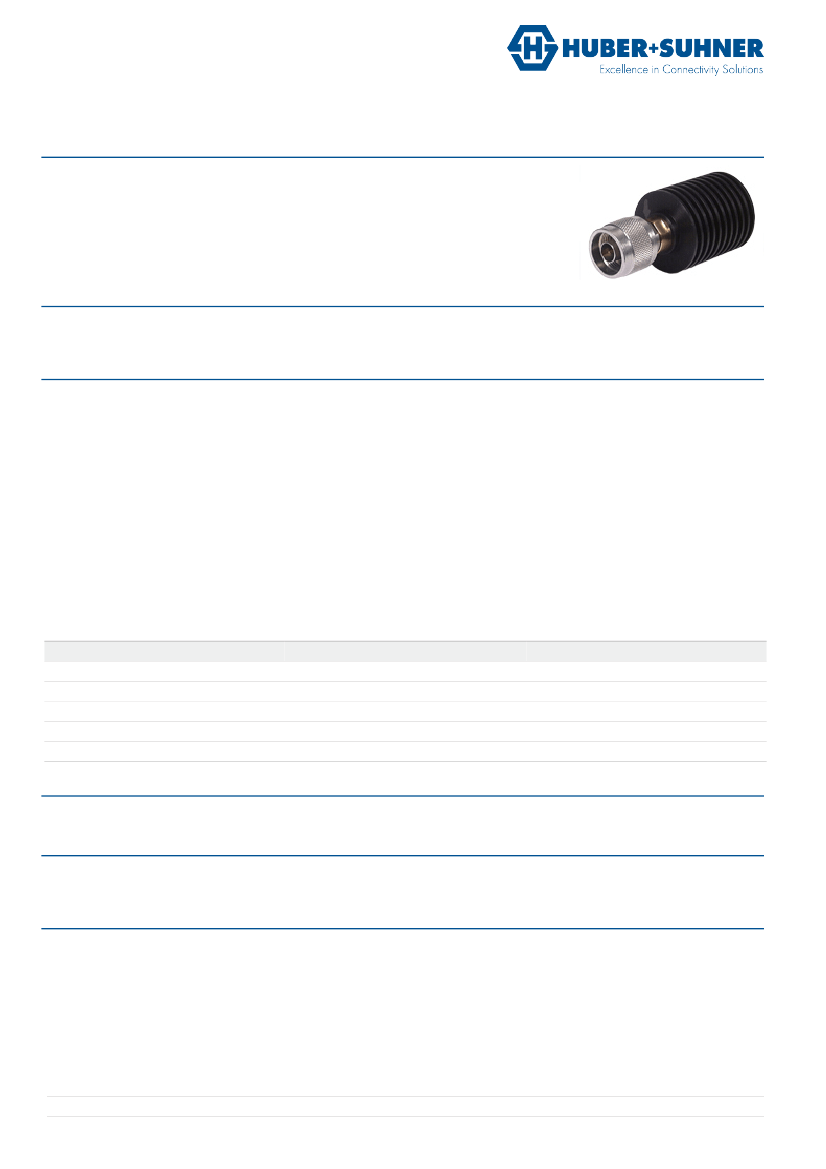

Data Sheet
RF TERMINATION
Type 6515.17.A
Description
Standard Termination, Medium Power
Product Configuration
Connector
Interface standards
N plug (male)
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Technical Data
Electrical Data
Nominal Impedance
Frequency range
Frequency sub range
VSWR max.
Power rating
50 Ω
0 to 12.4 GHz
DC to 1 GHz
1.05
1 to 4 GHz
1.1
4 to 10 GHz
1.2
10 to 12.4 GHz
1.25
15 Watt average power up to 25 ˚C ambient temperature, linearly derated to 0 Watt at 130 ˚C ambient
temperature.
1000 Watt peak power , 5 µs pulse, 0.05 % duty cycle
Mechanical Data
Weight
0.103 kg
Environmental Data
Operating temperature
2011/65/EC (RoHS)
-40 °C to 130 °C
compliant
Material Data
Piece Part
Centre contact
Outer contact
Body
Insulator
Coupling nut
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
PFA / PTFE
Brass
SUCOPLATE (R) Plating
Anodized
Surface Plating
Gold Plating (without Nickel underplating)
Related Documents
Outline drawing
DOU-00005444
Ordering Information
Single Packaging
Packaging
6515.17.A
Additional Information
Important note
WARNING Beryllia Ceramic Inside! DO NOT sand, scrap or tamper with. Dispose in accordance with all
relevant regulations.
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000178536 X / PDO F / date of publication: 24.08.2017 14:42:06 / uncontrolled copy
Page 1/1
