37_N-716-50-1/003_-E: DescriptionRF Adapters - Between Series; CategoryThe connector The connector; File Size118KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

37_N-716-50-1/003_-E Overview

RF Adapters - Between Series

37_N-716-50-1/003_-E Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	N-7/16
Other features	STANDARDS: IEC 60169-16; MIL-STD-348A/304
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	YES
insulator material	PFA/PTFE
MIL compliance	YES
Installation method	STRAIGHT
Maximum operating frequency	7.5 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	1.18
Base Number Matches	1

Preview

Download Datasheet

View All

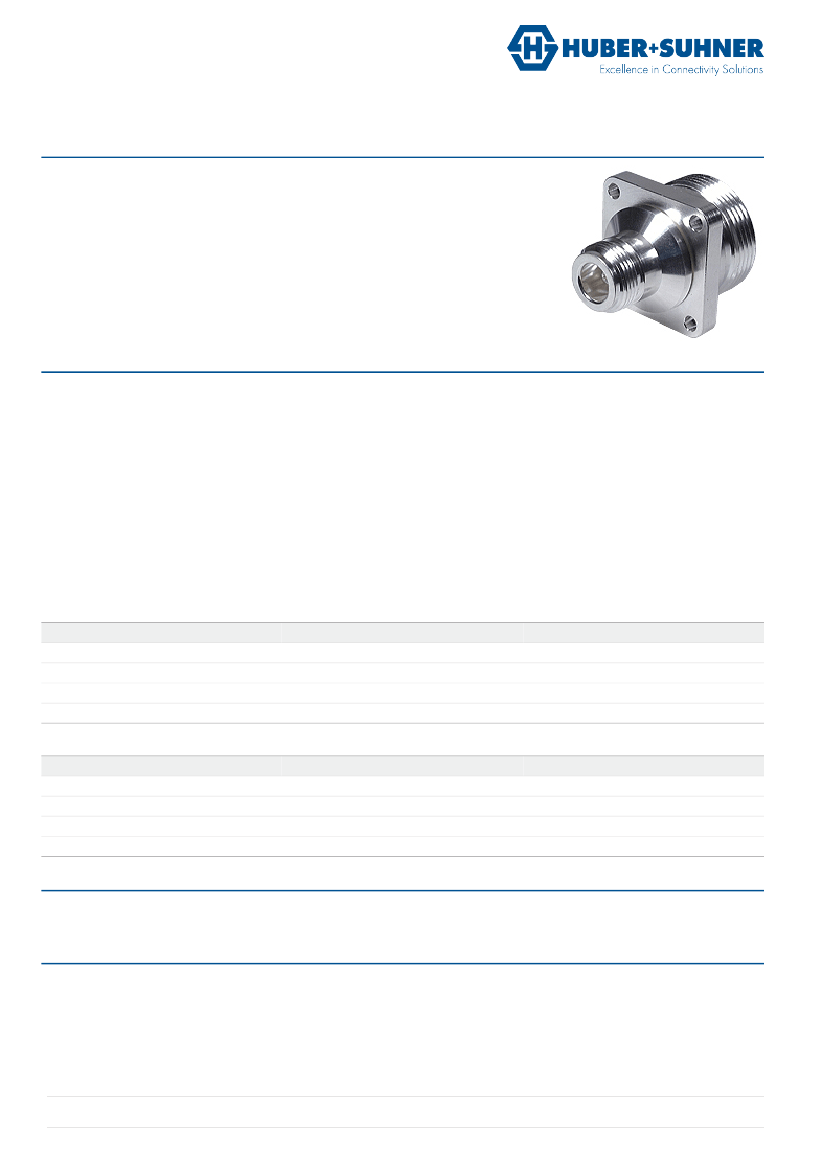

Data Sheet

Between Series Adaptor

37_N-716-50-1/003_-

Description

Panel adaptor jack/jack, flange mount

N jack (female) / 7/16 jack (female)

Interface standards

Series N - IEC 61169-16_MIL-STD-348A/304_CECC 22210

Series 7/16 - IEC 61169-4_CECC 22190_DIN 47223_VG 95250

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50 Ω

7.5 GHz

DC - 7.5 GHz

≤ 1.03 + 0.02 f (GHz)

Mechanical Data

Number of matings

Weight

500

0.1091 kg

Environmental Data

Operating temperature

2011/65/EU (RoHS)

-65 °C to 165 °C

compliant

Material Data

Interface - N jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

Silver Plating

Interface - 7/16 jack (female)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material

Bronze

Brass

PFA / PTFE

Surface Plating

Silver Plating
