WEA135-135ASP9GA datasheet, PDF

Datasheet> All Categories > The connector> Military specifications/military types> Rectangular military specifications connector> WEA135-135ASP9GA

Preview

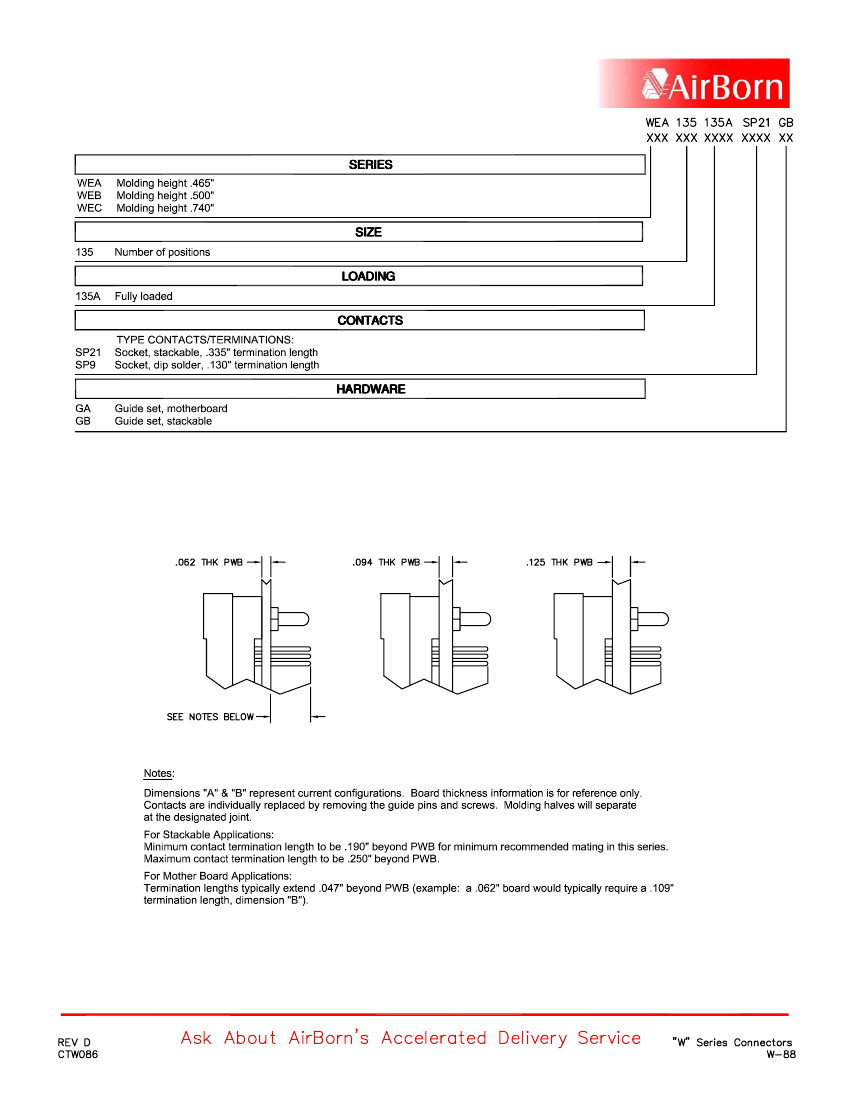

WEA135-135ASP9GA: DescriptionRectangular Mil-Spec Connector 6Row Stackable Base Board Mount; CategoryThe connector Military specifications/military types Rectangular military specifications connector; File Size227KB，2 Pages; ManufacturerAirBorn

Download Datasheet Parametric Compare View All

WEA135-135ASP9GA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WEA135-135ASP9GA	-	-	View	Buy Now

WEA135-135ASP9GA Overview

Rectangular Mil-Spec Connector 6Row Stackable Base Board Mount

WEA135-135ASP9GA Parametric

Parameter Name	Attribute value
Maker	AirBorn
Product Category	Rectangular Mil-Spec Connector
product	Connectors
Number of locations	135 Position
Number of rows	6 Row
Termination type	Solder
Installation style	Board Mount
Contact type	Socket (Female)
Contact plating	Gold
MIL type	MIL-DTL-55302
series	WE
Installation angle	Straight
Current rating	5 A
Shell material	Polyphenylene Sulfide (PPS)
Voltage rating	333 V
Contact material	Beryllium Copper
Pitch	1.27 mm
Insulation resistance	5000 MOhms
Maximum operating temperature	+ 125 C
Minimum operating temperature	- 65 C
Factory packaging quantity	1

Preview

Download Datasheet

View All

WEA135-135ASP9GA Related Products

	WEA135-135ASP9GA	WEB135-135ASP21GB	WEC135-135ASP9GA	WEB135-135ASP9GA	WEC135-135ASP21GB
Description	Rectangular Mil-Spec Connector 6Row Stackable Base Board Mount	Rectangular Mil-Spec Connector 6Row Stackable Stack Board Mount	Rectangular Mil-Spec Connector 6Row Stackable Base Board Mount	Rectangular Mil-Spec Connector 6Row Stackable Base Board Mount	Rectangular Mil-Spec Connector 6Row Stackable Stack Board Mount
Maker	AirBorn	AirBorn	AirBorn	AirBorn	AirBorn
Product Category	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector	Rectangular Mil-Spec Connector
product	Connectors	Stacker Connector	Connectors	Connectors	Stacker Connector
Number of locations	135 Position	135 Position	135 Position	135 Position	135 Position
Number of rows	6 Row	6 Row	6 Row	6 Row	6 Row
Termination type	Solder	Press Fit	Solder	Solder	Press Fit
Installation style	Board Mount	Board Mount	Board Mount	Board Mount	Board Mount
Contact type	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)	Socket (Female)
Contact plating	Gold	Gold	Gold	Gold	Gold
MIL type	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302	MIL-DTL-55302
series	WE	WE	WE	WE	WE
Installation angle	Straight	Straight	Straight	Straight	Straight
Current rating	5 A	5 A	5 A	5 A	5 A
Shell material	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)	Polyphenylene Sulfide (PPS)
Voltage rating	333 V	333 V	333 V	333 V	333 V
Contact material	Beryllium Copper	Beryllium Copper	Beryllium Copper	Beryllium Copper	Beryllium Copper
Pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Insulation resistance	5000 MOhms	5000 MOhms	5000 MOhms	5000 MOhms	5000 MOhms
Maximum operating temperature	+ 125 C	+ 125 C	+ 125 C	+ 125 C	+ 125 C
Minimum operating temperature	- 65 C	- 65 C	- 65 C	- 65 C	- 65 C
Factory packaging quantity	1	1	1	1	1
