High Power LED - White XLamp XP-G3 S Line Light Emitting Diode

XPGDWT-BS-0000-00M2E Parametric

Parameter Name	Attribute value
Maker	Cree
Product Category	High Power LED - White
product	White LEDs
Installation style	SMD/SMT
Package/box	SMD-2
lighting color	White (Cool White)
Wavelength/Color Temperature	5700 K
brightness	-
Luminous flux/radiant flux	172 lm
Color Rendering Index - CRI	70
display angle	125 deg
Lens color/type	Tinted, Clear
If - forward current	350 mA
Vf - forward voltage	2.73 V
length	3.45 mm
width	3.45 mm
high	2.26 mm
series	XLAMP XP-G3
Configuration	-
Factory packaging quantity	1000

Preview

Download Datasheet

View All

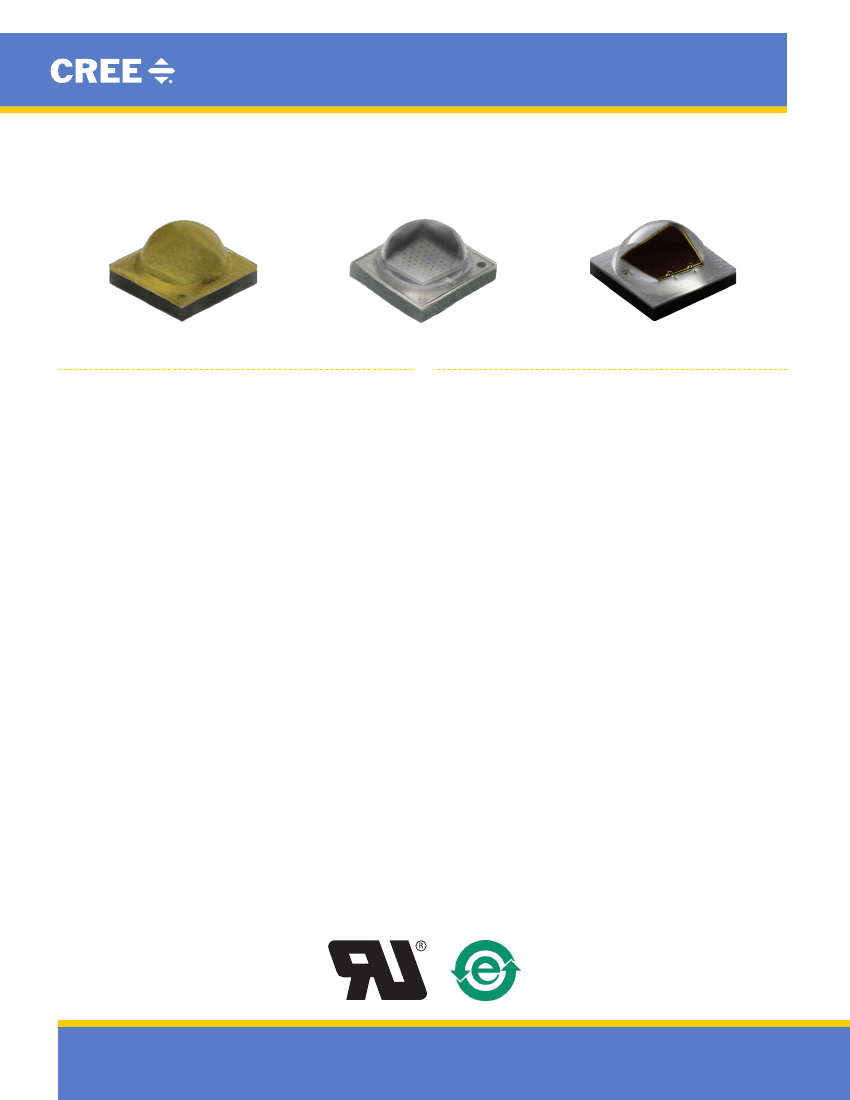

CLD-DS139 REV 3

PRODUCT FAMILY DATA SHEET

Cree

XLamp

XP-G3 LEDs

XP-G3 White

XP-G3 Royal Blue

XP-G3 Photo Red

PRODUCT DESCRIPTION

XLamp

XP-G3 LEDs are optimized for directional, high-lumen

lighting applications where efficacy and optical control are

critical, such as roadway, portable and horticulture. The compact

and proven 3.45‑mm XP platform has an excellent ecosystem

of optics and system solutions available, enabling lighting

manufacturers to simplify their design process and shorten

time-to-market.

XP‑G3 LEDs are available in royal blue, photo red and two

different white versions. White (Standard) delivers best-in-class

TM‑21 lifetimes and color stability over time. White (S Line)

improves on the Standard version: better system‑level reliability

through switching and dimming cycles, improved resistance to

sulfur exposure and higher efficacy. With this S Line version, Cree

delivers high‑power LED technology that is optimized for robust

lighting applications where sensors and the internet-of-things

(IOT) are becoming common.

FEATURES

•

Available in no CRI minimum white, 70-, 80- and 90-CRI

white, royal blue & photo red

ANSI‑compatible chromaticity bins

3-step and 5-step options

White binned at 85 °C, royal blue & photo red binned at

25 °C

Maximum drive current: white, royal blue: 2000 mA, photo

red: 1500 mA

Low thermal resistance: white: 3 °C/W, royal blue: 2 °C/W,

photo red: 2.5 °C/W

Wide viewing angle: 125°–130°

Unlimited floor life at ≤ 30 ºC/85% RH

Reflow solderable ‑ JEDEC J‑STD‑020C

Electrically neutral thermal path

RoHS and REACh compliant

recognized component (E349212)

WWW.CREE.COM/XLAMP

, the Cree logo, XLamp

and EasyWhite

are registered trademarks of Cree, Inc. UL

and the UR logo are registered trademarks of UL LLC. Other trademarks, product, and

company names are the property of their respective owners and do not imply specific product and/or vendor endorsement, sponsorship or association.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

XLAMP

XP-G3 LED

TABLE OF CONTENTS

Characteristics ...................................................................................................................................................................................................... 3

Flux Characteristics - White (Standard) ............................................................................................................................................................... 4

Flux Characteristics ‑ White (S Line)

..................................................................................................................................................................13

Flux Characteristics - Color ................................................................................................................................................................................15

Relative Spectral Power Distribution - White (Standard) ..................................................................................................................................16

Relative Spectral Power Distribution ‑ White (S Line)

.......................................................................................................................................16

Relative Spectral Power Distribution - Color .....................................................................................................................................................17

Relative Flux vs. Junction Temperature ‑ White (Standard)

.............................................................................................................................17

Relative Flux vs. Junction Temperature ‑ White (S Line)

..................................................................................................................................18

Relative Flux vs. Junction Temperature ‑ Color

.................................................................................................................................................18

Electrical Characteristics - White (Standard) ....................................................................................................................................................19

Electrical Characteristics ‑ White (S Line)

.........................................................................................................................................................19

Electrical Characteristics - Color ........................................................................................................................................................................20

Relative Luminous Flux vs. Current - White (Standard) ....................................................................................................................................20

Relative Luminous Flux vs. Current ‑ White (S Line)

.........................................................................................................................................21

Relative Radiant Flux vs. Current - Color ...........................................................................................................................................................21

Relative Chromaticity vs. Current and Temperature

.........................................................................................................................................22

Typical Spatial Distribution ‑ White (Standard)

.................................................................................................................................................23

Typical Spatial Distribution ‑ White (S Line)

......................................................................................................................................................23

Typical Spatial Distribution ‑ Color

.....................................................................................................................................................................24

Thermal Design

...................................................................................................................................................................................................25

Performance Groups - Luminous Flux ...............................................................................................................................................................26

Performance Groups - Radiant Flux ...................................................................................................................................................................26

Performance Groups - Peak Wavelength...........................................................................................................................................................27

Performance Groups - Forward Voltage ............................................................................................................................................................27

Performance Groups ‑ Chromaticity

..................................................................................................................................................................28

Cree’s Standard Chromaticity Regions Plotted on the 1931 CIE Curve

...........................................................................................................32

Cree’s Standard Cool White Kits Plotted on ANSI Standard Chromaticity Regions

........................................................................................34

Cree’s Standard Warm and Neutral White Kits Plotted on ANSI Standard Chromaticity Regions

.................................................................35

Cree’s EasyWhite

White Kits Plotted on ANSI Standard Chromaticity Regions

............................................................................................36

Cree’s Standard Chromaticity Kits

.....................................................................................................................................................................37

Bin and Order Code Formats ..............................................................................................................................................................................38

Reflow Soldering Characteristics

.......................................................................................................................................................................39

Notes ...................................................................................................................................................................................................................40

Mechanical Dimensions .....................................................................................................................................................................................42

Tape and Reel

......................................................................................................................................................................................................43

Packaging ............................................................................................................................................................................................................44

, the Cree logo, XLamp

and EasyWhite

are registered trademarks of Cree,

Inc. UL

and the UR logo are registered trademarks of UL LLC. Other trademarks, product, and company names are the property of their respective owners and do not imply specific product and/or vendor

endorsement, sponsorship or association.
