Tilt Sensor Switch
Item No.
Page
●

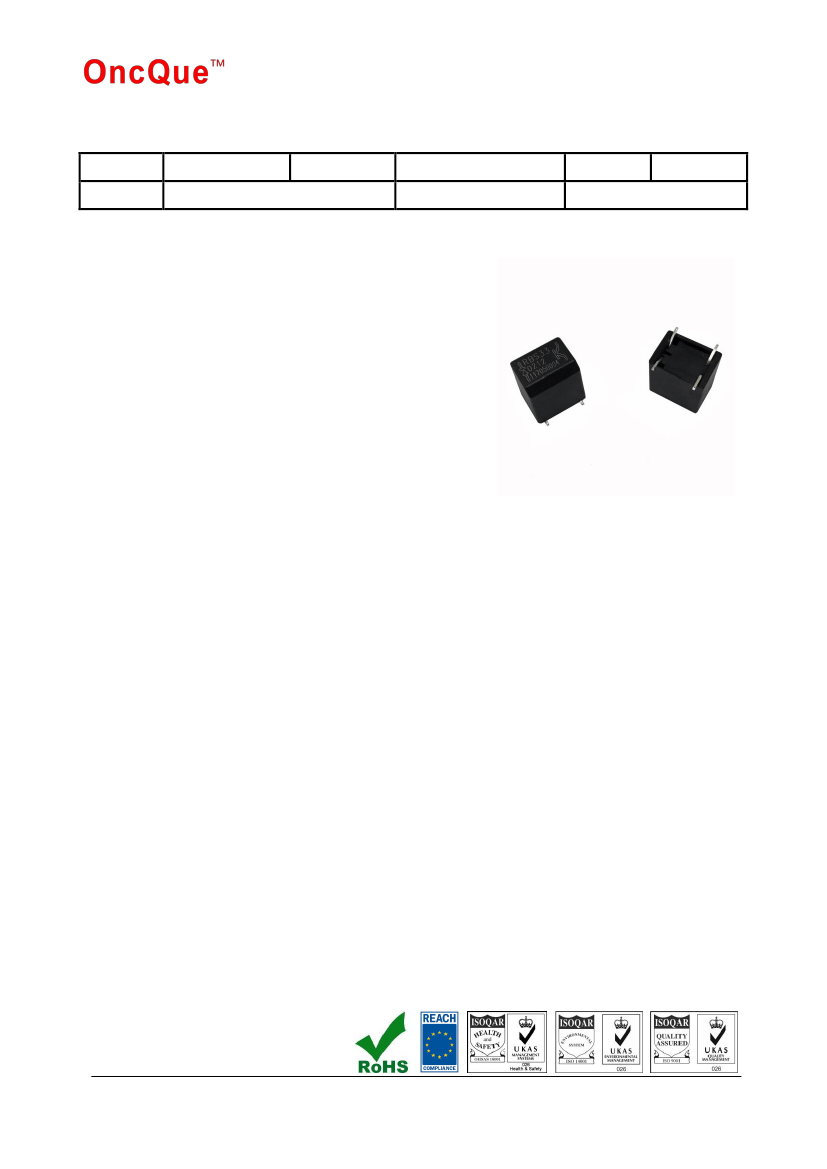

FUNCTIONS
1. Tilt Angles: 20° within a 360° radius
2. Suitable for horizontal PCB
3. Vibration Detecting
●
APPLICATIONS
1.
2.
3.
4.
5.
6.
Automatically shut off for home appliances
Automatically shut off for Sporting equipment
Alarm system
Anti-theft / Anti-tamper devices
Being motion detection (personal locator)
Wake up systems for power saving, such like
remote controllers
7. Automatically shut off for motorcycle when tilt
8. Earthquake Detecting
●
FEATURES
1. Housing made of high insulation plastic material, free from electric conduction and
rust problem.
2. Detecting with photo transistors, generating highly reliable and stable signals.
3. All plastic materials subject to industrial purpose, resist high temperature and meet
fireproof function.
4. Simple ON and OFF signals, easy for design.
5. RoHS compliance, an ideal substitute for mercury switch.
6. A more economical tilt and vibration detection option than IC design solution.
7. All made in Taiwan and examined before shipment.
RBS330212T
Description
Photoelectric
Publish Date
Version
13
1 of 12
Jun. 29, 2018
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
PATENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
Taiwan Patent No. I 310952
Taiwan Patent No. M 450817
Japan Patent No. 4384217
Japan Patent No. 3148127
U.S.A. Patent No. US 6,800,841 B1
U.S.A. Patent No. US 7,402,791 B2
China Patent No. ZL 200610083013.5
China Patent No. ZL 200820126206.9
China Patent No. ZL 201220539712.7
RBS330212T
Description
Photoelectric
Publish Date
Version
13
2 of 12
Jun. 29, 2018
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS330212T
Description
Photoelectric
Publish Date
Version
13
3 of 12
Jun. 29, 2018

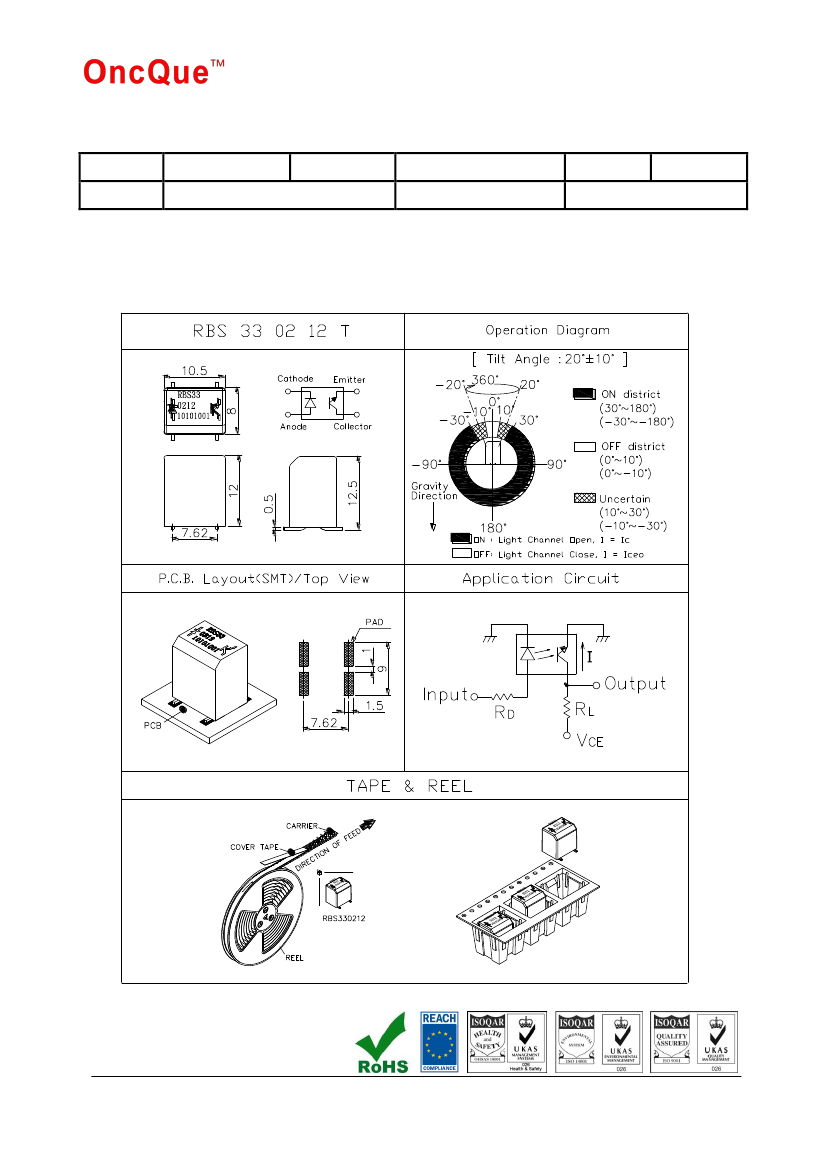

DIMENSIONS / OPERATION / P.C.B. LAYOUT (Unit: mm, Tolerance: ±0.25mm)
Fig. 1
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS330212T
Description
Photoelectric
Publish Date
Version
13
4 of 12
Jun. 29, 2018
Current/Voltage Suggested
Input Current (mA)
10
Operating Voltage (V)
3.3
Condition
V
CE
=3.3V
R
D
=200 ohm
R
L
=33K ohm
V
CE
=5V
R
D
=390 ohm
R
L
=33K ohm
10
5
＊Please
refer to above Application Circuit for designing electrical circuit.
●
Absolute Maximum Rating（Ta=25°C）
Item
Power Dissipation
Reverse Voltage
Input
Forward Current
Peak Forward Current (*1)
Collector Power Dissipation
Collector Current
Output
C-E Voltage
E-C Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (*2)
(*1) tw=100 uSec., T=10 mSec.
(*2) t=5 Sec
V
CEO
V
ECO
Topr
Tstg
Tsol
30
5
-25~+85
-40~+85
260
V
V
°C
°C
°C
I
F
I
FP
P
C
I
C
50
1
100
20
mA
A
mW
mA
Symbol
Pd
V
R
Rating
75
5
Unit
mW
V
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
OncQue Corporation
大日科技股½有限公司
Tilt Sensor Switch
Item No.
Page
●
RBS330212T
Description
Photoelectric
Publish Date
Version
13
5 of 12
Jun. 29, 2018
Electrical Optical Characteristics (Ta=25°C)
Parameter
Forward Voltage
Reverse Current
Peak Wavelength
Dark Current
C-E Saturation Voltage
Light Current
Rise Time
Fall Time
Operation Diagram
Symbol
V
F
I
R
λp
Iceo
V
CE
(sat)
I
C
Tr
Tf
θ
Condition
I
F
=20mA
V
R
=5V
I
F
=10mA
V
CE
=10V
I
C
=0.25mA
I
F
=20mA
V
CE
=5V
I
F
=20mA
I
C
=0.8mA
V
CC
=30V
R
L
=1KΩ
Fig. 1
－
－
0.5
－
－
10
Min.
－
－
Typ.
1.2
－
940
－
－
5
5
5
20
2
0.4
－
－
－
30
Max.
1.5
10
Unit
V
μA
nm
μA
V
mA
μsec
μsec
∘
No.1, Jingke 3rd Rd., Nantun Dist.,
Taichung City 40852, Taiwan
http://www.oncque.com
Tel: +886-4-2358-8178
Fax: +886-4-2358-3555
E-mail: oncque@oncque.com.tw
