2xØ3.10±0.12x11.18 DP
RECOMMENDED SCREW: 6-19 [M3.63 x 1.34]
THREAD-FORMING SCREW,
TORQUE: 11-15 IN-LB [1.24-1.70 NM]
39.4
24.7
11.4
6.1
4.1
REVISIONS
REV
A1
ECO
--
DESCRIPTION
RELEASE NEW DRAWING
DATE
19JUN18
BY
JONY
APPR
TOMMY
RESERVOIR

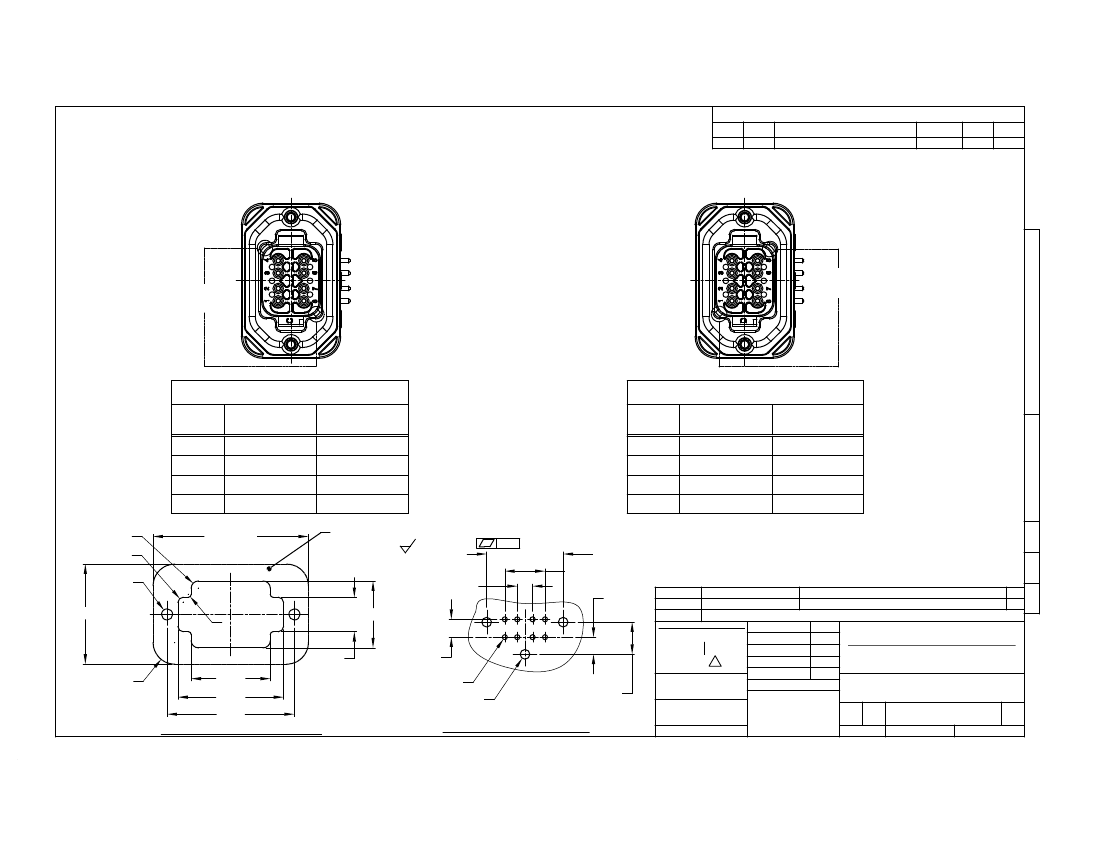

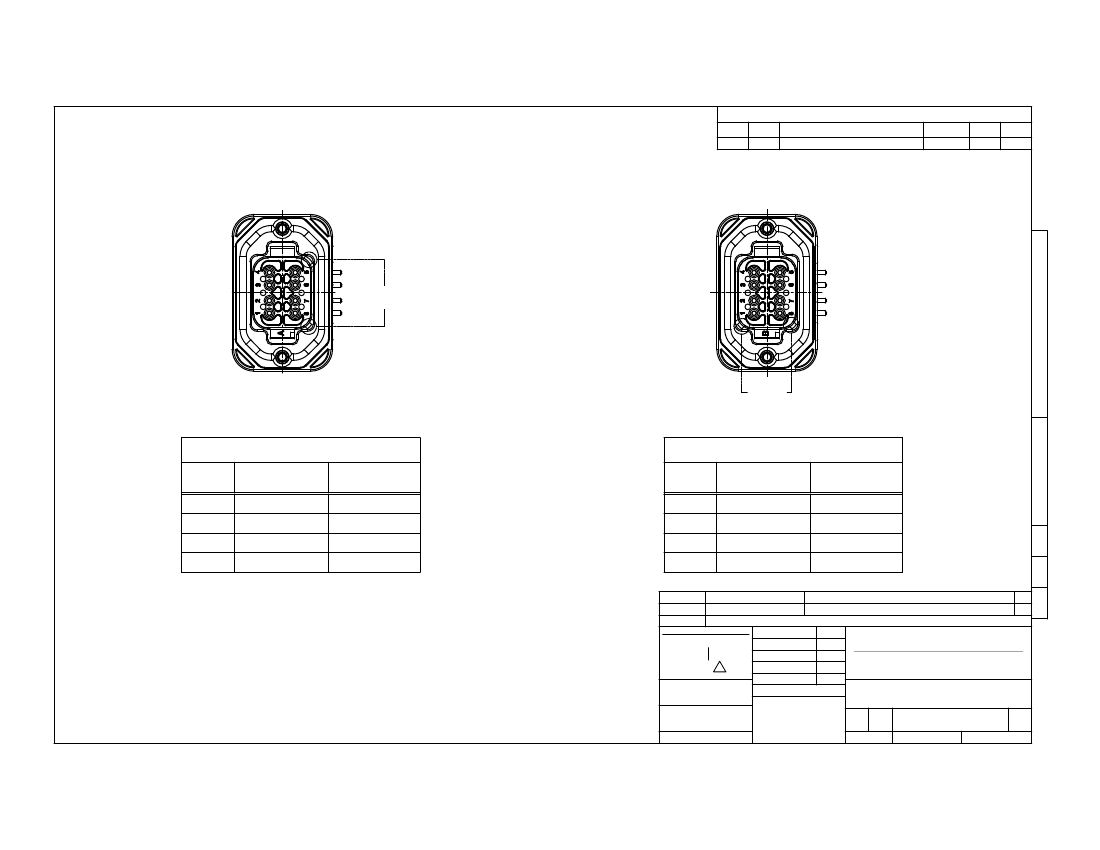

TITLE:

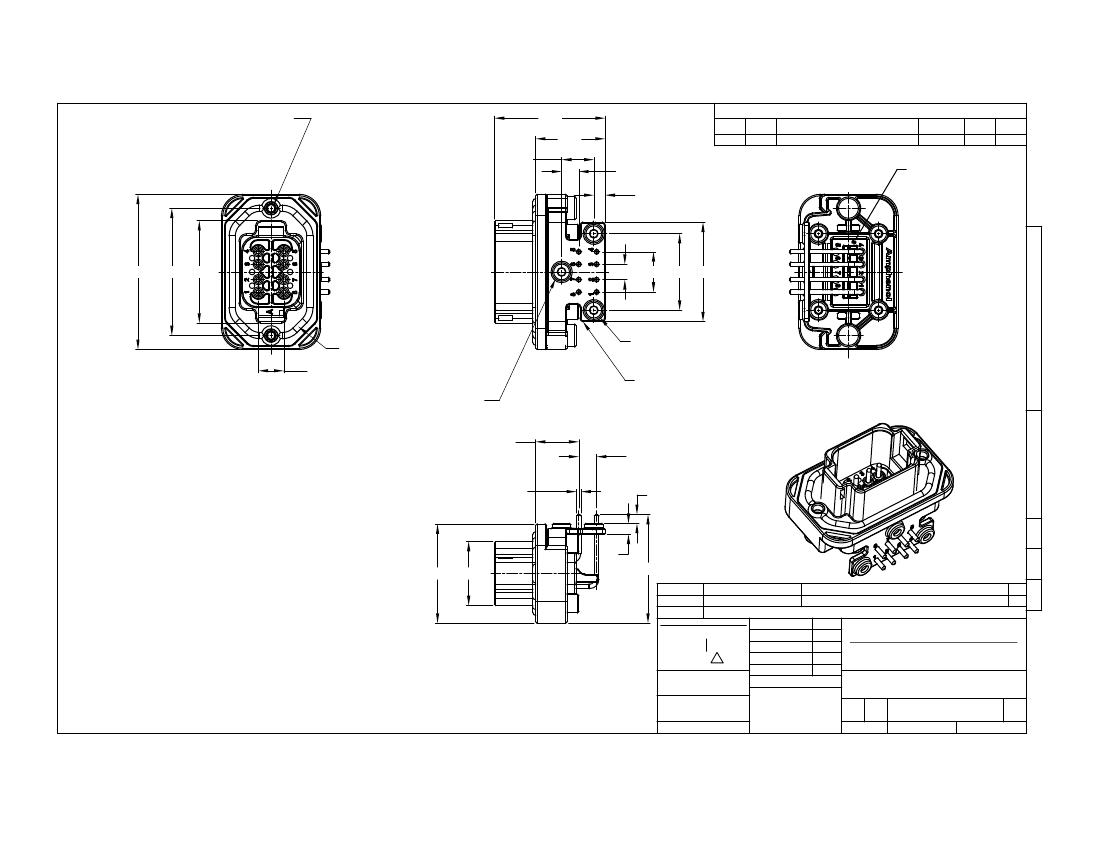

PCB MOUNT RECEPTACLE,8PIN,RA FLANGE,AT SERIES
55.1
45.2 36.5
5.5
14.3 27.2 35.3
FLANGE SEAL
9.1
3xØ6.6
PIN SPACER
3xØ2.79±0.12
RECOMMENDED SCREW: 4-20 [M3.12 x 1.27]
THREAD-FORMING SCREW,
TORQUE:6-10 IN-LB [0.68-1.13 NM]
NOTES: UNLESS OTHERWISE SPECIFIED
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL:SILICONE RUBBER
CONTACT: COPPER ALLOY
2. MODIFICATIONS: FLANGE,PCB MOUNT,RIGHT ANGLE
3. SPECIFICATIONS:
3.1 CURRENT RATING: 13 AMPS
3.2 OPERATING TEMPERATURE: -55°C TO +125°C
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
4. MATING PART: AT06-08S* PLUG
( * = MODIFICATIONS )
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
3.9
35.3
22.8
38.6
AT13-08PX-BMXX
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
DWG NO:
15.3
6.4
8xØ1.58
AT13-08PX-BMXX
3.1±0.4
REV:
A1
SH:
1
OF:
ITEM
3
QUANTITY
1)
2)
1
2
3
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
JONY.XIE
JONY.XIE
TOMMY.XIE
19JUN18
19JUN18
19JUN18
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PCB MOUNT RECEPTACLE,8PIN
RA FLANGE,AT SERIES
TYPE
DWG NO:
B C-
NONE
AT13-08PX-BMXX
SHEET
REVISION
A1
3
1
OF
REVISIONS
REV
A1
ECO
--
DESCRIPTION
RELEASE NEW DRAWING
DATE
19JUN18
BY
JONY
APPR
TOMMY
P/N AT13-08PA-BMXX
KEY-A CONFIGURATION
STANDARD COLOR: GREY
P/N AT13-08PB-BMXX
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
TITLE:
PCB MOUNT RECEPTACLE,8PIN,RA FLANGE,AT SERIES
KEYWAY
(2)PLACES
KEYWAY
(2)PLACES
DWG NO:
AT13-08PA-BMXX VARIANTS
CONTACT POTTING OR NOT
PLATING
IN RESERVOIR
GOLD
GOLD
TIN
TIN
NO POTTING
POTTING
NO POTTING
POTTING
PART NUMBER
AT13-08PA-BM01
AT13-08PA-BM02
AT13-08PA-BM03
AT13-08PA-BM04
AT13-08PB-BMXX VARIANTS
CONTACT POTTING OR NOT
PLATING
IN RESERVOIR
GOLD
GOLD
TIN
TIN
NO POTTING
POTTING
NO POTTING
POTTING
PART NUMBER
AT13-08PB-BM01
AT13-08PB-BM02
AT13-08PB-BM03
AT13-08PB-BM04
AT13-08PX-BMXX
REV:
A1
SH:
2
OF:
QUANTITY
1)
2)
1
2
3
AT13-08PX-BMXX
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
3
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
JONY.XIE
ORION.LI
TOMMY.XIE
19JUN18
19JUN18
19JUN18
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PCB MOUNT RECEPTACLE,8PIN
RA FLANGE,AT SERIES
TYPE
DWG NO:
B C-
NONE
AT13-08PX-BMXX
SHEET
REVISION
A1
3
2
OF
REVISIONS
REV
A1
ECO
--
DESCRIPTION
RELEASE NEW DRAWING
DATE
19JUN18
BY
JONY
APPR
TOMMY
P/N AT13-08PC-BMXX
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N AT13-08PD-BMXX
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
PCB MOUNT RECEPTACLE,8PIN,RA FLANGE,AT SERIES
KEYWAY
(2)PLACES
KEYWAY
(2)PLACES
AT13-08PC-BMXX VARIANTS
CONTACT POTTING OR NOT
PLATING
IN RESERVOIR
GOLD
GOLD
TIN
TIN
4xR2.54
4xR1.78
2xØ3.94
35.47 MIN.
23.77
5.45±0.05
6.10±0.10
4xR1.02
NO POTTING
POTTING
NO POTTING
POTTING
55.12 MIN.
PART NUMBER
AT13-08PC-BM01
AT13-08PC-BM02
AT13-08PC-BM03
AT13-08PC-BM04
INTERNAL SEALING SURFACE
FINISH TO BE 3.2 OR BETTER
AT13-08PD-BMXX VARIANTS
CONTACT POTTING OR NOT
PLATING
IN RESERVOIR
GOLD
GOLD
TIN
TIN
NO POTTING
POTTING
NO POTTING
POTTING
PART NUMBER
AT13-08PD-BM01
AT13-08PD-BM02
AT13-08PD-BM03
AT13-08PD-BM04
DWG NO:
AT13-08PX-BMXX
REV:
0.13
A1
27.18±0.10
14.29±0.08
AT13-08PX-BMXX
PART NUMBER
DESCRIPTION
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
SH:
3
OF:
ITEM
3
QUANTITY
1)
2)
1
2
3
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
X
DATE
12.19
4xR7.62 MAX.
28.07
37.47
45.21
RECOMMENDED PANEL CUTOUT
6.35±0.05
8xØ1.80
+0.1
0
3xØ3.43
JONY.XIE
ORION.LI
TOMMY.XIE
19JUN18
19JUN18
19JUN18
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
MATERIAL SPECIFICATIONS:
CUSTOMER:
11.43±0.10
PROCESS SPECIFICATIONS:
RECOMMENDED PCB LAYOUT
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PCB MOUNT RECEPTACLE,8PIN
RA FLANGE,AT SERIES
TYPE
DWG NO:
B C-
NONE
AT13-08PX-BMXX
SHEET
REVISION
A1
3
3
OF
