831390CAB.5.EX2

Description
Basic/Snap Action Switch SLDSW 5A 0.5M RLR 79210433
CategoryMechanical and electronic products    switch    Basic/quick switch
File Size1MB，11 Pages
ManufacturerCrouzet
Download Datasheet Parametric Compare View All

831390CAB.5.EX2 Overview

Basic/Snap Action Switch SLDSW 5A 0.5M RLR 79210433

831390CAB.5.EX2 Parametric

Parameter NameAttribute value
MakerCrouzet
Product CategoryBasic/snap-action switch
Shipping restrictionsMouser does not currently sell this product.
lighting color-
series83139
illuminationNon-Illuminated
Lamp type-
Installation styleChassis Mount
Factory packaging quantity1

Preview

Download Datasheet
22/10/2012
www.crouzet.com
83139 Standard 831390 Part number
IP 67 protection against hydrocarbons, detergents
Double break switching
Double insulated or Atex flameproof casing

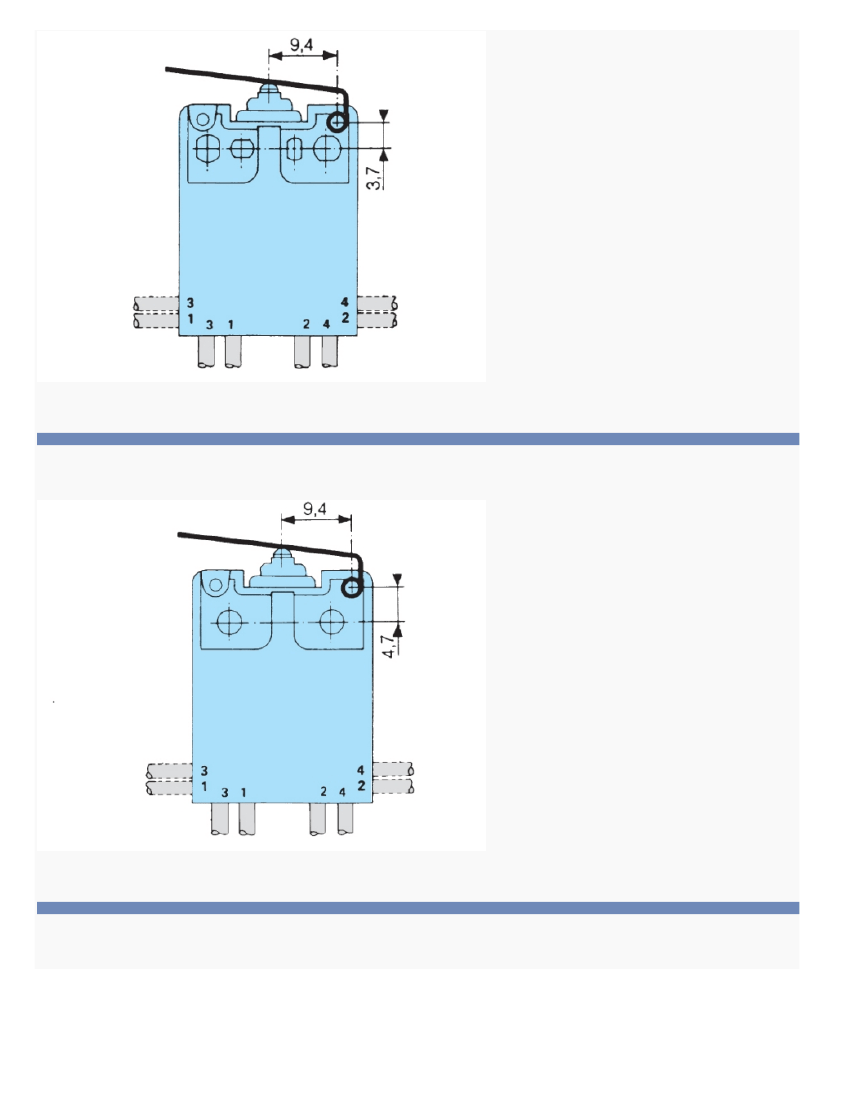

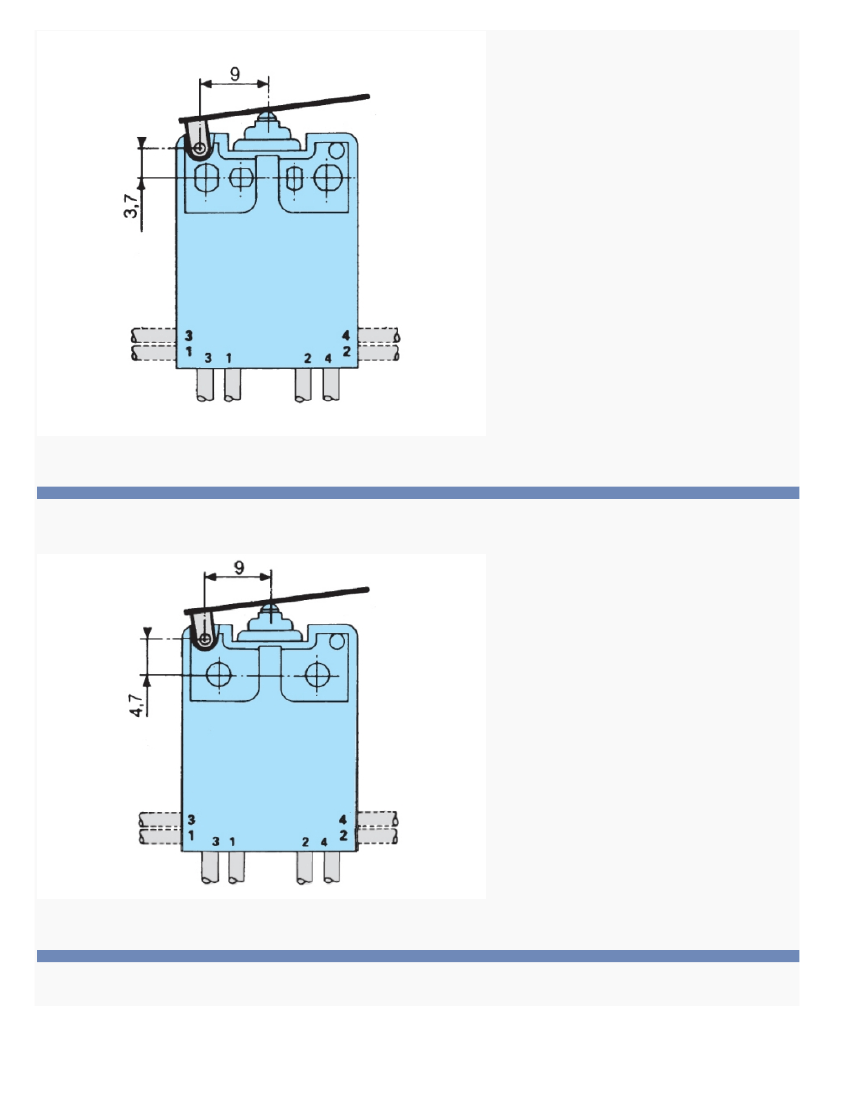

Choice of actuators
Part numbers
Type
83139003
MADE TO
ORDER
MADE TO
ORDER
MADE TO
ORDER
Standard 831390
Standard 831390
Function
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
I (changeover)
Connections
Standard lead output
Lead output on right/left
Cable output
Standard lead output
Lead output on right/left
Cable output
Standard lead output
Lead output on right/left
Cable output
Standard lead output
Lead output on right/left
Cable output
CONTACT US
Standard 831390
Low temperature 831395
Low temperature 831395
CONTACT US
Low temperature 831395
CONTACT US
Double insulated 831392
CONTACT US
Double insulated 831392
MADE TO
ORDER
MADE TO
ORDER
MADE TO
ORDER
Double insulated 831392
Flameproof 831391
Flameproof 831391
CONTACT US
Flameproof 831391
Specifications
Electrical characteristics
Rating nominal / 250 V (A)
Rating thermal / 250 V (A)
6
11
Mechanical characteristics
Maximum operating force (N)
Min. Release force (N)
Maximum total travel force (N)
Max. permitted overtravel force (N)
Maximum rest position (mm)
Operating position depending on position of fixing holes
(mm)
Maximum differential travel (mm)
Min. overtravel (mm)
Ambient operating temperature (°C)
Mechanical life (operations)
Contact gap (mm)
Weight (g)
3
0,6
4
10
A= 8,8
B= 9,8
A = 7.7
±0.4
B = 8.7
±0.4
0,35 ±0,1
0,25
0 →+85
10
7
0,3 x 2
37

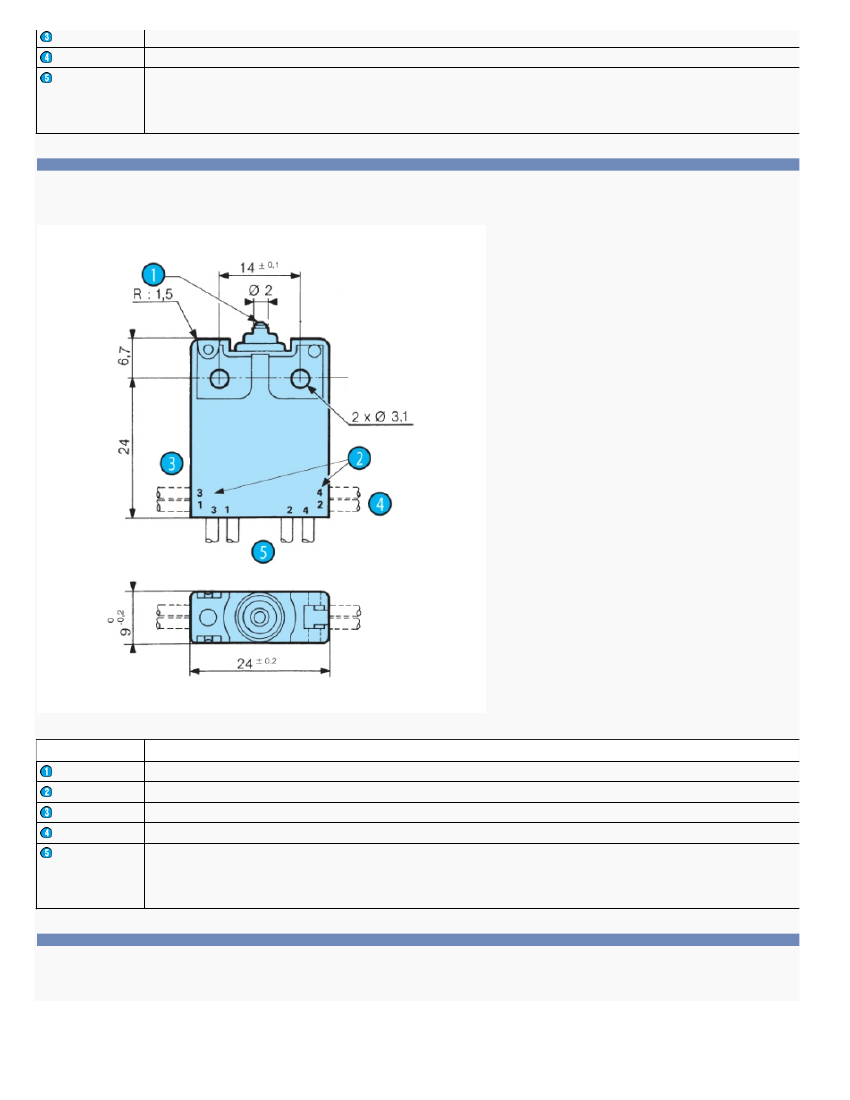

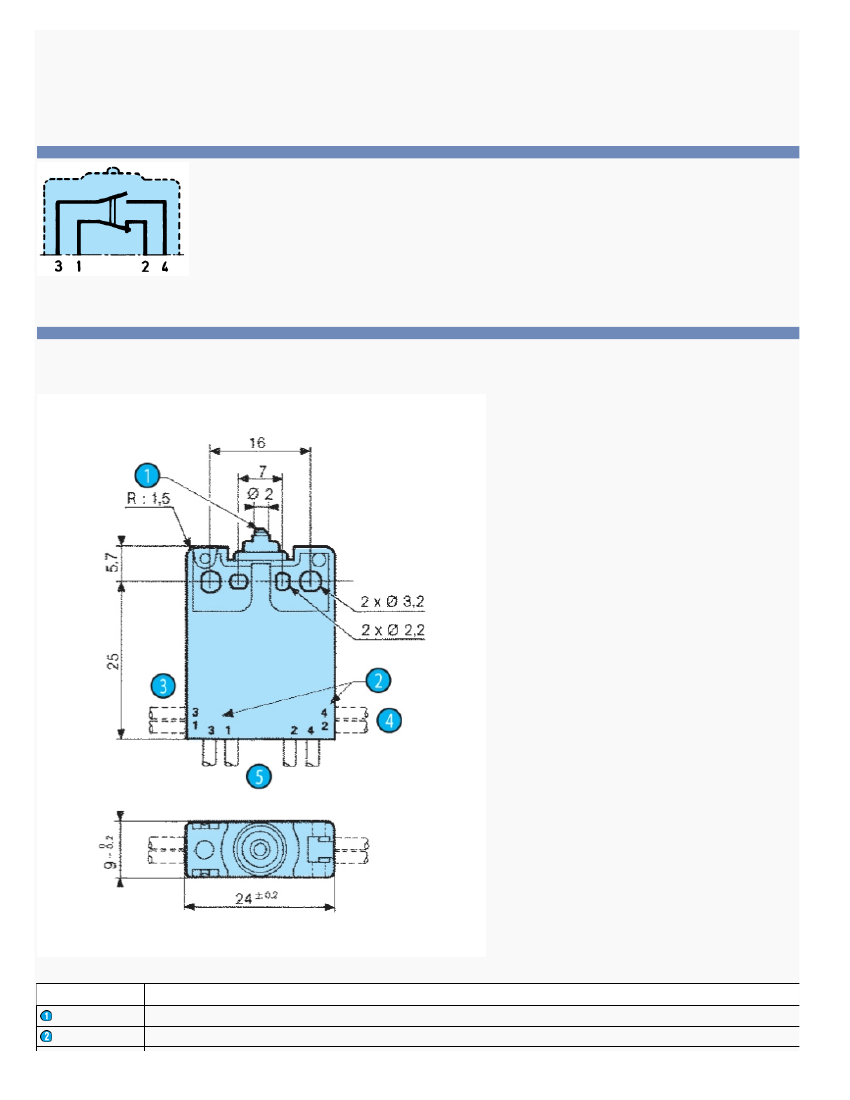

Fixations
Fixings - 4 holes (standard)
Fixing - 2 holes
A
B
Connections
Connection
4 flexible leads
0.75 mm
2
length 0.50 m
Ø ext. 2.3 mm
S
D
G
Standard wire output
Wire output on right
Wire output on left
Additional specifications
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
