831708C2.EL Overview

Basic / Snap Action Switch SNSW 0.1A SLDR ROLR 79218454

831708C2.EL Parametric

Parameter Name	Attribute value
Maker	Crouzet
Product Category	Basic/snap-action switch
Shipping restrictions	Mouser does not currently sell this product.
lighting color	-
illumination	Non-Illuminated
Lamp type	-
Installation style	Chassis Mount
Factory packaging quantity	1

Preview

Download Datasheet

View All

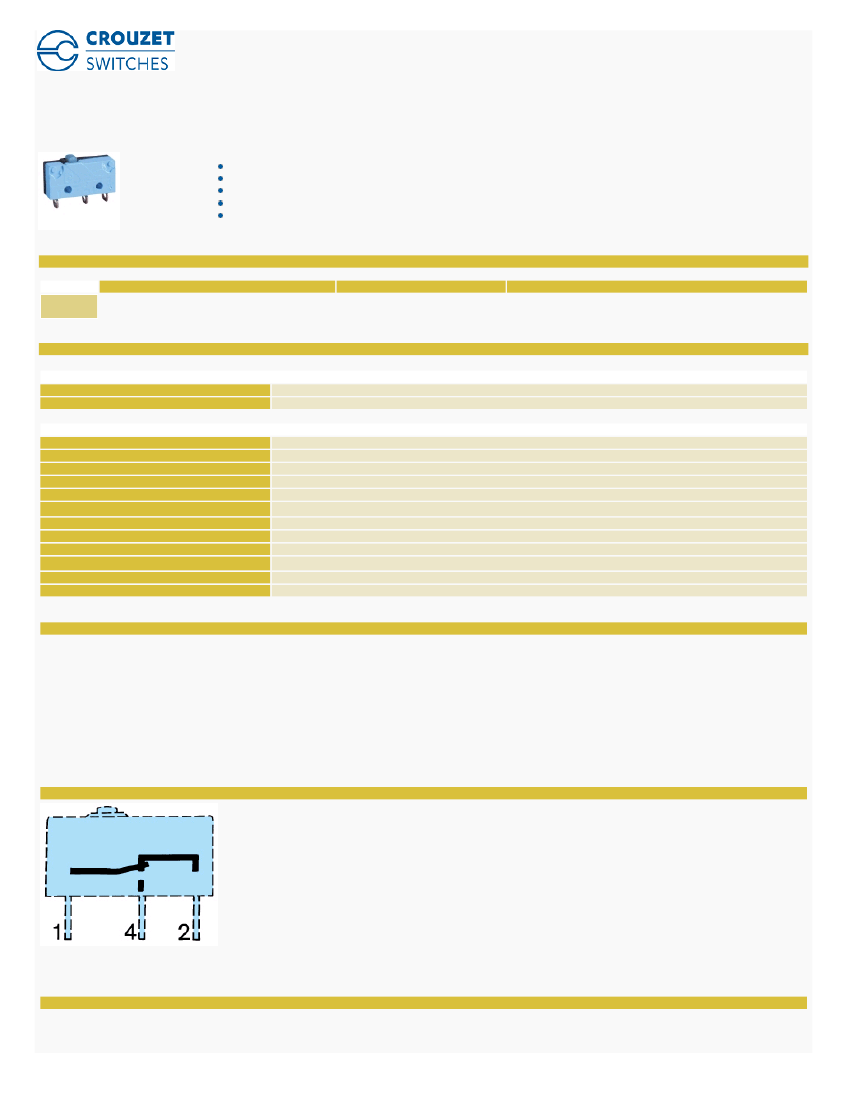

02/11/2015

www.crouzet.com

V4 83170 Dual-current 831708 Part number made to order

Nominal ratings 0.1 A to 10 A / 250 VAC

Minimum rating 1 mA / 4 VDC

Operating temperature up to +125 °C

Conforming to standards EN 61058 and UL 1054

Choice of actuators with 2 possible fixing positions

Part numbers

Type

MADE TO

ORDER

Dual-current 831708

Function

I (changeover)

Connections

X1S - X2 - X2S - X3 - X3S

Specifications

Electrical characteristics

Rating nominal / 250 VAC (A)

Rating thermal / 250 VAC (A)

0,1

Mechanical characteristics

Maximum operating force (N)

Min. Release force (N)

Maximum total travel force (N)

Max. permitted overtravel force (N)

Maximum rest position (mm)

Operating position (mm)

Max. differential travel mm

Min. overtravel (mm)

Ambient operating temperature (°C)

Mechanical life (operations)

Contact gap (mm)

Weight (g)

1,5

0,3

1,8

9,2

8,4

±0,3

0,15

0,5

-20 →+125

0,4

1,7

Additional specifications

Components

Material

- Case : polyester UL 94 VO

- Button : Glass-filled polyamide

- Contacts : AgNi, gold-plated AgNi (dual-current)

- Terminals : cupro-nickel (except W7A5 in brass)

Levers

- Flat : stainless steel

- Roller : stainless steel, polyamide roller

Approvals

NF - UL - cUL

Principles

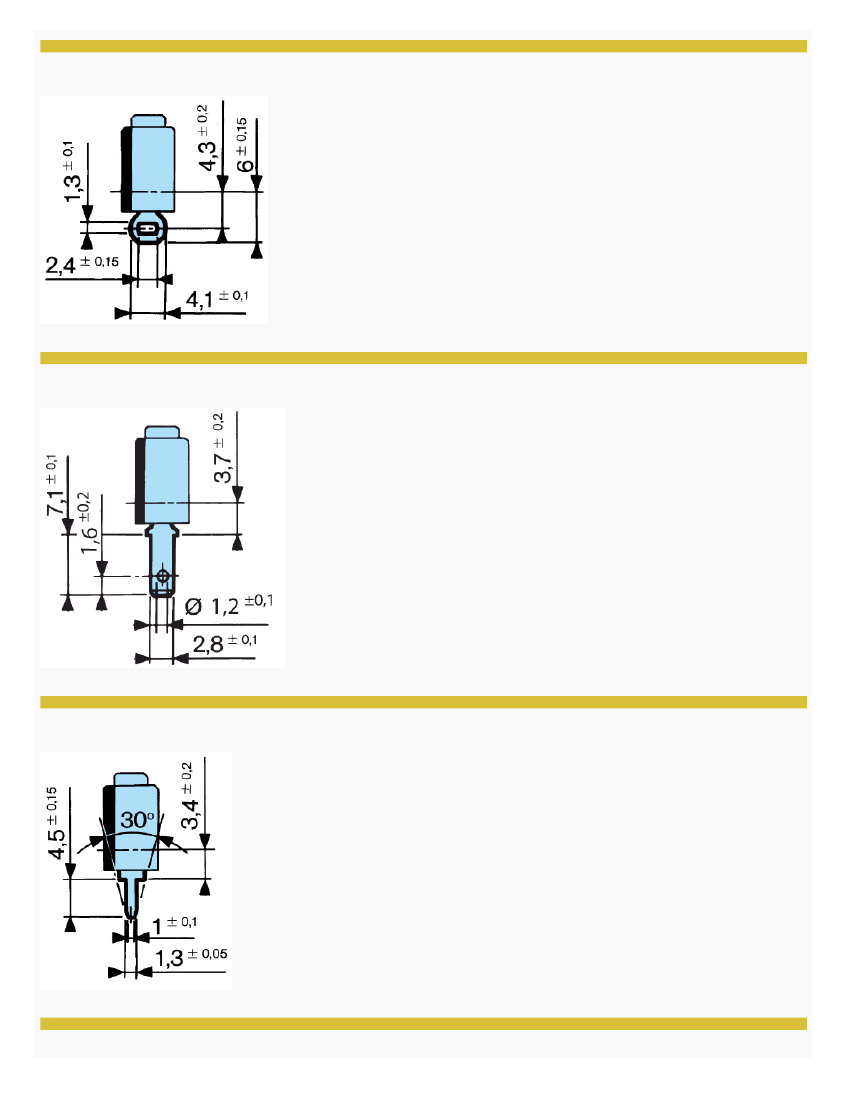

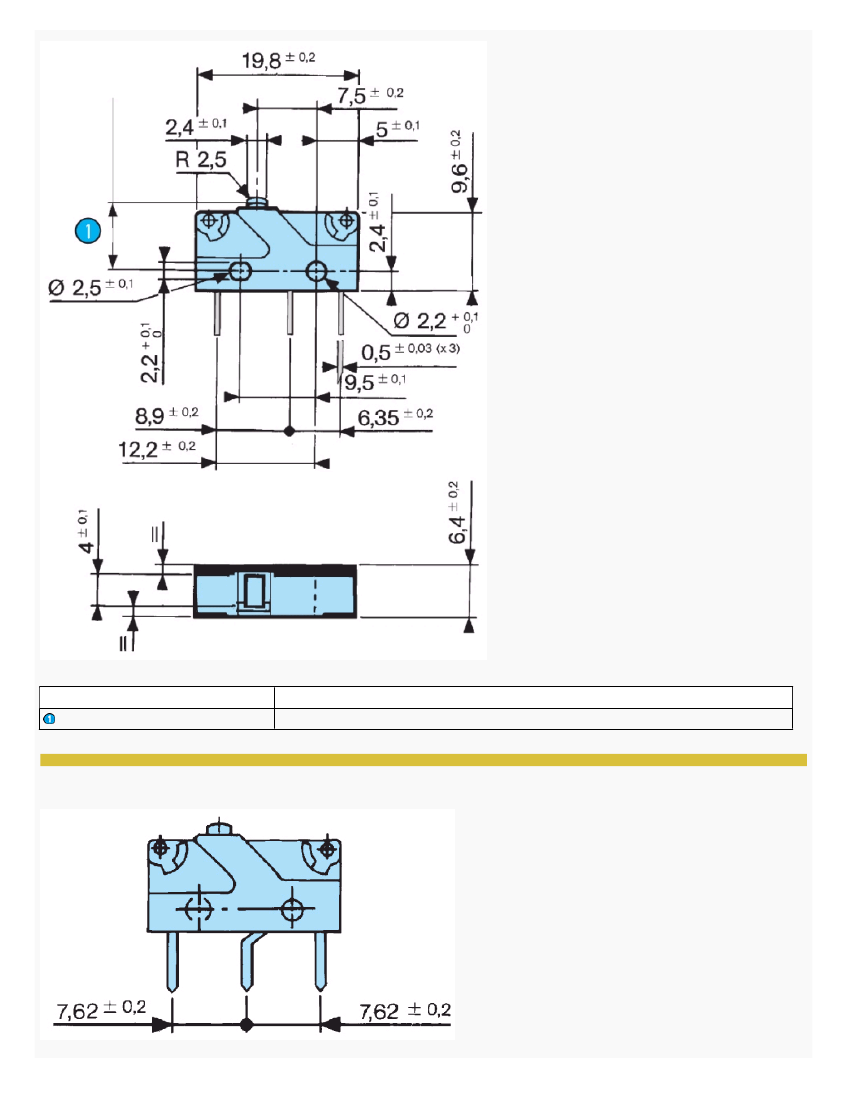

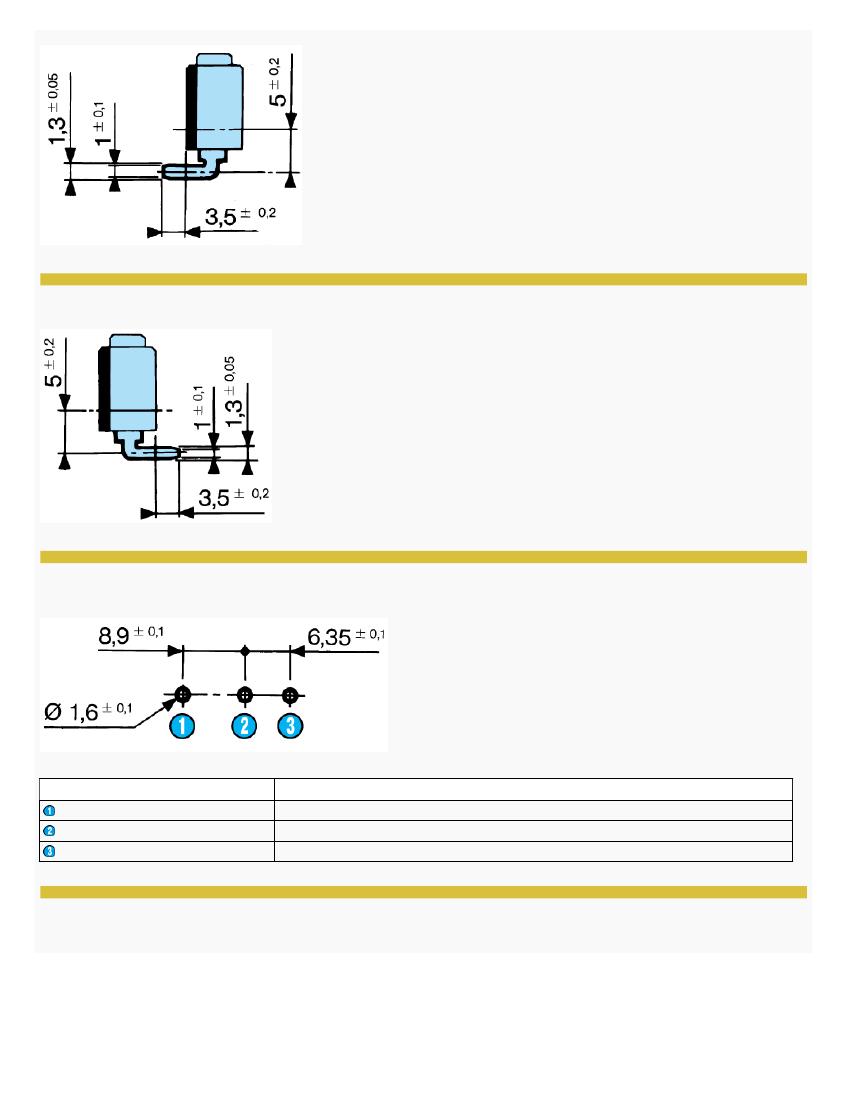

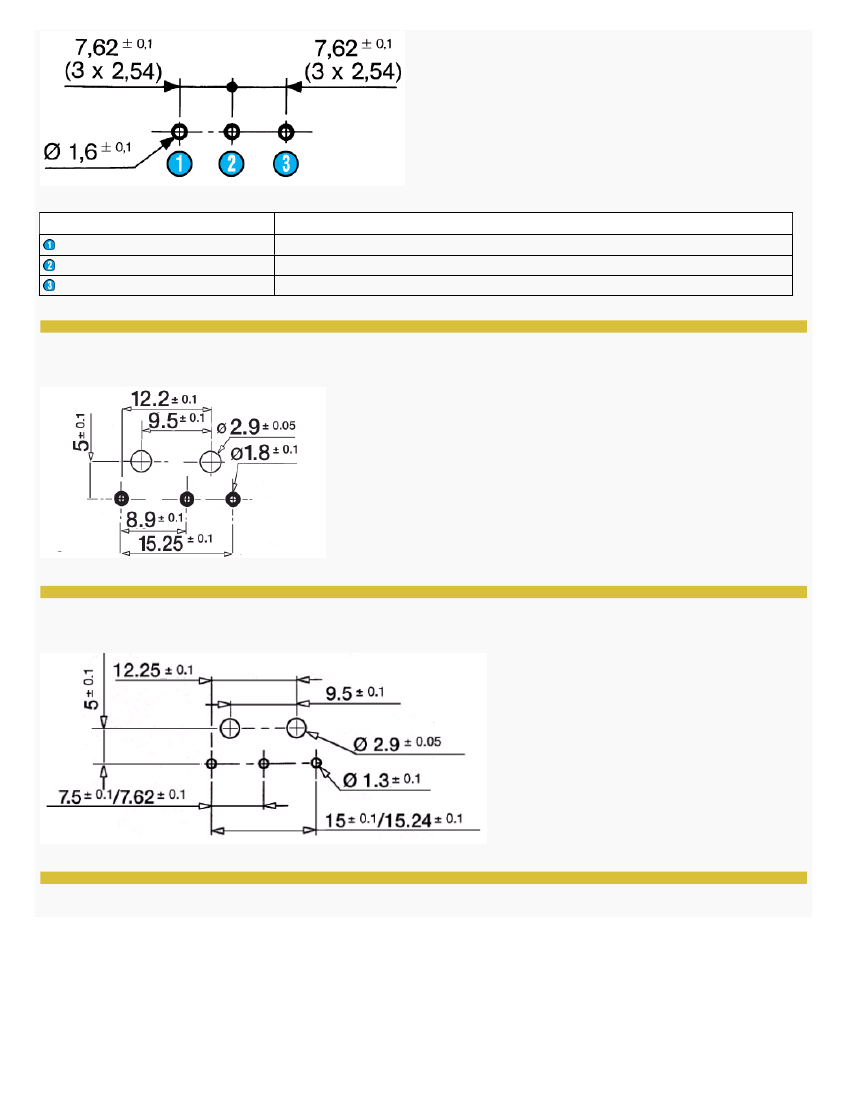

Dimensions (mm)

Product

83170

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected

831708C2.EL Related Products

	831708C2.EL	831708C20	831708C2AL	831708C40	831708C10	831708C2FL	831708C50	831708C1.EL
Description	Basic / Snap Action Switch SNSW 0.1A SLDR ROLR 79218454	Basic / Snap Action Switches SNSW 0.1A SLDR NONE	Basic / Snap Action Switches SNSW 0.1A SLDR PLAIN 79253327	Basic / Snap Action Switches SNSW 0.1A PCB BTM SYM NONE	Basic / Snap Action Switches SNSW 0.1A .110 NONE	Basic / Snap Action Switches SNSW 0.1A SLDR SIMRLR79253329	Basic / Snap Action Switches SNSW 0.1A PCB 90D ASYM NONE	Basic/Snap Action Switch SNSW 0.1A .110 RLR 79218454
Product Category	Basic/snap-action switch	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic / Snap Action Switches	Basic/snap-action switch
Product Attribute	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value	-
Manufacturer	-	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	Crouzet	-
Illuminated	-	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated	Non-Illuminated	-
Factory Pack Quantity	-	1	1	1	1	1	1	-
