ZWL-1011-24NW: DescriptionLED lighting Neutral White 4000K 12W 500mA 1140lm; CategoryLED optoelectronic/LED LED lighting LED bulbs and modules LED lighting equipment; File Size180KB，3 Pages; ManufacturerJKL Components; Environmental Compliance

Download Datasheet Parametric Compare View All

ZWL-1011-24NW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZWL-1011-24NW	-	-	View	Buy Now

ZWL-1011-24NW Overview

LED lighting Neutral White 4000K 12W 500mA 1140lm

ZWL-1011-24NW Parametric

Parameter Name	Attribute value
Maker	JKL Components
Product Category	LED lighting equipment
product	LED Rigid Strip
lighting color	White (Neutral White)
LED quantity	120 LEDs
Wavelength/Color Temperature	4000 K
Luminous flux	1140 lm
width	15.05 mm
length	1011 mm
Encapsulation	Bulk
high	14.1 mm
Power rating	12 W
If - forward current	500 mA
Vf - forward voltage	24 V

Preview

Download Datasheet

View All

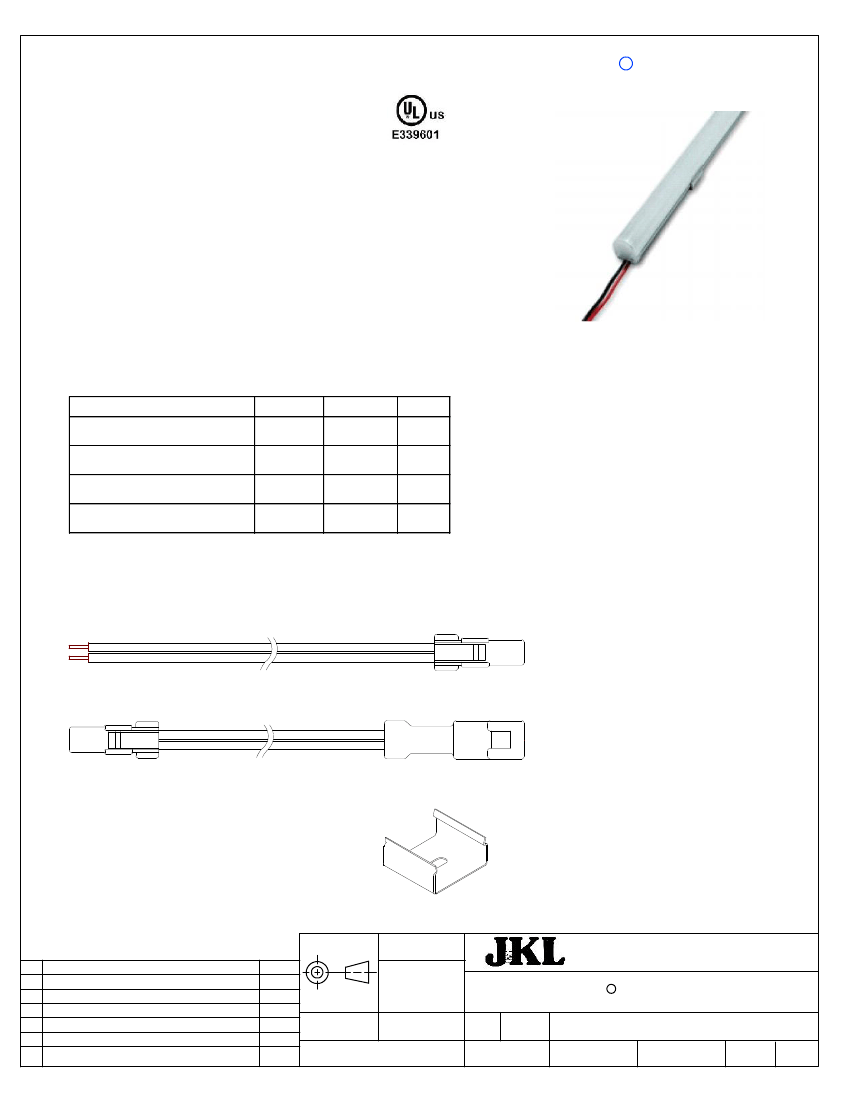

Features

Low Voltage 24V DC

RoHS Compliant

No UV Emission

Low Profile

IP66

Easy Bar to Bar Connection and Mounting

Diffused Lens Eliminates Hot Spots

Optional Customized Lengths

Ideal for Case Lighting

ALUMILINE LED FIXTURE

R

Maximum Ratings

Parameter

LED Junction Temperature

Operating Temperature

Storage Temperature

Input Voltage

Accessories

Symbol

T

J

T

opr

T

stg

Vin DC

Rating

125

-20 ~ +50

-40 ~ +85

20 - 30

Units

ºC

Volts

ZPS-2435:

ZPS-2460:

ZDM-01:

24V, 35 Watt Power Supply

24V, 60 Watt Power Supply

PWM LED Dimmer

Note: ZPS-2435 and ZPS-2460 require

use of wire nuts for connections.

Mating Components

ZWBL-1000-I:

Input Connector

ZWBL-CH-J:

Jumper Connector

ZWF-12-C:

Mounting Clip

METRIC

THIRD ANGLE

PROJECTION

DRAWN BY

DIMENSIONS ARE

MILLIMETER (INCH)

TOLERANCE UNLESS

OTHERWISE SPECIFIED

TITLE

COMPONENTS CORPORATION

ALUMILINE

R

1 PL +/-

2 PL +/-

ANGLE +/-

REF.

24V DC LED FIXTURE

ZWL-MULTI

REVISION

DATE

REV.

NO.

SHEET

OF

APPV'D BY

DATE

SIZE

RELEASED

REV.

NO.

DESCRIPTION/ECO

NUMBER

5/30/17

APPV'D

DATE

L. WENGSTROM S.C.

5/30/17

MANUAL REVISIONS NOT PERMITTED

- CAD DRAWING -

SCALE

A

55335

NONE

FSCM NO.

DRAWING

NO.

RELEASED

DATE

5/30/17

1

2

ZWL-1011-24NW Related Products

	ZWL-1011-24NW	ZWL-511-24NW	ZWL-511-24CW	ZWL-511-24WW	ZWL-1011-24CW	ZWL-1011-24WW
Description	LED lighting Neutral White 4000K 12W 500mA 1140lm	LED lighting equipment Neutral White 4000K 6W 250mA 570lm	LED lighting equipment Cool White 5700K 6W 250mA 600lm	LED lighting equipment Warm White 3000K 6W 250mA 540lm	LED lighting equipment Cool White 5700K 12W 500mA 1200lm	LED lighting equipment Warm White 3000K 12W 500mA 1080lm
Maker	JKL Components	JKL Components	JKL Components	JKL Components	JKL Components	JKL Components
Product Category	LED lighting equipment	LED lighting equipment	LED lighting equipment	LED lighting equipment	LED lighting equipment	LED lighting equipment
product	LED Rigid Strip	LED Rigid Strip	LED Rigid Strip	LED Rigid Strip	LED Rigid Strip	LED Rigid Strip
lighting color	White (Neutral White)	White (Neutral White)	White (Cool White)	White (Warm White)	White (Cool White)	White (Warm White)
LED quantity	120 LEDs	60 LEDs	60 LEDs	60 LEDs	120 LEDs	120 LEDs
Wavelength/Color Temperature	4000 K	4000 K	5700 K	3000 K	5700 K	3000 K
Luminous flux	1140 lm	570 lm	600 lm	540 lm	1200 lm	1080 lm
width	15.05 mm	15.05 mm	15.05 mm	15.05 mm	15.05 mm	15.05 mm
length	1011 mm	511 mm	511 mm	511 mm	1011 mm	1011 mm
Encapsulation	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
high	14.1 mm	14.1 mm	14.1 mm	14.1 mm	14.1 mm	14.1 mm
Power rating	12 W	6 W	6 W	6 W	12 W	12 W
If - forward current	500 mA	500 mA	500 mA	500 mA	500 mA	500 mA
Vf - forward voltage	24 V	24 V	24 V	24 V	24 V	24 V
