TF31-16S-0.5SH(895): DescriptionFFC & FPC Connectors; CategoryThe connector FFC/FPC FFC/FPC connector; File Size518KB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

TF31-16S-0.5SH(895) Overview

FFC & FPC Connectors

TF31-16S-0.5SH(895) Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	FFC & FPC Connectors
series	TF31
Encapsulation	Reel
Factory packaging quantity	500

Preview

Download Datasheet

View All

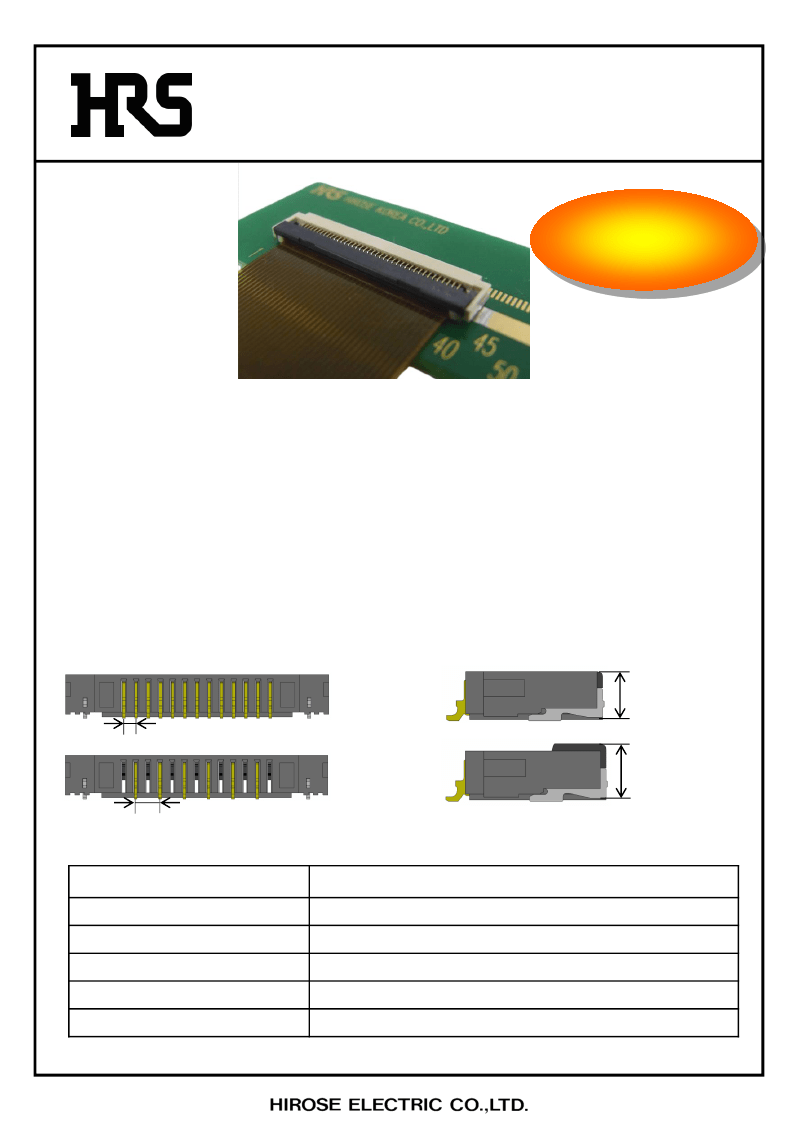

TF31 Series

HK-E-17026F

0.5mm/1.0mm Pitch, 1.75mm/2.0mm Height

Bottom contact, Front Flip FPC/FFC Connector

Best Selling

0.5mm/1.mm Pitch

Connector



Features

1. Multiple variations available

- 0.5mm/1.0mm Pitch, 1.75mm/2.0mm Height, 5.7mm Mounting depth

2. User-friendly design

- Actuator opens wide up to 110˚

3. High reliability

- High FPC retention force with FPC side-catcher design

- Solder wicking and flux penetration prevention

4. Environment compliance

- RoHS compliant, Halogen-free product

*1

This product satisfies halogen free requirements defined as 900 ppm maximum chlorine,

900 ppm maximum bromine, and 1500 ppm maximum total of chlorine and bromine.



Multiple Pitch and Height Variations Available

[Pitch Variations]

[Height Variations]

(4~20 Pos.)

1.75mm

P=0.5mm

(21~60 Pos.)

2.0mm

P=1.0mm



Specifications

Contact Resistance

*2

Withstanding Voltage

Insulation Resistance

Rated Current

Rated Voltage

FPC/FFC Thickness

50mΩ Max.

150V DC for 1 minute

500MΩ Min. (100V DC)

0.5A

50V AC/DC

0.3±0.03mm

*2

FPC/FFC resistance is included.

Issued: Nov. 09, 2017

※Specifications

herein are subject to change without notice. Contact Hirose for latest specifications, drawings or availabilities.
