HIF3F-20PA-2.54DS(71) datasheet, PDF

Datasheet> All Categories > The connector> The connector> HIF3F-20PA-2.54DS(71)

HIF3F-20PA-2.54DS(71): DescriptionHeader and wire housing 20P PIN HEADER T/HR/A CHANGED FINISH; CategoryThe connector The connector; File Size151KB，4 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HIF3F-20PA-2.54DS(71) Overview

Header and wire housing 20P PIN HEADER T/HR/A CHANGED FINISH

HIF3F-20PA-2.54DS(71) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	Hirose
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	437833
Samacsys Pin Count	20
Samacsys Part Category	Connector
Samacsys Package Category	Header, Shrouded
Samacsys Footprint Name	HIF3F-20PA-2.54DS(71)
Samacsys Released Date	2019-08-22 16:15:32
Is Samacsys	N
body width	0.354 inch
subject depth	0.547 inch
body length	1.307 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	HIF3F
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

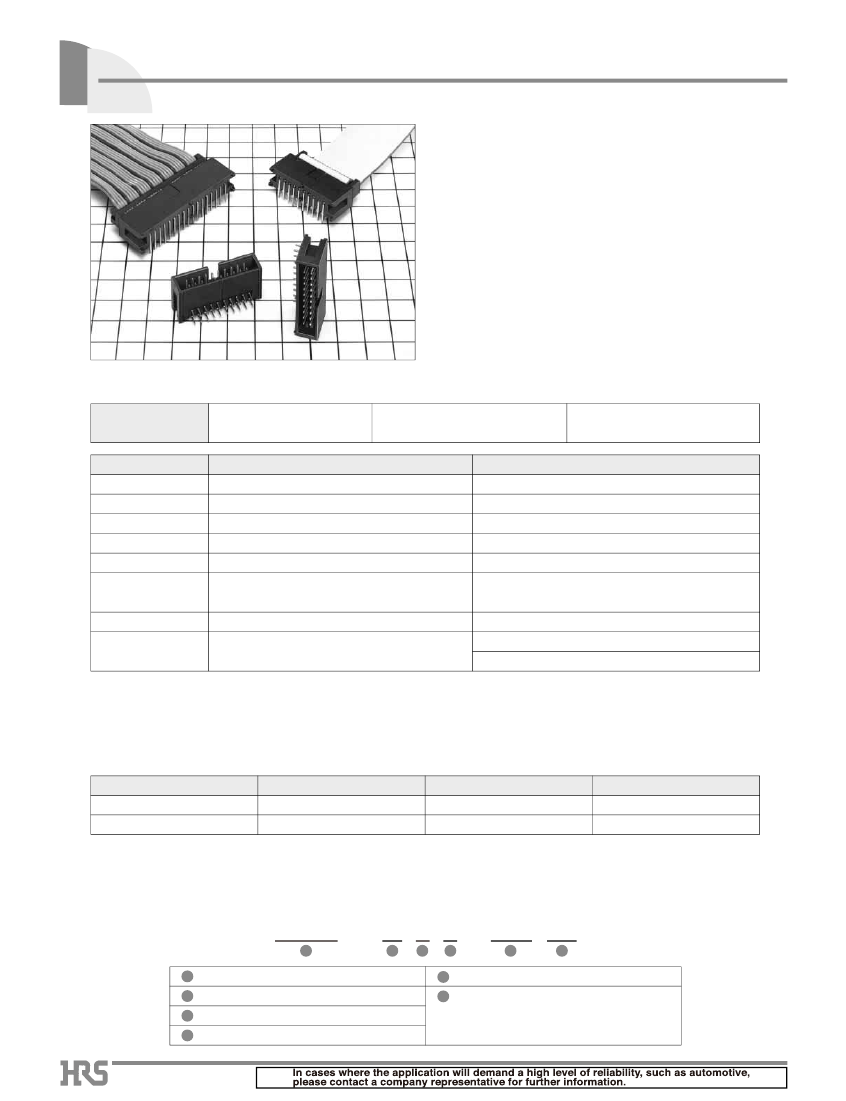

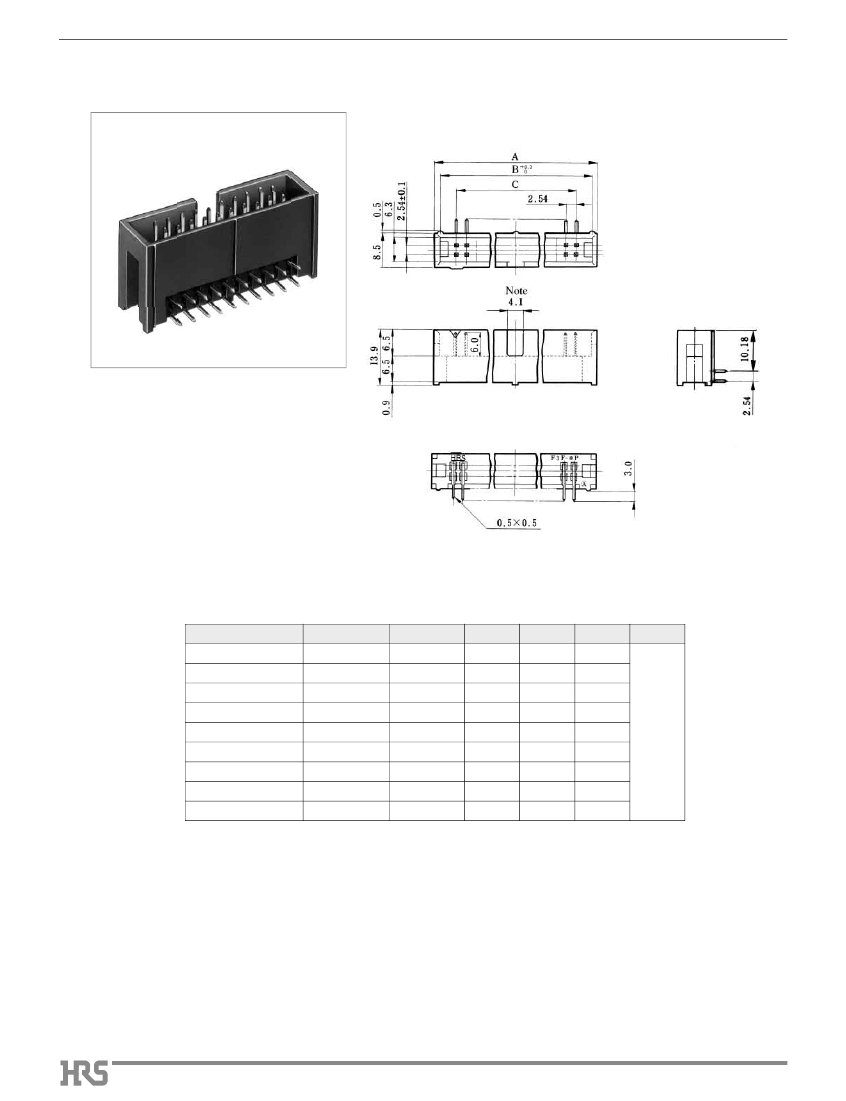

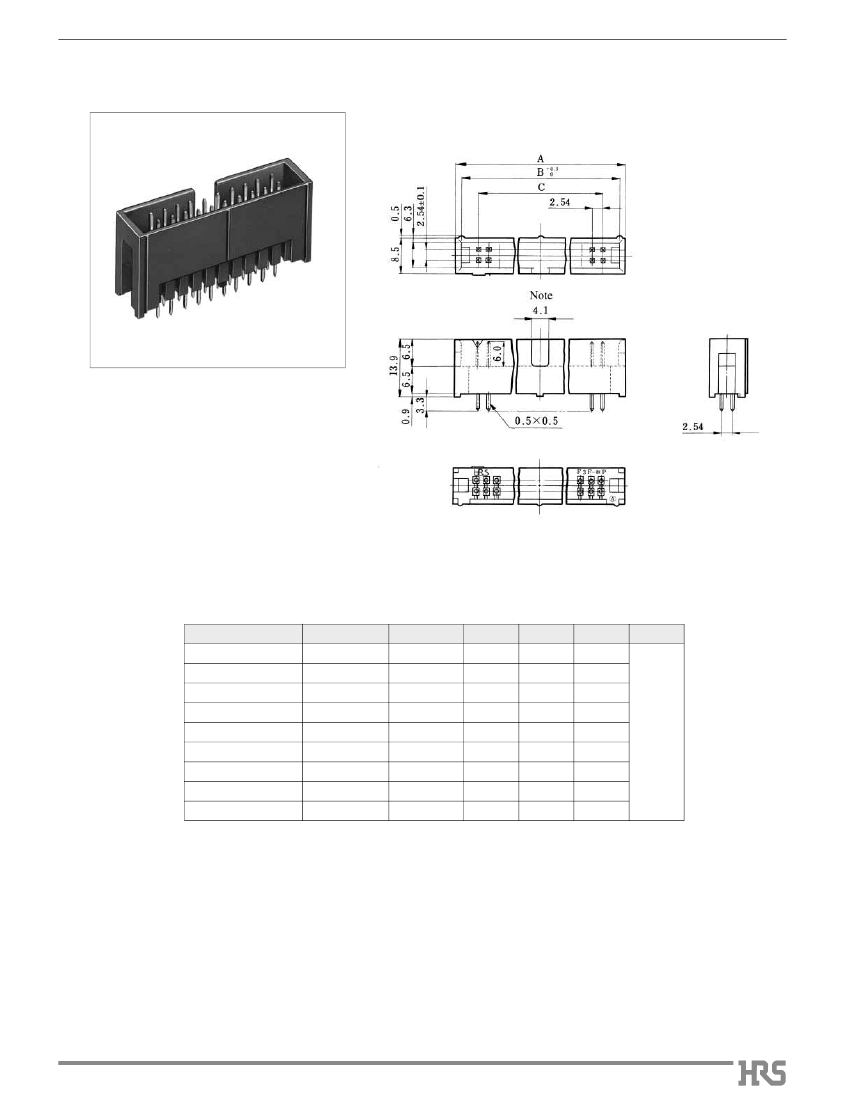

Box type Pin Header to Prevent Mis-insertion

HIF3F Series

■Features

1. Prevent to Reverse Insertion

The pin header to prevent reverse insertion is equipped

with contact protective walls to the HIF3E series.

2. Compatibility

This pin header is compatible with HIF3B series.

■Applications

Computers, terminal equipment, PPC, various kinds of

electronic equipment, office automation machines, etc.

■Product

Specifications

Rating

Current rating: 1A

Voltage rating: 200V AC

Specification

Operating Temperature Range:–55 to

+85ç

(Note 1)

Operating Moisture Range:40 to 80%

Storage Temperature Range:–10 to

+60ç(Note

Storage Humidity Range:40 to 70% (Note 2)

Condition

Item

1. Insulation Resistance 1000M

ohms

min.

2. Withstanding voltage

No flashover or insulation breakdown.

3. Contact Resistance 15m

ohms

max.

4. Vibration

No electrical discontinuity of 1μs or more

Humidity (Steady state)

Insulation resistance: 1000M

ohms

min.

6. Temperature Cycle

No damage, cracks, or parts looseness.

7. Durability (Mating/un-mating) Contact resistance15m

ohms

max.

8. Resistance to

Soldering heat

500V DC

650V AC/1 minute

0.1A

Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

(–55ç: 30 minutes

➝

15 to 35ç: 5 minutes max.

125ç: 30 minutes

➝

15 to 35ç: 5 minutes max.) 5 cycles

500 cycles

No deformation of components affecting performance.

Solder bath: 260ç for 10 seconds

Manual soldering: 360ç for 5 seconds

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range

and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.

Note 3: Information contained in this catalog represents general requirements for this Series.Contact us for the drawings and

specifications for a specific part number shown.

■Material

Part

Insulator

Contact

Material

PBT

Brass

Finish

Black

Selective gold plating over nickel underplated

Remarks

UL94V-0

---------------

■Ordering

Information

HIF3F

Series Name: HIF3F

P A - 2.54 DS

Contact Pitch: 2.54mm

Terminal type DS: Right angle type

DSA: Straight type

Number of contacts: 10, 16, 20, 26, 30, 34, 40, 50, 60

P: Pin header

A: Selective gold plating

B44

HIF3F-20PA-2.54DS(71) Related Products

	HIF3F-20PA-2.54DS(71)	HIF3F-26PA-2.54DSA(71)	PNM0805K1290DST3	HIF3F-50PA-2.54DS(71)	HIF3F-30PA-2.54DS(71)
Description	Header and wire housing 20P PIN HEADER T/HR/A CHANGED FINISH	Header and wire housing 26P PIN HEADER T/H STRAIGHT CNGE FINISH	Fixed Resistor, Thin Film, 0.2W, 129ohm, 100V, 0.5% +/-Tol, -100,100ppm/Cel, 0805	Header and wire housing 50P PIN HEADER T/HR/A CHANGED FINISH	Header and wire housing 30P PIN HEADER T/HR/A CHANGED FINISH
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	CHIP	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum operating temperature	85 °C	85 °C	155 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maker	Hirose	Hirose	-	Hirose	-
body width	0.354 inch	0.354 inch	-	0.354 inch	0.354 inch
subject depth	0.547 inch	0.547 inch	-	0.547 inch	0.547 inch
body length	1.307 inch	1.606 inch	-	2.807 inch	1.807 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	-	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	-	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	-	NO	NO
Dielectric withstand voltage	650VAC V	650VAC V	-	650VAC V	650VAC V
Durability	500 Cycles	500 Cycles	-	500 Cycles	500 Cycles
Filter function	NO	NO	-	NO	NO
IEC compliance	NO	NO	-	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	-	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	-	NO	NO
Manufacturer's serial number	HIF3F	-	-	HIF3F	HIF3F
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch
Mixed contacts	NO	NO	-	NO	NO
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING
Installation method	RIGHT ANGLE	STRAIGHT	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE
PCB row number	2	2	-	2	2
Number of rows loaded	2	2	-	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	-	1 A	1 A
Guideline	UL	UL	-	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.129 inch	-	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	20	26	-	50	30
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0
Base Number Matches	1	1	-	1	1
