communications processor, a green high efficiency LED, and
three integrated LED drivers with ninety selectable drive levels.
The Si1144-AAGX offers excellent performance under a wide dy-
namic range and a variety of light sources from 525 nm to 940
nm. The Si1144-AAGX devices are provided in a 10-lead 4.9 x
2.85 x 1.2 mm LGA module package and are capable of opera-
tion from 1.71 to 3.6 V over the –40 to +85 °C temperature range.
Applications:
• Fitness Bands
• Smart Watches
• Other Wearables
• Healthcare
KEY FEATURES
• Fully integrated heart rate sensor with ARM code library for
extracting HR from the optical sensor data
• Green LED with lens
• High-sensitivity photodiode
• Low-noise analog-to-digital converter and filtering
• LED drivers
• Optical blocking
• Host communications and interrupts
• Optional Movement compensation uses external accelerometer data
• Accurate sensing of weak blood flow signals on the wrist
• Three independent regulated LED drivers
• Scalable from cost-sensitive single LED systems to high
performance three LED systems
• Programmable from 6 mA to 360 mA each
• Integrated green LED ideal for wrist based heart rate applications
• Add up to 2 external LEDs
• Broad spectral sensitivity supports green through 940 nm LEDs
• No additional optical blocking required
• Low power consumption
• 1.71 to 3.6 V supply voltage
Sensor Die
VDD
Regulator
Temp
A
M
U
X
ADC
Filter
LED
Drivers
LED1
LEDA
LED1
• 25.6 μs LED “on” time keeps total power consumption duty cycle
low without compromising performance or noise immunity
• < 500 nA standby current
• Internal and external wake support
• Built-in voltage supply monitor and power-on reset controller
• I
2
C serial communications
• Up to 3.4 Mbps data rate
LED3
LED2
LED3
LED2
Visible
Infrared
Digital Sequencer & Control Logic
Registers
Oscillator
GND
INT
SCL
SDA
I
2
C
• Slave mode hardware address decoding (0x5A)
• 10-lead 4.9 X 2.85 x 1.2 mm LGA Module package
• Temperature Range
• –40 to +85 °C
Si1144-AAGX Sensor Module Block Diagram
silabs.com
| Smart. Connected. Energy-friendly.
Rev. 0.9
Si1144-AAGX Data Short
Si1144-AAGX Information
1. Si1144-AAGX Information

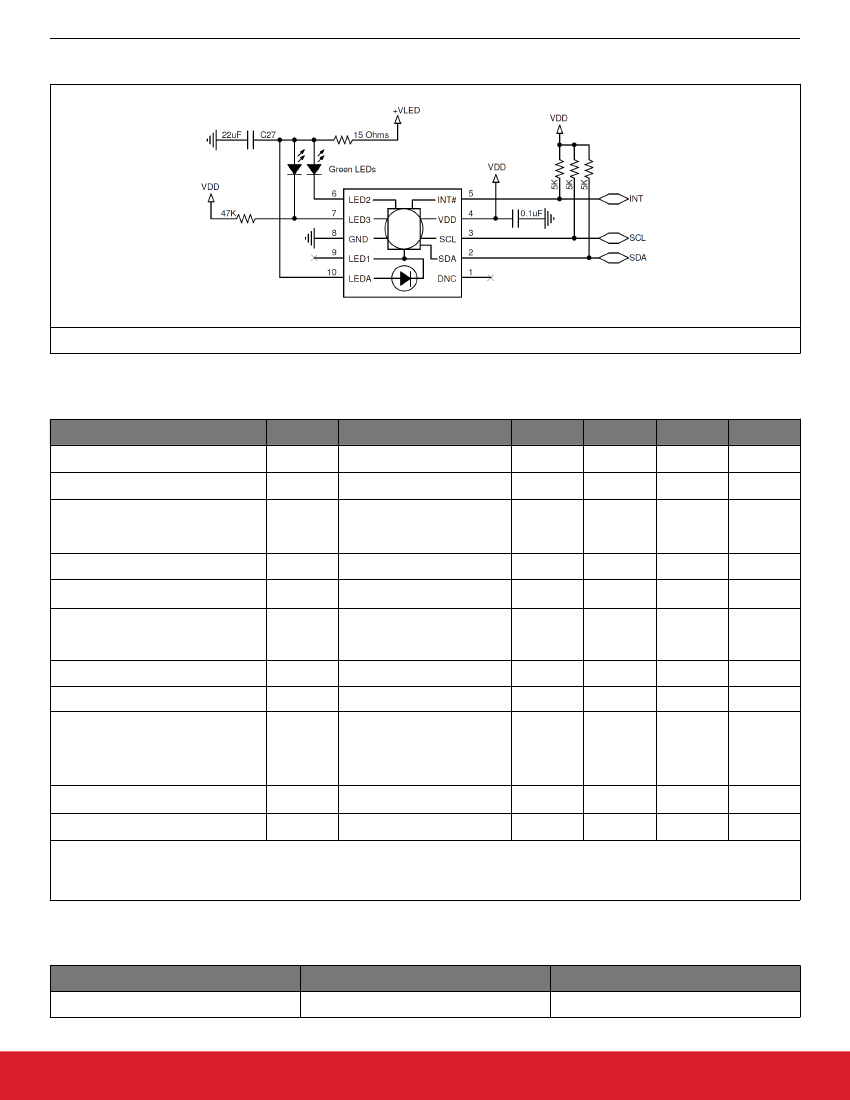

Si1144-AAGX 4.9 x 2.85 x 1.3 mm LGA Module Application Schematic
Table 1.1. Recommended Operating Conditions
Parameter
V
DD
Supply Voltage
V
DD
OFF Supply Voltage
V
DD
Supply Ripple Voltage
1
Symbol
V
DD
V
DD_OFF
OFF mode
V
DD
= 3.3 V
1 kHz–10 MHz
Operating Temperature
SCL, SDA, Input High Logic Voltage
SCL, SDA Input Low Logic
Voltage
LED Emission Wavelength
LED Supply Voltage
LED Supply Ripple Voltage
1
l
VLED
0–30 kHz
30 kHz–100 MHz
—
—
Start-Up Time
LED3 Voltage
V
DD
above 1.71 V
Start-up
25
V
DD
x 0.7
—
—
—
—
250
100
—
—
mVpp
mVpp
ms
V
—
4.1
525
—
—
5.0
nm
V
T
I
2
C
VIH
I
2
C
VIL
–40
V
DD
x 0.7
0
25
—
—
85
V
DD
V
DD
x 0.3
°C
V
V
Test Condition
Min
1.71
–0.3
—
—
Typ
—
Max
3.6
1.0
50
Unit
V
V
mVpp
Note:
1. Supply voltage ripple sensitivity depends on the voltage at the LEDx pins when turned on.
Table 1.2. Ordering Guide
Part Number
Si1144-AAGX-GMR
Package
4.9 x 2.85 x 1.2 mm LGA Module
LED Drivers
3 LED drivers, 1 green LED integrated
silabs.com
| Smart. Connected. Energy-friendly.
Rev. 0.9 | 1
