3410.41.0038 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Surge suppressor> 3410.41.0038

3410.41.0038: DescriptionSurge Suppressors GDT 7/16 plug(m) to 7/16 jack(f), 690-2700MHz; CategoryCircuit protection Surge suppressor; File Size327KB，3 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

3410.41.0038 Overview

Surge Suppressors GDT 7/16 plug(m) to 7/16 jack(f), 690-2700MHz

3410.41.0038 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	surge suppressor
Factory packaging quantity	1
unit weight	584 g

Preview

Download Datasheet

View All

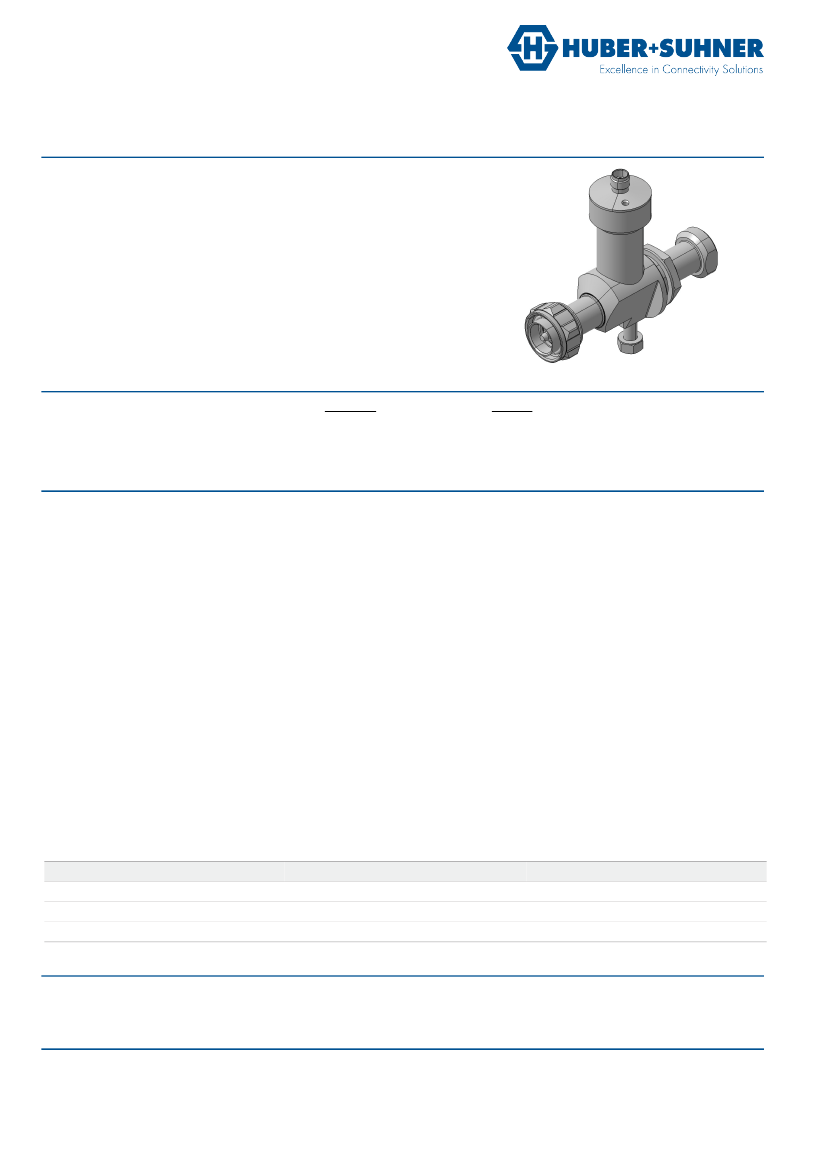

Data Sheet

EMP Protector

3410.41.0038

Description

High-power/low-IM GDT hybrid technology with bias-T

Benefits

Broad-band design

Replaceable GDT 9071.99.0548, (90 V) included

AISG compliant for 2.176 MHz carrier

Mounting screw set included

Compliant to IEC 61643-21

Product Configuration

Main path connectors

DC injection port connector

Mounting and grounding

Side of bulkhead

Port 1: unprotected, 7/16 plug (male) - Port 2: protected, 7/16 jack (female)

Port 3: TNC jack (female)

MH110 (bulkhead mounting), M8 (screw), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

DC Injection port decoupling

DC supply voltage

DC injection current

Surge current handling capability

Residual pulse energy

50 Ω

2.176 MHz

20 dB typ.

0.2 dB typ.

690 - 2700 MHz

≥ 26 dB

≤ 0.2 dB

≤ 500 W

-155 dBc max.

≥30 dB

≤ 48 V

≤ 3.5 A

30 single / 20 multiple kA (test pulse 8/20 µs)

20 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

300 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) DC injection port

Mechanical Data

Number of matings

Weight

500

570 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EC (RoHS)

-40 °C to +85 °C

IP67 (according to IEC 60529, data refer to the coupled state)

compliant

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Brass

Bronze

Surface Plating

SUCOPLATE (R) Plating

Silver Plating
