3409.41.0085 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Surge suppressor> 3409.41.0085

3409.41.0085: DescriptionSurge Suppressors GDT 7/16 jack(f) to 7/16 jack(f), 820-2500MHz; CategoryCircuit protection Surge suppressor; File Size194KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

3409.41.0085 Overview

Surge Suppressors GDT 7/16 jack(f) to 7/16 jack(f), 820-2500MHz

3409.41.0085 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	surge suppressor
Factory packaging quantity	1
unit weight	239 g

Preview

Download Datasheet

View All

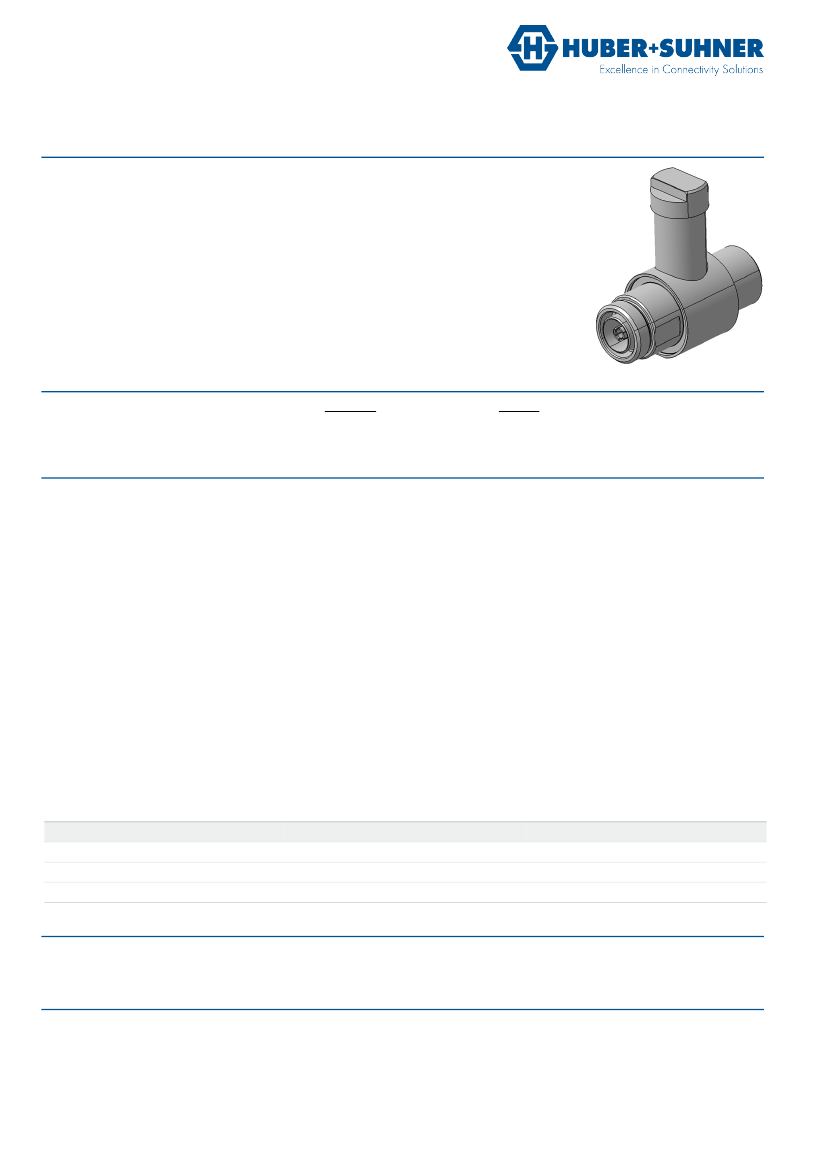

Data Sheet

EMP Protector

3409.41.0085

Description

High-power/low-IM GDT hybrid technology

Benefits

Multi-band operation

DC continuity for remote powering

The protector can also be installed reversely

AISG compliant for 2.176 MHz carrier

Replaceable GDT 9071.99.0548, (90 V) included

Compliant to IEC 61643-21

Product Configuration

Main path connectors

Mounting and grounding

Side of bulkhead

Port 1: unprotected, 7/16 jack (female) - Port 2: protected, 7/16 jack (female)

MH74 (bulkhead mounting), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

DC supply voltage

DC current

Surge current handling capability

Residual pulse energy

50 Ω

2.176 MHz

20 dB typ.

0.1 dB typ.

820 - 2500 MHz

≥ 20.8 dB

≤ 0.1 dB

≤ 1500 W

-150 dBc typ.

820 - 970 MHz

≥ 23.2 dB

≤ 0.1 dB

≤ 3000 W

-150 dBc typ.

1700 - 2500 MHz

≥ 23.2 dB

≤ 0.1 dB

≤ 1500 W

-150 dBc typ.

≤ 48 V

≤ 10 A

30 single / 20 multiple kA (test pulse 8/20 µs)

350 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

Mechanical Data

Number of matings

Weight

100

260 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EU (RoHS)

-40 °C to +85 °C

IP65 (according to IEC 60529, data refer to the coupled state)

compliant acc. Annex III

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Aluminium

Bronze

Surface Plating

Chromatized

Silver Plating
