3409.41.0054-EX

Description
Surge Suppressors GDT 7/16 plug(m) to 7/16 jack(f), 380-512MHz
CategoryCircuit protection    Surge suppressor
File Size180KB,2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

3409.41.0054-EX Overview

Surge Suppressors GDT 7/16 plug(m) to 7/16 jack(f), 380-512MHz

3409.41.0054-EX Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Product Categorysurge suppressor
Factory packaging quantity1
unit weight470 g
Data Sheet

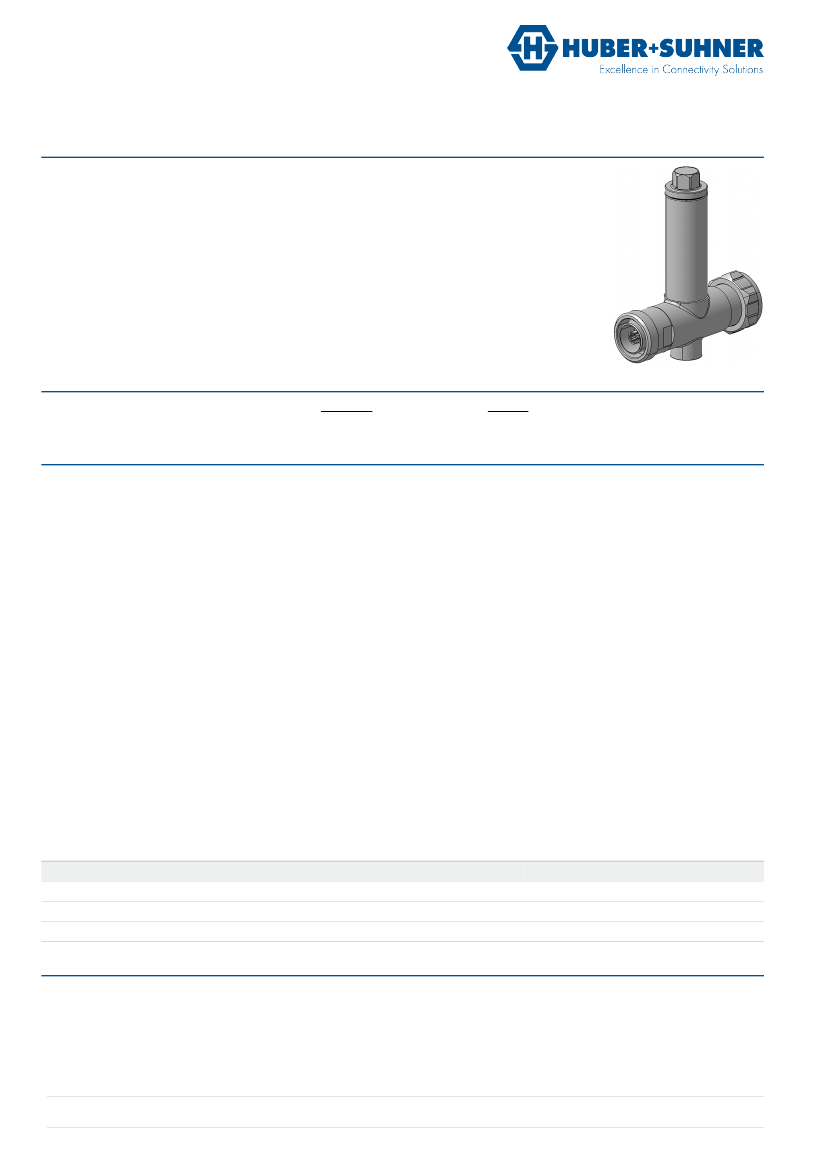

EMP Protector
3409.41.0054-EX
Description
High-power/low-IM GDT hybrid technology
Benefits
Self-extinguishing SEMPER(TM) functionality
DC continuity for remote powering
The protector can also be installed reversely
Replaceable GDT unit 9071.99.0747, (230 V) included
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Port 1: unprotected, 7/16 plug (male) - Port 2: protected, 7/16 jack (female)
M8 (screw), brk (bracket)
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
DC supply voltage
DC current
Surge current handling capability
Residual pulse energy
Turn-off time
Recovery time
50 Ω
380 - 512 MHz
≥ 20 dB
≤ 0.1 dB
≤ 500 W
-150 dBc typ.
≤ 48 V
≤ 2.5 A
30 single / 20 multiple kA (test pulse 8/20 µs)
350 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
20 s typically at 2.0 A and 25 °C ambient temperature
< 40 s typically below 1 A and 25 °C ambient temperature
7 s at 25 °C ambient temperature
Mechanical Data
Number of matings
Weight
500
465 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EU (RoHS)
-40 °C to +85 °C (Lightning protection functionality)
-20 °C to +85 °C (SEMPER
TM
functionality)
IP65 (according to IEC 60529, data refer to the coupled state)
Compliant exempt. 7(b)
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Brass
Brass
Copper Beryllium Alloy
Surface Plating
SUCOPLATE (R) Plating
Silver Plating
Silver Plating
Related Documents
Outline drawing
Mounting instruction
DOU-00004594.1
DOC-0000176104
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000177420 V / PDO I / date of publication: 07.01.2015 17:13:27 / uncontrolled copy
