3400.41.0203 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Surge suppressor> 3400.41.0203

3400.41.0203: DescriptionSurge Suppressors Quarter-wave stub 7/16 plug(m) to 7/16 jack(f), 380-512MHz; CategoryCircuit protection Surge suppressor; File Size112KB，2 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric View All

3400.41.0203 Overview

Surge Suppressors Quarter-wave stub 7/16 plug(m) to 7/16 jack(f), 380-512MHz

3400.41.0203 Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Product Category	surge suppressor
Factory packaging quantity	1
unit weight	578 g

Preview

Download Datasheet

View All

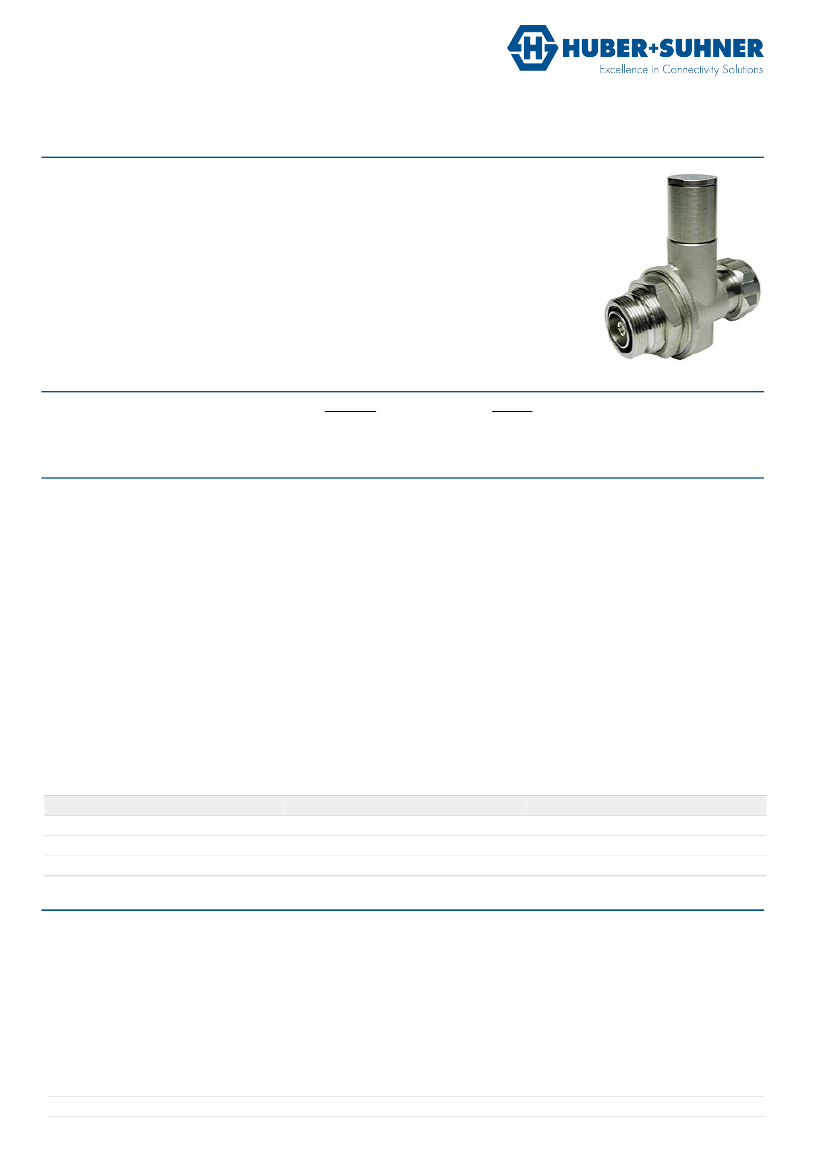

Data Sheet

EMP Protector

3400.41.0203

Description

Quarter-wave stub technology

Benefits

The protector can also be installed reversely

Compliant to IEC 61643-21

Product Configuration

Main path connectors

Mounting and grounding

Side of bulkhead

Port 1: unprotected, 7/16 plug (male) - Port 2: protected, 7/16 jack (female)

MH74 (bulkhead mounting), M8 (screw), brk (bracket)

protected side

Technical Data

Electrical Data

Impedance

Frequency range

Return loss

Insertion loss

RF CW power

PIM 3rd order

Surge current handling capability

Residual pulse energy

50 Ω

380 - 512 MHz

≥ 20 dB

≤ 0.1 dB

≤ 3000 W

-150 dBc typ.

50 multiple kA (test pulse 8/20 µs)

5 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side

Mechanical Data

Number of matings

Weight

500

580 g

Environmental Data

Operating temperature

Waterproof degree

2011/65/EC (RoHS)

-40 °C to +85 °C

IP67 (according to IEC 60529, data refer to the coupled state)

compliant

Material Data

Piece Parts

Housing

Port 1 center contact

Port 2 center contact

Material

Brass

Copper Beryllium Alloy

Surface Plating

SUCOPLATE (R) Plating

Silver Plating
