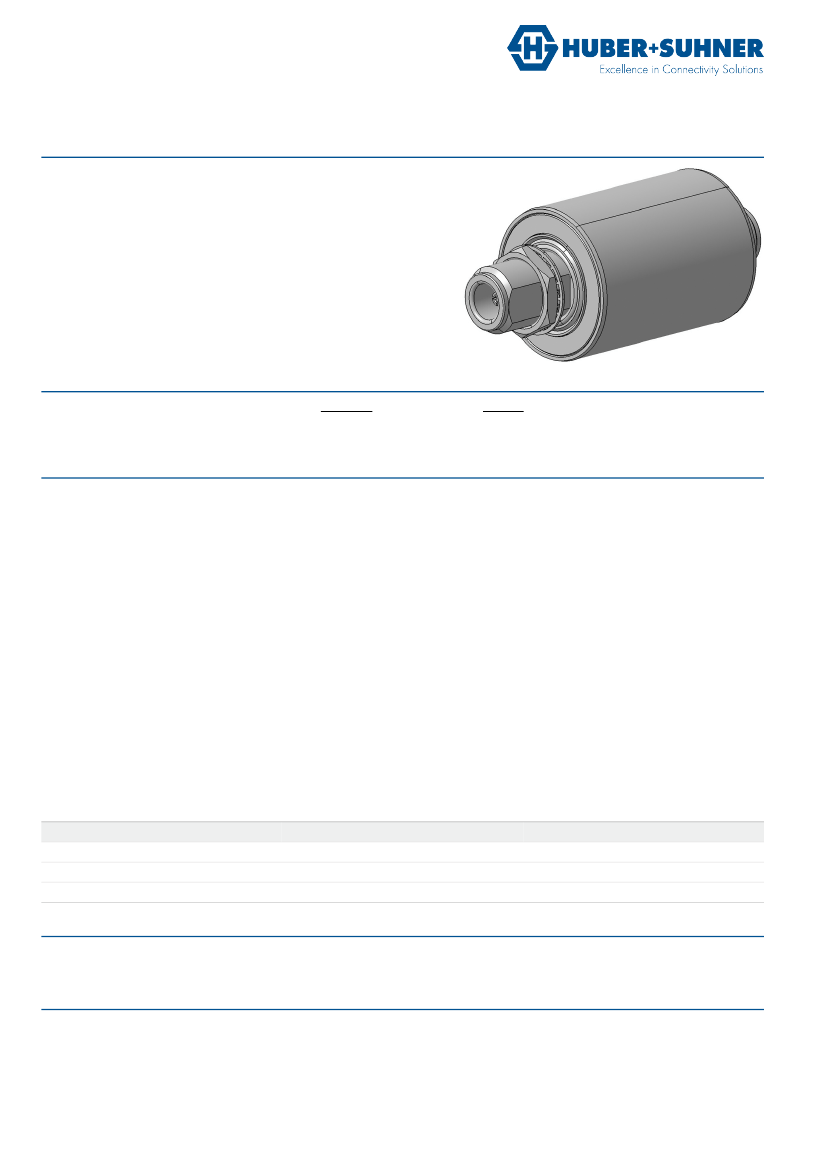

Data Sheet
EMP Protector
3403.17.0060
Description
Fine protector hybrid technology
Benefits
Broad-band design
DC continuity for remote powering
Permanently installed gas discharge tube
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Side of bulkhead
Port 1: unprotected, N jack (female) - Port 2: protected, N jack (female)
MH12 (bulkhead mounting), brk (bracket)
protected side
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
DC supply voltage
DC current
Surge current handling capability
Residual pulse energy
50 Ω
800 - 2500 MHz
≥ 26.44 dB
≤ 0.3 dB
≤ 50 W
not specified
≤6V
≤4A
20 single kA (test pulse 8/20 µs)
6 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
100
95 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EU (RoHS)
-40 °C to +85 °C
IP67 (according to IEC 60529, data refer to the coupled state)
Compliant exempt. 7(b)
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Aluminium
Copper Beryllium Alloy
Copper Beryllium Alloy
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Surface Plating
Related Documents
Outline drawing
Mounting instruction
DOU-00090632.1
DOC-0000176104
Remarks
Recommendation: if this protector is mated with connectors made of copper-alloy base material and trimetal or nickel plating the
connector area must be taped to improve long-term durability.
Document: DOC-0000244629 N / PDO G / date of publication: 12/4/2014 4:06:41 PM / uncontrolled copy
Page 1/2
Data Sheet
EMP Protector
3403.17.0060
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000244629 N / PDO G / date of publication: 12/4/2014 4:06:41 PM / uncontrolled copy
Page 2/2
