780-001 Bean Rubber Covers

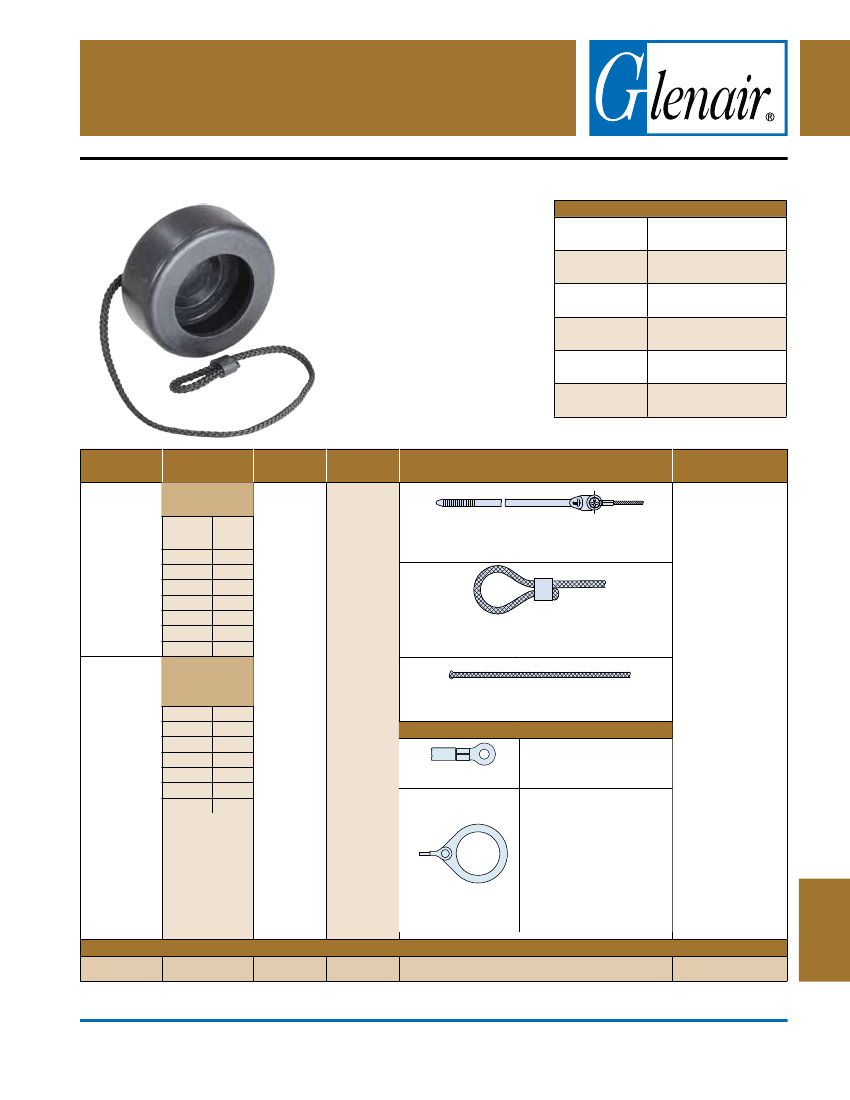

RUBBER COVERS FOR SERIES 970 CONNECTORS
These
splashproof molded rubber covers
fit Series 970 plugs and receptacles.
Braided black nylon lanyard is available
with metal rings, cable tie or slipknot for
attachment to panel or to cable. -400 to
+1200 C operating temperature.
MATERIALS
Cover
Lanyard
Cable Tie
Attachment
Ring
SBR rubber blend,
black
.094 (2.4) nylon cord,
black
Nylon, black, SST
locking tab
Stainless steel
B
Friction Sleeve Kynar
Crimp Ring
Copper alloy, tin plated
SERIES
SIZE
780-001
Plug
Covers
Size
Code
Shell
Size
18
20
24
28
32
36
40
LANYARD LANYARD
TYPE
LENGTH
Black
Nylon
Rope
HOW TO ORDER
ATTACHMENT CODE
MATERIAL
Omit for Standard
SBR Rubber
Optional
Conductive Rubber
Plug Cover
780-001
G
Length in
Inches
± 1 (25.4)
Inch
-19
-22
-25
-32
-36
-38
-44
Nylon Cable Tie, 1.77 Inch (45mm) Maximum Wire
Bundle Diameter
-WS
C
Adjustable Slip Knot with Friction Sleeve. The sleeve
can be crimped with pliers for a permanent attachment.
-SK
Receptacle
Cover
780-002
780-002
Receptacle
Covers
18
-14
20
-16
24
-22
28
-24
32
-27
36
-32
40
-36
Lanyard With No Attachment (Fused End)
-00
Ring Terminals and Solid Rings
Ring Terminal
-06
–
-09
–
-03
–
-19
-21
-23
-27
-30
-31
-33
-35
-40
-44
–
–
–
–
–
–
–
–
–
–
.125 (3.2) I.D.
.156 (3.9) I.D.
.191 (4.9) I.D.
1.140 (29.0) I.D.
1.265 (32.1) I.D.
1.453 (36.9) I.D.
1.640 (41.7) I.D.
1.875 (47.6) I.D.
1.953 (49.6) I.D.
2.077 (52.8) I.D.
2.140 (54.4) I.D.
2.406 (61.1) I.D.
2.656 (67.5) I.D.
Solid Ring
Sample Part Number
H
Printed in U.S.A.
780-001
© 2013 Glenair, Inc.
-19
G
5
-SK
CAGE Code 06324
Series 970 PowerTrip™
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
81
E-Mail: sales@glenair.com
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
780-001 Bean Rubber Covers
RUBBER COVERS
H
© 2013 Glenair, Inc.
Series 970 PowerTrip™
CAGE Code 06324
Printed in U.S.A.
Accessories
SOLID RING
TYPE B
Shell
Size
18
20
24
28
32
36
40
Type
Plug
Receptacle
Plug
Receptacle
Plug
Receptacle
Plug
Receptacle
Plug
Receptacle
Plug
Receptacle
Plug
Receptacle
TYPE A
LUG TERMINAL
NO LUG, FUSED END (00)
D
SLIP KNOT WITH CRIMP SLEEVE (SK)
ø.50
REF
LENGTH MEASURED
AT.50 DIAMETER
A
B
C
CABLE TIE (WS)
LENGTH
LENGTH IN INCHES, ± 1.00 INCH (2.54 mm.)

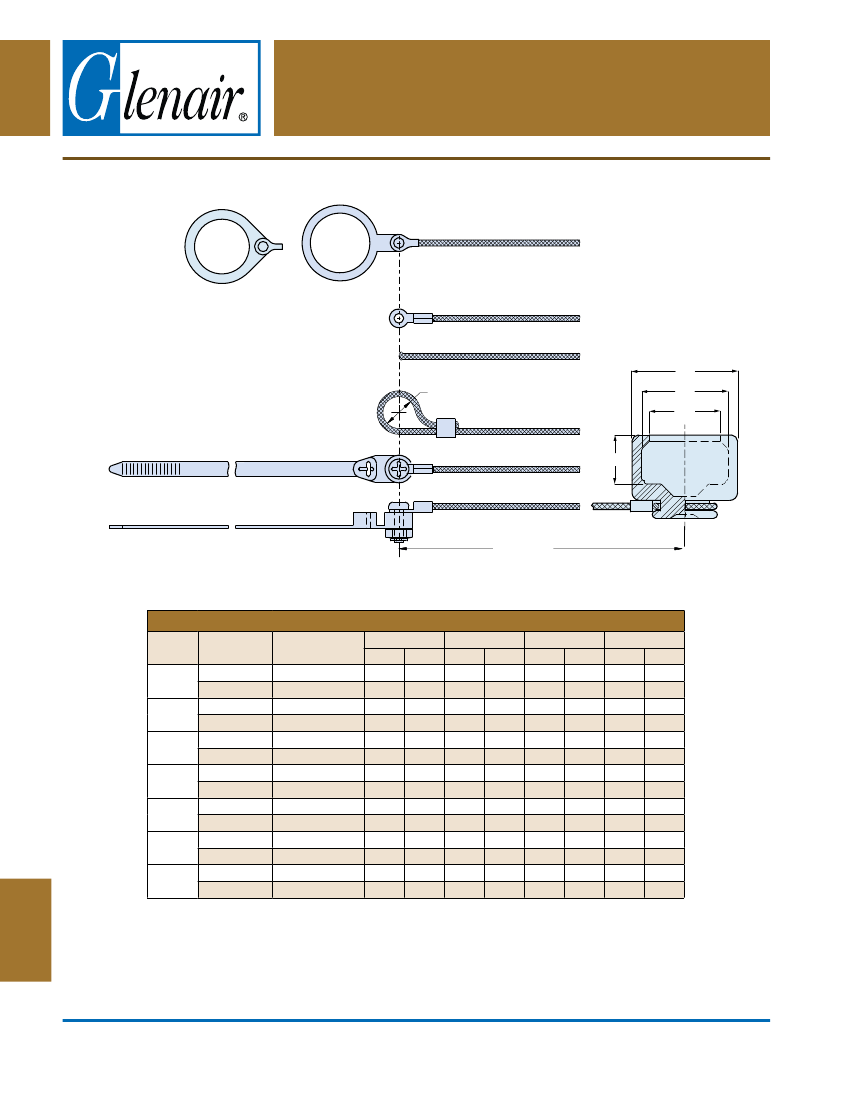

780-001 AND 780-002 DIMENSIONS
Part Number
780-001-19
780-002-13
780-001-22
780-002-16
780-001-25
780-002-22
780-001-32
780-002-24
780-001-36
780-002-27
780-001-38
780-002-32
780-001-44
780-002-36
A Dia.
In.
mm.
1.58 40.13
1.22
1.68
1.31
1.96
1.68
2.31
1.80
2.56
2.16
2.76
2.31
3.06
2.56
30.99
42.67
33.27
49.78
42.67
58.67
45.72
65.02
54.86
70.10
58.67
77.72
65.02
B Dia.
In.
mm.
1.36 34.54
1.00
1.44
1.09
1.74
1.46
2.13
1.59
2.32
1.75
2.50
2.13
2.84
2.32
25.40
36.58
27.69
44.20
37.08
54.10
40.39
58.93
44.45
63.50
54.10
72.14
58.93
C Typ.
In.
mm.
1.25 31.75
.63
1.25
.63
1.25
.63
1.25
.69
1.25
.69
1.25
.69
1.56
.69
16.00
31.75
16.00
31.75
16.00
31.75
17.53
31.75
17.53
31.75
17.53
39.62
17.53
D Dia.
In.
mm.
2.18 55.37
1.68
2.31
1.81
2.68
2.31
2.98
2.43
3.21
2.58
3.21
2.98
3.58
3.21
42.67
58.67
45.97
68.07
58.67
75.69
61.72
81.53
65.53
81.53
75.69
90.93
81.53
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
82
E-Mail: sales@glenair.com
780-001 Bean Rubber Covers
RUBBER COVERS FOR SERIES 970 CONNECTORS

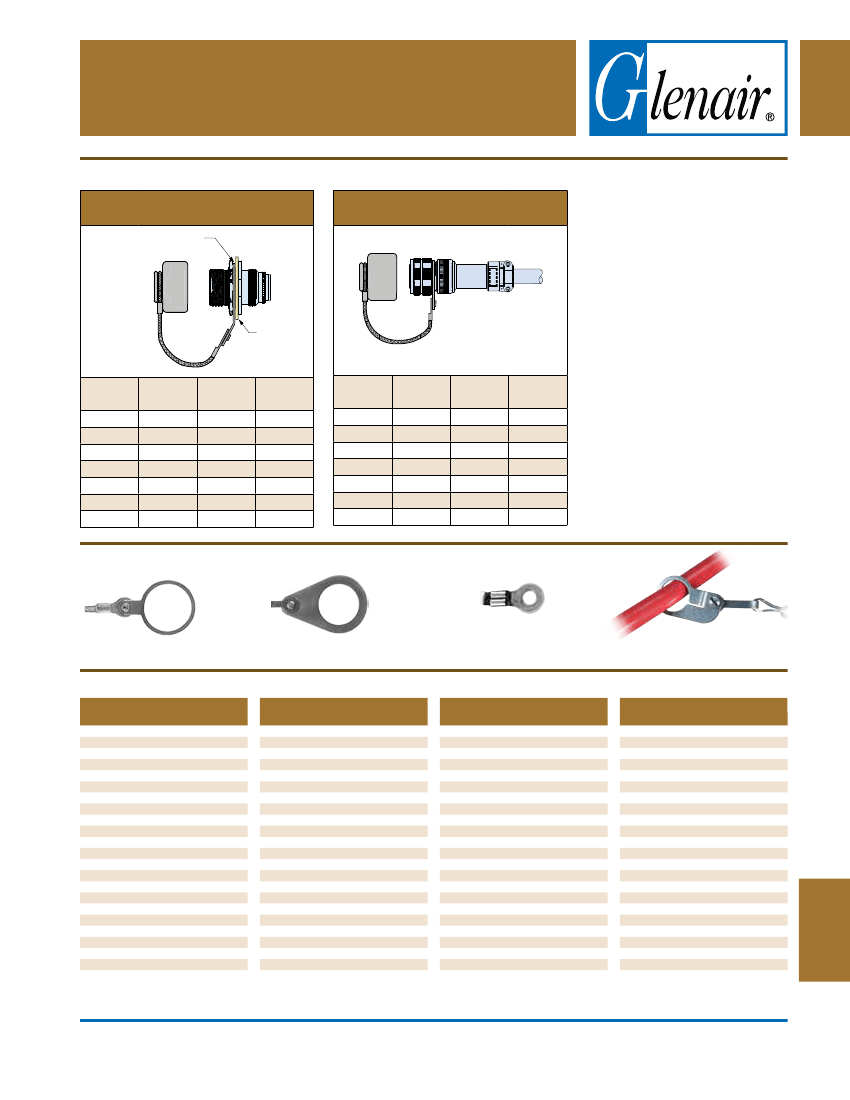

RING FOR ATTACHING UNDER
JAM NUT RECEPTACLE
ATTACHMENT RING
FITS UNDER JAM NUT
GLENAIR 12
RING FOR ATTACHING OVER
ACCESSORY THREAD
PANEL
B
Ring
Code
-19
-21
-23
-30
-33
-40
-44
Shell Size
18
20
24
28
32
36
40
Access.
Thd.
1.125
1.250
1.500
1.750
2.000
2.250
2.500
Ring I.D.
1.140
1.265
1.453
1.875
2.077
2.406
2.656
Ring
Code
-21
-23
-27
-31
-35
-40
-44
Shell Size
18
20
24
28
32
36
40
Jam Nut
Thd.
1.250
1.4375
1.625
1.9375
2.125
2.375
2.625
Ring I.D.
1.265
1.453
1.640
1.953
2.140
2.406
2.656
RING STYLES
Style A Solid Ring
Style B Solid Ring
Ring Terminal
Split Ring
RING REFERENCE TABLE (IN ASCENDING DIAMETER ORDER)
Code Ring Type
00
06
01
09
05
02
03
04
07
095
100
50
08
52
101
102
10
54
103
104
12
56
No Fitting
Ring terminal
Ring terminal
Ring terminal
Ring terminal
Ring terminal
Ring terminal
Ring terminal
Ring terminal
Solid Ring Style A
Solid Ring Style A
Split Ring
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
-
.125
.145
.156
.167
.182
.191
.197
.218
.312
.391
.425
.468
.485
.516
.583
.593
.640
.641
.708
.718
.750
I.D.
In. mm.
-
3.18
3.68
3.96
4.24
4.62
4.85
5.00
5.54
7.92
9.93
10.80
11.89
12.32
13.11
14.81
15.06
16.26
16.28
17.98
18.24
19.05
Code Ring Type
13
105
205
14
15
58
106
206
16
17
60
107
207
18
62
64
19
108
308
208
20
66
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
.765
.766
.788
.844
.890
.890
.896
.907
.968
1.015
1.015
1.016
1.025
1.093
1.095
1.130
1.140
1.141
1.188
1.203
1.203
1.250
I.D.
In. mm.
19.43
19.46
20.02
21.44
22.61
22.61
22.76
23.04
24.59
25.78
25.78
25.81
26.04
27.76
27.81
28.70
28.96
28.98
30.18
30.56
30.56
31.75
Code Ring Type
21
109
209
22
68
70
110
210
23
24
72
111
211
25
74
27
112
28
76
29
113
213
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
1.265
1.266
1.312
1.343
1.350
1.375
1.391
1.438
1.453
1.484
1.485
1.521
1.536
1.577
1.625
1.640
1.641
1.687
1.750
1.765
1.766
1.812
I.D.
In. mm.
32.13
32.16
33.32
34.11
34.29
34.93
35.33
36.53
36.91
37.69
37.72
38.63
39.01
40.06
41.28
41.66
41.68
42.85
44.45
44.83
44.86
46.02
Code Ring Type
78
30
114
214
31
32
80
82
33
115
35
36
84
86
116
40
88
117
90
44
92
48
94
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style B
Solid Ring Style A
Solid Ring Style B
Solid Ring Style B
Split Ring
Split Ring
Solid Ring Style A
Solid Ring Style B
Split Ring
Solid Ring Style A
Split Ring
Solid Ring Style B
Split Ring
Solid Ring Style B
Split Ring
1.875
1.890
1.891
1.938
1.953
1.968
1.980
2.060
2.077
2.078
2.140
2.187
2.235
2.310
2.406
2.406
2.475
2.510
2.655
2.656
2.810
3.031
3.045
I.D.
In. mm.
47.63
48.01
48.03
49.23
49.61
49.99
50.29
52.32
52.76
52.78
54.36
55.55
56.77
58.67
61.11
61.11
62.87
63.75
67.44
67.46
71.37
76.99
77.34
H
© 2013 Glenair, Inc.
Series 970 PowerTrip™
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
83
E-Mail: sales@glenair.com
Accessories
Series 970 PowerTrip™ Connectors and Accessories
Accessories
